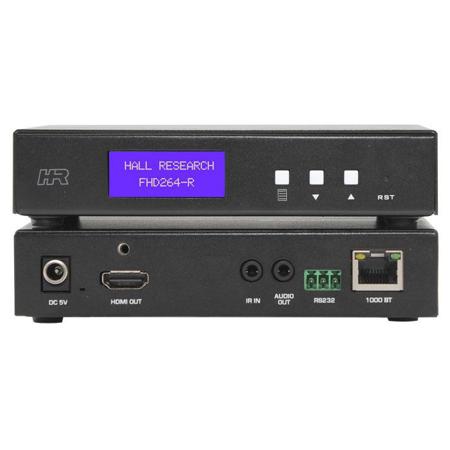

Hall Research FHD264-R AV and Control over IP Receiver with Extracted Audio, RS232 over IP & IR

Bring professional-grade video distribution to your network with the Hall Research FHD264-R AV and Control over IP Receiver. This sophisticated device is part of the FHD264 family, which leverages advanced video encoding techniques to distribute up to 64 Full-HD video signals across hundreds of displays via a 1 Gigabit LAN. The FHD264-R is not just a receiver; it's a comprehensive solution for extending Serial RS-232 communications, IR remote signals, and extracting HDMI audio, ensuring high-tech versatility for a multitude of professional settings.

With its innovative design, the FHD264-R boasts an array of input and output options, including HDMI, IR, RS232, and 422/485, making it an ideal choice for complex audio and video applications. Whether you're setting up for live events, managing broadcast operations, or outfitting a post-production studio, this receiver provides the sophisticated technology you need to maintain a cutting-edge environment.

The FHD264-R features a convenient 3.5mm stereo jack for extracted HDMI audio, both on the sender and receiver, enhancing the audio management capabilities of your setup. A user-friendly two-line front panel LCD allows for effortless configuration and monitoring of critical parameters such as IP settings, multicast group selection, and device naming, simplifying the installation process and eliminating the typical network configuration challenges.

Serial over IP (SoIP) mode is supported by the RS-232 serial ports on each unit, enabling direct control of peripheral equipment via third-party IP controllers. For instance, you can remotely manage a video projector's power settings through telnet commands sent to the receiver, adding a layer of convenience and control to your operations.

The FHD264-R supports IEEE 802.3af PoE (Power over Ethernet), which means that when connected to a PoE-enabled network switch, there's no need for a separate power supply. However, a power supply is included for scenarios where PoE is not available. Optional rack mount hardware is also offered, allowing for efficient organization of up to 12 senders within a 4U rack space.

This receiver is not only advanced in its technical capabilities but also in its ease of use. Switching between senders can be accomplished through various methods, including the front panel LCD, the supplied IR remote control, the unit's WebGUI, telnet commands, the free Windows PC application DVM Manager Tool, or the CNT-IP-264 Global Video-over-IP Controller (sold separately).

The included IR remote controller facilitates easy source switching in environments such as sports bars, while the IR signal extension feature allows users to control source devices from the receiver's location. Moreover, the FHD264-R offers fail-safe automatic video routing and redundancy, ensuring continuous operation by automatically switching to an alternate channel if the current one loses video, and reverting back once the video is restored.

The Hall Research FHD264-R AV and Control over IP Receiver with Extracted Audio, RS232 over IP & IR is a testament to the brand's commitment to producing high-quality, innovative audio and video equipment. Its versatility and professional-grade features make it a superior choice for anyone looking to enhance their AV and control systems over IP networks.
