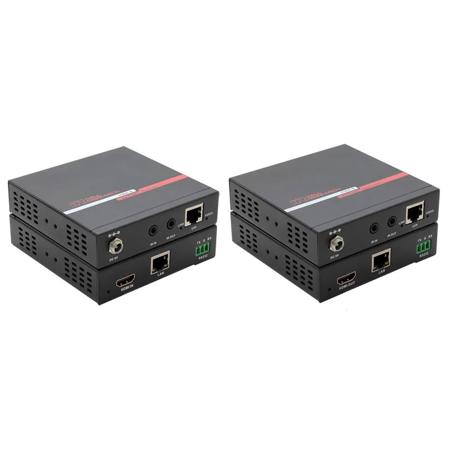

Hall Research HBX HDMI Extender with Ultra-HD AV, IR, RS232 and Ethernet (Sender + Receiver)

SKU: HRHBX MFR: HBX
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal with this Hall Research extender, supporting up to 4K resolution!
  • Enjoy seamless Ultra-HD AV transmission with this HDMI extender, perfect for home or office.
  • Control your devices remotely using the built-in IR and RS232 extension capabilities.
  • This HDMI extender supports Ethernet, allowing for versatile network connectivity options.
  • Experience reliable performance with HDCP handshake, ensuring compatibility with various devices.
  • Get peace of mind with a 3-year warranty, ensuring your HDMI extender is protected from defects.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research HBX Specifications

Video
  • Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal type

    TMDS

  • Resolutions

    DVI signal - VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal - 480i through 1080p
    Digital Cinema - 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60m

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD
    Master Audio (32-192 kHz sample rate)

Other Signals

Jump to...
  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru CEC for Consumer Electronics Control compatible devices

  • RS232

    Bidirectional (full-duplex) any baud rate up to 115,200

  • Ethernet

    100BaseT Ethernet LAN

  • IR

    Extended in both directions. Carrier modulation range from 30 kHz to 60 kHz

General

Jump to...
  • Power Supply

    100 VAC to 240 VAC, 50-60Hz, external; 5 VDC, 2A, regulated

  • Power

    Sender & Receiver: 10W maximum

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating humidity

    10% to 90%, non-condensing

  • Storage humidity

    10% to 90%, non-condensing

  • Cooling

    Convection

  • Mounting

    End plates with hole for surface mounting

  • Enclosure type

    Metal (Aluminum ends, Aluminum Extrusion)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (HxWxD)

    1 x 3.9 x 3.9" (2.54 x 9.91 x 9.91cm)

  • Weight

    Sender: 9.3 oz (263.65g)
    Receiver: 10 oz (283.49g)

About Hall Research HBX

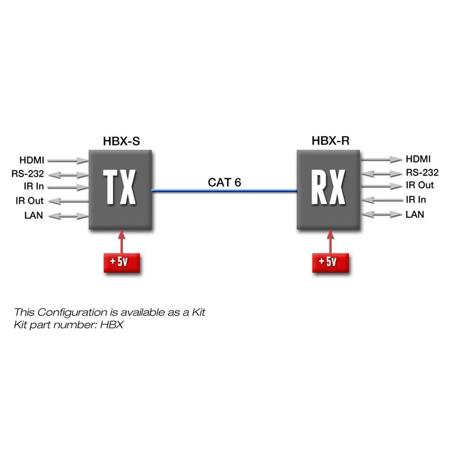

It's time to elevate your audio-visual experience with the HBX HDMI Extender kit, a cutting-edge solution for extending HDMI, RS-232, IR, and Ethernet (100BaseT) signals. This kit, featuring a compact Sender (HBX-S) and a matching Receiver (HBX-R), is designed to transmit your signals up to an impressive distance of 100 meters (328 feet) using just a single Cat6 cable.

Designed to support all PC and HDTV resolutions, this HDMI extender kit is capable of delivering up to 4K at 30 Hz 4:4:4 or 4K at 60 Hz 4:2:0, ensuring you enjoy high-definition visuals without compromise. The IR extension, preserving the modulation (carrier) frequency, offers compatibility with most standards, making this kit a versatile addition to your AV setup.

The HBX HDMI Extender kit comes complete with a universal 5V power supply for both the Sender and the Receiver, ensuring a seamless operation. Moreover, the kit includes IR emitter and IR detector cables, providing you with everything you need for an enhanced, high-quality audio-visual experience.

Whether you're a professional looking to extend your AV signals or a home user seeking a high-quality viewing experience, the HBX HDMI Extender kit is a reliable, high-performance solution.

Hall Research HBX Features

  • Fully Compliant with HDBaseT standard
  • Supports virtually all HDMI and DVI resolutions including 4K UHD
  • Extends, Video, Audio, RS-232, IR and Ethernet
  • Supports extension to 100 m (330 ft)
  • Fully isolates grounds between TX and RX sides
  • Compact, Rugged, Reliable and Economical
  • Plug and play, no configuration needed
  • Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your HDMI signal with this Hall Research extender, supporting up to 4K resolution!
  • Enjoy seamless Ultra-HD AV transmission with this HDMI extender, perfect for home or office.
  • Control your devices remotely using the built-in IR and RS232 extension capabilities.
  • This HDMI extender supports Ethernet, allowing for versatile network connectivity options.
  • Experience reliable performance with HDCP handshake, ensuring compatibility with various devices.
  • Get peace of mind with a 3-year warranty, ensuring your HDMI extender is protected from defects.

What's in the box:

  • Hall Research HBX-S Sender
  • HBX-R Receiver
  • Wideband IR Emitter
  • Wideband IR Detector
  • 5VDC Locking Power Adapter with International AC Plug Kit
  • Phoenix Connector
  • User Manual
  • Hall Research 3 Year Limited Warranty
