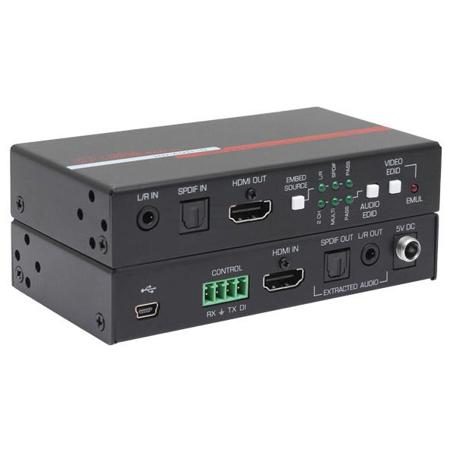

Hall Research HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor

SKU: HRHDAUDIO MFR: HD-AUD-IO
Earn VIP Reward Points

Key Features

  • Experience superior video with HDMI 2.0b support, delivering stunning 4K 60Hz 4:4:4 resolution.
  • Effortlessly manage audio with LPCM 2CH and multi-channel digital audio extraction and insertion.
  • Ensure broad compatibility with DVI (single link) and HDCP 2.2 standards for diverse setups.
  • Integrate seamlessly into professional systems using the convenient RS-232 control port.
  • Enjoy robust durability with a metal (steel) enclosure, designed for long-lasting performance.
  • Simplify your setup with included rack mounting brackets and a versatile universal power supply.
See More Product Details
Temporarily On Backorder?Expected Availability: 12/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hall Research HD-AUD-IO Specifications

  • Video

    Standards: DVI (single link)
    HDMI 1.4 and 2.0b video specifications including 12 bit color depth, 3D video
    HDCP 2.2

    Connectors: (1) HDMI Input
    (1) HDMI Output

    Resolutions: DVI signal - VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal 480p through 4K 60 Hz 4:4:4

  • Audio

    Formats: LPCM 2CH Audio (32, 44.1 and 48 KHz sample rate)
    Digital Audio multi-channel 2.1, 5.1, 7.1

  • Other Signals

    RS-232: (1) RX, TX and GND on Terminal Strip
    RS-232 Baud Rate: 115200, N, 8, 1

    Digital Input: Dry Contact, connect to ground to trigger configured action

  • Power

    100 VAC to 240 VAC, 47-63 Hz, External; 5 VDC 1.0 ADC

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating humidity

    10% to 90%, non-condensing

  • Storage humidity

    10% to 90%, non-condensing

  • Current Draw

    5 VDC - 85 mADC (typical), 200 mADC ( fully loaded)

  • Cooling

    Convection

  • Enclosure type

    Metal (Steel)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (estimate)

  • Dimensions (HxWxD)

    0.9 x 4.47 x 2.53" (2.29 x 11.35 x 6.43cm)

  • Weight

    0.5 lbs (0.23kg)

  • UPC Code

    608415712138

About Hall Research HD-AUD-IO

How the HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor revolutionizes your audio and video experience is through its high-definition capabilities and versatile functionality. This durable and high-quality device is a comprehensive HDMI audio manager, adept at both extracting audio from (de-embedding) and inserting audio into (embedding) an HDMI video signal.

The HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor is equipped with one HDMI input and a corresponding HDMI output. It efficiently extracts the HDMI input audio signal to both 2-channel L/R analog and Digital SPDIF (TOSLINK), providing a clear and high-quality output. This reliable device also offers two audio inputs, both analog and digital, giving users the flexibility to select the audio to be embedded in the HDMI output. This could be the original HDMI audio (pass-thru), SPDIF digital, or 3.5mm L/R analog.

One of the standout features of this compact device is its advanced EDID management, which allows users to control both the video and audio parts of the EDID. The EDID presented to the video source connected to the HDMI input can either pass from the downstream device or emulate an EDID from internal memory. The device also has the capability to "Learn" the EDID connected to its HDMI output.

Supporting a video bandwidth of 18 Gbps and resolutions up to 4K at 60 Hz 4:4:4 with HDR, the HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor ensures a top-notch viewing experience. It supports HDCP 2.2 as well as HDCP 1.4 if needed. This user-friendly device also has the unique ability to generate and output a blank HDMI signal with audio embedded, even if there is no HDMI input. This feature, often referred to as "HDMI Audio Bridging", is a convenient way to distribute audio-only signals over an HDMI network.

Additionally, the HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor features a configurable digital input terminal that can mute the audio and/or video, providing users with more control over their audio and video systems. This versatile device is an excellent choice for users who need to connect multiple devices to their audio and video system, making it a valuable addition to any home or professional setup.

Hall Research HD-AUD-IO Features

  • Supports 4K/60 4:4:4, HDR, HDCP 2.2 & 1.4
  • 18 Gbps bandwidth for compatibility with HDMI 2.0b
  • Backwards compatible to HDMI 1.4 and DVI Specifications
  • Supports multi-channel digital and 2-channel analog audio
  • Extracts both LR analog and digital audio embedded in the HDMI input
  • Embeds either LR analog or digital audio into the HDMI output
  • Generates HDMI output with embedded audio with no HDMI input
  • EDID management
  • Can pass-thru or emulate EDID
  • RS-232 controllable
  • Configurable digital input for muting audio and/or video

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior video with HDMI 2.0b support, delivering stunning 4K 60Hz 4:4:4 resolution.
  • Effortlessly manage audio with LPCM 2CH and multi-channel digital audio extraction and insertion.
  • Ensure broad compatibility with DVI (single link) and HDCP 2.2 standards for diverse setups.
  • Integrate seamlessly into professional systems using the convenient RS-232 control port.
  • Enjoy robust durability with a metal (steel) enclosure, designed for long-lasting performance.
  • Simplify your setup with included rack mounting brackets and a versatile universal power supply.

What's in the box:

  • Hall Research HD-AUD-IO HDMI 2.0 Audio Inserter & Extractor
  • 2x Rack Mounting Brackets
  • 4 Position Terminal Block
  • 5V Power Supply with Locking Connector
  • 4x Power Supply Plug Universal Adapters
  • Web Documentation Card
  • Hall Research 3 Year Limited Warranty
