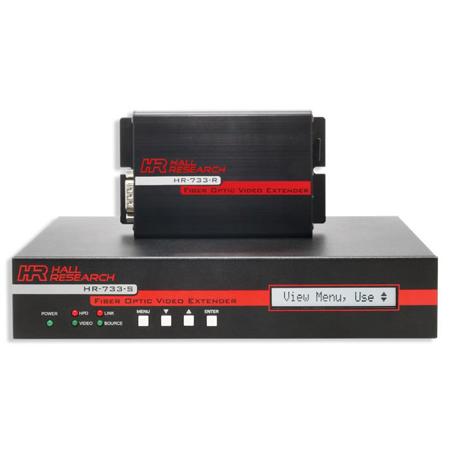

Hall Research HR-733 HDMI/DVI + VGA + Audio + RS-232 Over Fiber Switcher Sender

SKU: HRHR733S MFR: HR-733-S
Earn VIP Reward Points

Key Features

  • Easily switch between HDMI, DVI, and VGA sources with this versatile video switcher.
  • Enjoy reliable connection with fiber optic extension, ensuring crystal-clear video quality.
  • Supports up to 1080p resolution for stunning, high-definition video on your display.
  • Perfect for presentations, effortlessly switch between laptops & other video sources.
  • Low latency performance ensures seamless transitions, ideal for live streaming events.
  • This multi-platform support video switch is easy to set up with included accessories.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research HR-733 Specifications

  • Video Inputs

    2x HDMI or DVI, 1x HD15 (VGA or Component Video)

  • Supported Resolutions

    PC from VGA to WUXGA, HDTV from 480i to 1080p

  • Audio Inputs

    3.5mm stereo, S/PDIF (TOSLINK)

  • Optical Wavelength

    780nm to 980nm

  • Optical Cable

    Simplex (only 1 fiber) Multi-Mode. 50/125 um OM2 or OM3

  • Power

    5V DC at 2.6A

  • MTBF

    90000 hours

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -40 to 185 deg. C / -40 to 365 deg. F

  • Enclosure

    Steel and Aluminum

  • Dimensions (H x W x D)

    1.66 x 8.2 x 7.83" / 4.22 x 20.83 x 19.89cm

  • Weight

    2.73lbs / 1.24kg

About Hall Research HR-733

An advanced solution for high-quality audio and video transmission, the HR-733 HDMI/DVI + VGA + Audio + RS-232 Over Fiber Switcher Sender is designed to extend uncompressed HDMI video, VGA, audio, and bi-directional RS-232 over a distance of up to 1000 meters using a single multi-mode fiber optic cable. This versatile device is equipped to accept two HDMI or DVI inputs and one VGA or YPbPr input, along with corresponding audio via a 3.5mm L/R stereo or S/PDIF TOSLINK.

The HR-733 stands out with its ability to convert analog input to HDMI, automatically scaling it to match the native resolution of the remote display. Connection to the display is straightforward, requiring only an HDMI cable, with DVI connections facilitated through an adapter cable.

Fully HDCP compliant, this switcher sender supports EDID pass-through from the remote display to the selected source, and is compatible with virtually all PC and HDTV resolutions. The HR-733 also extends a bi-directional data channel (CEC or RS-232 Serial) in conjunction with the video and audio, with the RS-232 port also serving to control the Sender for input selection, baud-rate, and more.

User-friendly and intuitive, the HR-733 features a high-contrast alphanumeric LCD front panel for easy system setup and control. It offers advanced features such as automatic scaling of the analog video input, diagnostic messages on the front panel LCD, audio delay of the analog input to correct lip-sync issues, support for CEC data channel of HDMI, and 3D deep-color HDMI 1.4 support. This makes the HR-733 HDMI/DVI + VGA + Audio + RS-232 Over Fiber Switcher Sender an ideal choice for those seeking superior performance in audio and video transmission.

Hall Research HR-733 Features

  • Transmit HDMI, VGA+Audio andRS-232 up to 1000m over multi-mode fiber
  • Converts and scales VGA or Component video and audio to HDMI
  • 3 selectable video inputs (2 HDMI/DVI and 1 VGA/YPbPr with Audio)
  • RS-232 pass-thru to remote & control of the input source selection and setup
  • Uses a single (simplex) low cost multi-mode SC fiber
  • Safety interlock does not turn on high power fiber LED drivers unless fiber-optic cable is plugged in at both ends
  • Eco friendly design turns off parts of circuit when they are not in use
  • Front panel LCD display
  • HDCP Compliant and support for HDMI 1.4 3D deep color format

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Easily switch between HDMI, DVI, and VGA sources with this versatile video switcher.
  • Enjoy reliable connection with fiber optic extension, ensuring crystal-clear video quality.
  • Supports up to 1080p resolution for stunning, high-definition video on your display.
  • Perfect for presentations, effortlessly switch between laptops & other video sources.
  • Low latency performance ensures seamless transitions, ideal for live streaming events.
  • This multi-platform support video switch is easy to set up with included accessories.

What's in the box:

  • Hall Research HR-733 HDMI/DVI + VGA + Audio + RS-232 Over Fiber Extender Switcher Sender
  • Hall Research 3 Year Limited Warranty
