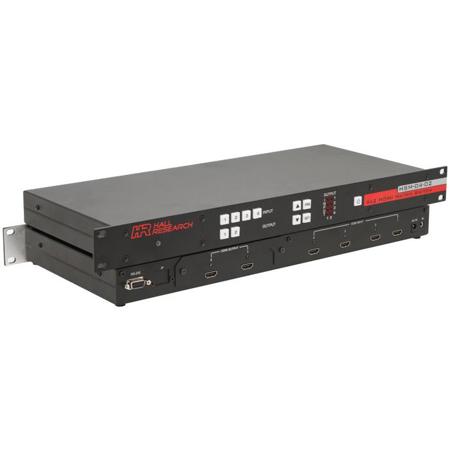

Hall Research 1RU 4x2 HDMI Matrix Switch with RS232 Control

SKU: HRHSM0402 MFR: HSM-04-02
Earn VIP Reward Points

Key Features

  • Enjoy seamless HDMI matrix switching between four sources to two displays.
  • Supports up to 1080p HD resolutions with deep color for a vivid display experience.
  • Effortlessly control your HDMI matrix via RS232, IR remote, or front panel buttons.
  • Perfect for home theaters or conference rooms needing versatile video routing.
  • This HDMI video switcher supports PCM, Dolby, and DTS audio formats for great sound.
  • Reliable HDMI connections ensure stable performance with locking HDMI cables.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research HDMI Matrix Switch Specifications

  • Video Standards

    HDMI 1.3 and 1.4 (for color-depth and 3D), DVI (Single Link)

  • Video Signal Type

    TMDS Video, DDC EDID (0 to 5 v TTL)

  • Video Connectors

    HDMI Type A (Female) with Lock

  • Video Data Rate

    2.25Gbps

  • Support Colors

    RGB, YCbCr 4:4:4, YCbCr 4:2:2, xvYCC

  • Max Cable Length

    From source 15m / 49.21' at any resolution or color depth, to display 15m / 49.21' 1080p, or 7.5m / 24.61' at deep color

  • HD Resolutions

    480i, 480p, 576i, 576p,720p, 1080i, 1080p 8 or 12 bits per channel (24 or 36 bits aggregate)

  • PC Resolutions

    VGA through WUXGA

  • Audio Formats

    PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz
    External: 5 VDC, 6 A, regulated

  • Nominal Power

    Fully loaded, 17 watts max (3.4 amps at 5V)

  • Cooling

    Convection

  • Mounting

    Front panel 1RU 19" Rack mountable

  • Enclosure Type

    Metal

  • Recommended Cable

    Locking High-Performance HDMI cables

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90000 hours

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Humidity

    Operating: 10% to 90%, non-condensing
    Storage: 10% to 90%, non-condensing

  • Rack Height

    1RU

  • Dimensions (H x W x D)

    1.69 x 17.3 x 7.68" / 4.29 x 43.94 x 19.51cm
    F/P Width: 19" / 48.26cm

  • Weight

    9lbs / 4.08kg

About Hall Research HDMI Matrix Switch

You can elevate your multimedia experience with the 1RU 4x2 HDMI Matrix Switch with RS232 Control. This high-quality, durable device supports HDCP, deep color, and multi-channel digital audio of up to 7.1 channels, making it a versatile addition to your home theater, conference room, or multimedia presentation system.

The HDMI Matrix Switch is designed to work seamlessly with any combination of DVI (PC) or HDMI (HDTV) sources and displays. It employs Silicon Image chipsets, capable of performing color depth conversion independently for each output. This ensures the most vibrant and rich color display on each output, regardless of whether some outputs are connected to displays that only support HDMI 1.2 and others to HDMI 1.3.

The unit cleverly reports as supporting HDMI 1.3 to each input source, ensuring the deepest color depth possible. With EDID management and fast switching, this user-friendly HDMI Matrix Switch guarantees a smooth and efficient operation.

Despite its low profile, taking up only 1 RU, this HDMI Matrix Switch is packed with features. It offers PRESET Save and Recall functions, IR remote, and comprehensive front panel controls, making it a reliable and convenient solution for your multimedia needs.

Control the switch remotely or from a distance using the RS232 control, ideal for installations where the switch is not easily accessible. This HDMI Matrix Switch is not just a device, but a gateway to an enhanced multimedia experience.

Hall Research HDMI Matrix Switch Features

  • Compatible with HDMI version 1.3 and 1.4 and DVI
  • Supports a wide range of HDTV (HDMI) and PC (DVI) resolutions from 480i to 1080p and VGA to WUXGA
  • 3D HDMI compatible
  • Supports lossless digital audio: both 5.1 and 7.1 Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Preset Save and Recall of commonly used routing patterns
  • EDID management
  • Output video signals are de-skewed and recreated with perfect timing and are jitter free
  • Front panel IR sensor and rear panel connector for optional IR detector cable
  • Uses Silicon Image chipsets
  • Supports HDMI cables up to 15 meters (50 feet) long on its input and drive cables to 15 meters on the outputs
  • Includes RS-232 port with Hall Research's Genesis Control Command Set (GCCS)
  • 1RU high compact & rugged rack mountable metal enclosure

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enjoy seamless HDMI matrix switching between four sources to two displays.
  • Supports up to 1080p HD resolutions with deep color for a vivid display experience.
  • Effortlessly control your HDMI matrix via RS232, IR remote, or front panel buttons.
  • Perfect for home theaters or conference rooms needing versatile video routing.
  • This HDMI video switcher supports PCM, Dolby, and DTS audio formats for great sound.
  • Reliable HDMI connections ensure stable performance with locking HDMI cables.

What's in the box:

  • Hall Research 1RU 4x2 HDMI Matrix Switch with RS232 Control
  • 5V DC Universal Power Supply
  • IEC320 Power Cord
  • IR Remote Control
  • User's Manual
  • Hall Research 2 Year Limited Warranty
