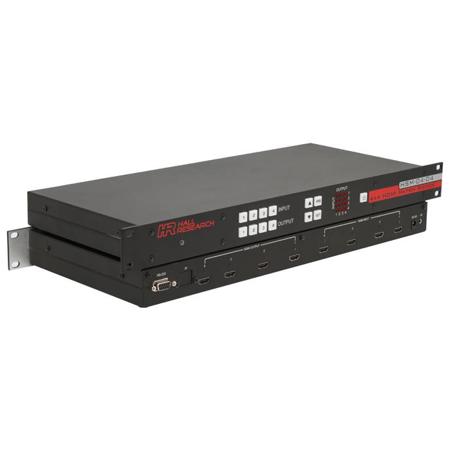

Hall Research 1RU 4x4 HDMI Matrix Switch with RS232 Control

SKU: HRHSM0404 MFR: HSM-04-04
Earn VIP Reward Points

Key Features

  • Effortlessly switch HDMI sources with this 4x4 HDMI matrix switcher for streamlined control.
  • Achieve reliable HDMI video distribution across four displays with this robust matrix.
  • Enjoy wide compatibility with HDMI 1.3 and 1.4, supporting resolutions up to WUXGA.
  • Control your video setup via RS232, offering seamless integration and easy automation.
  • This video switcher supports PCM, Dolby, and DTS audio formats for immersive sound.
  • Ensure high-performance with locking HDMI cables, maintaining a secure, stable connection.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research HDMI Matrix Switch Specifications

  • Video Standards

    HDMI 1.3 and 1.4 (for color-depth and 3D), DVI (Single Link)

  • Video Signal Type

    TMDS Video, DDC EDID (0 to 5 v TTL)

  • Video Connectors

    HDMI Type A (Female) with Lock

  • Video Data Rate

    2.25Gbps

  • Support Colors

    RGB, YCbCr 4:4:4, YCbCr 4:2:2, xvYCC

  • Max Cable Length

    From source 15m / 49.21' at any resolution or color depth, to display 15m / 49.21' 1080p, or 7.5m / 24.61' at deep color

  • HD Resolutions

    480i, 480p, 576i, 576p,720p, 1080i, 1080p 8 or 12 bits per channel (24 or 36 bits aggregate)

  • PC Resolutions

    VGA through WUXGA

  • Audio Formats

    PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz
    External: 5 VDC, 6 A, regulated

  • Nominal Power

    Fully loaded, 17 watts max (3.4 amps at 5V)

  • Cooling

    Convection

  • Mounting

    Front panel 1RU 19" Rack mountable

  • Enclosure Type

    Metal

  • Recommended Cable

    Locking High-Performance HDMI cables

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90000 hours

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Humidity

    Operating: 10% to 90%, non-condensing
    Storage: 10% to 90%, non-condensing

  • Rack Height

    1RU

  • Dimensions (H x W x D)

    1.69 x 17.3 x 7.68" / 4.29 x 43.94 x 19.51cm
    F/P Width: 19" / 48.26cm

  • Weight

    9lbs / 4.08kg

About Hall Research HDMI Matrix Switch

Become the master of your multimedia setup with the 1RU 4x4 HDMI Matrix Switch with RS232 Control. This durable and high-quality device is designed to seamlessly switch between up to four HDMI input sources, distributing them to four HDMI output displays. Its compact, rack-mountable design makes it an ideal choice for installations where space is at a premium, yet multiple displays are required.

This versatile HDMI matrix switch supports HDCP, deep color, and multi-channel digital audio, accommodating up to 7.1 channels for an immersive audio experience. It's compatible with any combination of DVI (PC) or HDMI (HDTV) sources and displays, offering you a wide range of connectivity options.

Powered by Silicon Image chipsets, this reliable switch is capable of color depth conversion independently for each output. This ensures the highest number of colors are displayed on each output, providing you with vibrant, high-definition visuals. Whether some outputs are connected to displays that only support HDMI 1.2 and others to HDMI 1.3, the unit will report as supporting HDMI 1.3 to each input source, ensuring the deepest color depth possible.

The 1RU 4x4 HDMI Matrix Switch also features EDID management and fast switching, enhancing its performance and user-friendliness. Its low profile design (only 1 RU) makes it an unobtrusive addition to your setup. With PRESET Save and Recall functions, an IR remote, and comprehensive front panel controls, this HDMI matrix switch is easy to operate, making it ideal for home theater systems, conference rooms, and multimedia presentation systems.

Control and customize the switcher's settings remotely with the RS-232 control interface. This feature is particularly useful for integrating the switcher into a larger system or for controlling it from a distance. Manufactured by Hall Research, a reputable brand known for producing high-quality audio and video equipment, this HDMI matrix switch is a reliable choice for your multimedia needs.

Hall Research HDMI Matrix Switch Features

  • Compatible with HDMI version 1.3 and 1.4 and DVI
  • Supports a wide range of HDTV (HDMI) and PC (DVI) resolutions from 480i to 1080p and VGA to WUXGA
  • 3D HDMI compatible
  • Supports lossless digital audio: both 5.1 and 7.1 Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Preset Save and Recall of commonly used routing patterns
  • EDID management
  • Output video signals are de-skewed and recreated with perfect timing and are jitter free
  • Front panel IR sensor and rear panel connector for optional IR detector cable
  • Supports HDMI cables up to 15 meters (50 feet) long on its input and drive cables to 15 meters on the outputs
  • Includes RS-232 port with Hall Research's Genesis Control Command Set (GCCS)
  • 1RU high compact & rugged rack mountable metal enclosure
  • Uses Silicon Image (founding member of HDMI) Chipsets

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Effortlessly switch HDMI sources with this 4x4 HDMI matrix switcher for streamlined control.
  • Achieve reliable HDMI video distribution across four displays with this robust matrix.
  • Enjoy wide compatibility with HDMI 1.3 and 1.4, supporting resolutions up to WUXGA.
  • Control your video setup via RS232, offering seamless integration and easy automation.
  • This video switcher supports PCM, Dolby, and DTS audio formats for immersive sound.
  • Ensure high-performance with locking HDMI cables, maintaining a secure, stable connection.

What's in the box:

  • Hall Research 1RU 4x4 HDMI Matrix Switch with RS232 Control
  • 5V DC Universal Power Supply
  • IEC320 Power Cord
  • IR Remote Control
  • User's Manual
  • Hall Research 2 Year Limited Warranty
