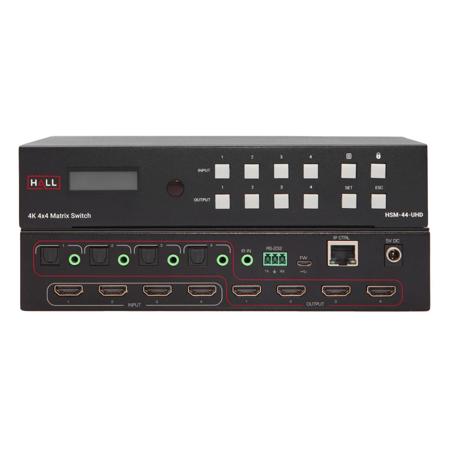

Hall Research 4K HDMI 4x4 Matrix Video Switcher, Black

SKU: HRHSM44UHD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum resolution supported by the 4K HDMI 4x4 Matrix Video Switcher?

The 4K HDMI 4x4 Matrix Video Switcher supports HDMI resolutions up to 4K at 60Hz4:4:4.

What audio standards is the 4K HDMI 4x4 Matrix Video Switcher compatible with?

The switcher is compatible with a range of audio standards, including PCM, Dolby, DTS, and HD.

What is the purpose of the two-line character LCD on the front panel of the 4K HDMI 4x4 Matrix Video Switcher?

The two-line character LCD on the front panel displays the current video routing and facilitates the creation or recall of presets, making operation easier.

Can I save and recall multiple matrix routing configurations with the 4K HDMI 4x4 Matrix Video Switcher?

Yes, the 4K HDMI 4x4 Matrix Video Switcher allows you to save and recall multiple matrix routing configuration presets.

What is the EDID calculation feature on the 4K HDMI 4x4 Matrix Video Switcher?

The EDID calculation feature on the switcher intelligently calculates the Extended Display Identification Data (EDID) for each input based on the EDID of the connected sinks, offering enhanced control over your video switching.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hall Research Matrix Video Switcher Specifications

  • Color

    Black

  • Video Ports

    Input: (4) HDMI 2.0
    Output: (4) HDMI 2.0

  • HDCP

    HDCP 2.2 and HDCP 1.4

  • HDMI Bandwidth

    18 Gbps

  • HD Resolutions

    Up to 4K60 (4:4:4)

  • PC Resolutions

    VGA through WQXGA

  • Audio Output Ports

    (4) TOSLINK (S/PDIF digital supports all formats listed below)

  • Control

    Front Panel / Telnet / RS-232/ IR / WebGUI

  • Baud Rate

    115200 bps

  • Power Consumption

    Max 12.5 W / Min 4 W

  • Power Supply

    External 5V 4A

  • Housing

    Metal Enclosure

  • ESD Protection

    Human body model - +/-12 kV (air-gap discharge) & +/-8 kV

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)
    10%-90%, non-condensing

  • Storage Temperature

    -40 to +158 Degree F (-40 to +70 Degree C)

  • EMI/EMC

    CE, FCC Class B

  • MTBF

    90,000 hours

  • Dimensions (W x D x H)

    8.50 x 5 x 1.75" (216 x 127 x 45mm)

  • Weight

    32.8 oz (929.8g)

  • UPC Code

    608415712268

About Hall Research Matrix Video Switcher

Before you settle for any video switcher, consider the 4K HDMI 4x4 Matrix Video Switcher in Black, a distinguished member of the Genesis Digital Matrix series by Hall Technologies. This high-quality, durable, and versatile device is designed to deliver exceptional video quality and intuitive operation, embodying the superior standards synonymous with Hall Technologies' video matrix switchers.

This efficient 4x4 cross-point switch comes in a compact 1-RU enclosure, making it a sleek and professional addition to any setup. It's not just about looks, though. This switcher is a powerhouse, supporting HDMI resolutions up to 4K at 60Hz4:4:4, ensuring your video quality is second to none.

The 4K HDMI 4x4 Matrix Video Switcher is also compatible with HDCP 2.2 and 1.4, 3D, deep-color, and a range of audio standards including PCM, Dolby, DTS, and HD. This ensures that it can seamlessly integrate with your existing equipment and deliver the best possible audio-visual experience.

One of the standout features of this user-friendly switcher is its intelligent EDID calculation for each input, based on the EDID of the connected sinks. This feature, combined with the ability to save and recall multiple matrix routing configuration presets, offers you unparalleled control over your video switching.

The switcher also includes a two-line character LCD on its front panel. This display not only shows the current video routing but also facilitates the creation or recall of presets, making operation a breeze.

Whether you're setting up for conference rooms, multimedia presentations, digital signage, or houses of worship, the 4K HDMI 4x4 Matrix Video Switcher in Black is a versatile solution designed to meet your needs.

Hall Research Matrix Video Switcher Features

  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth up to 18Gbps
  • HDCP2.2 input, HDCP2.2 output
  • HDCP1.4 input, HDCP1.4 output
  • Support HDR10
  • 4x HDMI Input, 4x HDMI output
  • Analog and Digital Audio extraction
  • Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
  • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
  • Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
  • Support firmware updating through USB port

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamless 4K HDMI matrix switching for up to four sources and four displays.
  • Enjoy reliable connection with this video switcher, supporting resolutions up to 4K60.
  • Low latency HDMI video distribution ensures real-time performance for critical viewing.
  • Easy setup with included IR remote and rack mounting brackets for quick integration.
  • Control via front panel, Telnet, RS-232, IR, or WebGUI for flexible management.
  • Ensure good compatibility with HDCP 2.2 & 1.4, plus TOSLINK audio output ports.

What's in the box:

  • Hall Research 4K HDMI 4x4 Matrix Video Switcher (Black)
  • External Universal Power Supply
  • IR Remote
  • 2x Rack Mounting Brackets with 6x Screws
  • IR Detector
  • 3-Pin Screw-Terminal
  • User Manual Card
  • Hall Research 3 Year Limited Warranty
