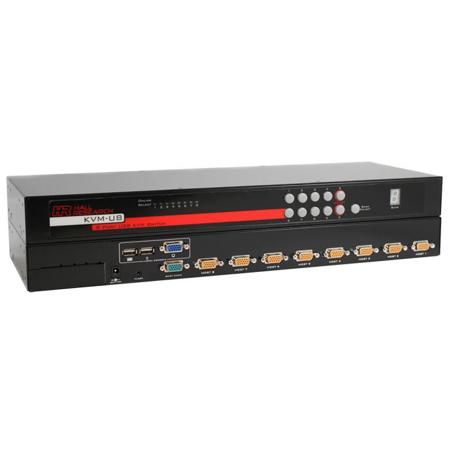

Hall Research KVM-U8 1RU 8 Port VGA USB KVM Switch
See all Hall Research items

Hall Research KVM-U8 1RU 8 Port VGA USB KVM Switch

SKU: HRKVMU8 MFR: KVM-U8
Be the first to review this itemAsk a Question
$509.20
$536.00
Save: $26.8 (5%)
OR
$85/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Manage up to 8 computers with this Hall Research KVM switch using a single console.
  • Enjoy high-resolution video (1920x1440) with this VGA KVM switch for crisp, clear visuals.
  • This USB KVM switch supports hotkeys, push buttons, and OSD for easy computer selection.
  • Enhance security with ACL function; this KVM switch stores up to 8 independent ACLs.
  • Daisy chain capability supports Bus (8-layer) and Tree (2-layer) topologies for scalability.
  • Maximize rack space; this 1U rackmount KVM switch is perfect for server room organization.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hall Research KVM-U8 Specifications

  • Host Port Connector

    HD15 VGA

  • Host Ports

    8

  • Console Type

    USB or PS/2

  • Maximum Distance

    16' / 4.88m

  • Video Resolution (Local Console)

    1920x1440

  • Video Resolution (Remote Console)

    1600x1200 for IP-Based remote console

  • Console Ports

    Local Console

  • IP-Based Remote

    Part # KVM-U8-IP Module

  • Daisy Chain

    Support Daisy Chaining with both Bus (8-layer) and Tree (2-layer) topologies
    Connector DB15 (Female Type)

  • Computer Selection

    Hot Key
    Push Button
    On Screen Display (OSD) Menu

  • Hot Key

    Various Hotkey options (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win)

  • Security

    Provide ACL (Access Control List) security function, store up to 8 independent ACL's of controllable computer lists

  • OSD Language

    8 languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese)

  • Auto-Scan Interval

    5-99 sec

  • Keyboard Emulation

    PS/2 or USB

  • Mouse Emulation

    PS/2 or USB

  • Maximum Connected Computers

    8192

  • Housing

    Metal

  • Power

    12 VDC, 1 ADC

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80%, Non-Condensing

  • Mechanical

    19" Rackmount, 1U

  • Dimensions

    444.5 x 160 x 44.3mm / 17.50 x 6.30 x 1.74"

About Hall Research KVM-U8

The KVM-U8 is a single rack unit 8-port VGA KVM switch to control multiple hosts from a single console. Hosts connect to the switch via a convenient Video/USB combo cable. The switch console natively accepts USB keyboard and mouse but can use PS/2 with PS/2-USB adapters. Up to 8 switches can be linked together to control up to 64 servers. The switch may be accessed from any computer on the LAN with optional plug-in module (KVM-U8-IP).

Hall Research KVM-U8 Features

  • On Screen Display (OSD) Menu
  • Two levels of password security
  • Hot key control
  • Push button and Auto Scan switching
  • Full keyboard and mouse emulation
  • Provides ACL (Access Control List) security with up to 8 independent ACLs of controllable computer lists
  • Hot pluggable. Add or remove connected computers without powering off the KVM switch or computers
  • Plug-n-Play monitor support
  • Keyboard state restored when switching between computers
  • Daisy chainable function with both Bus (8-layer) and Tree (2-layer) topologies
  • Video/USB combo cables available in 6, 10 and 15 ft. lengths
  • Optional KVM Over IP interface (KVM-U8-IP) to allow remote access to the switch from any PC on the LAN

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage up to 8 computers with this Hall Research KVM switch using a single console.
  • Enjoy high-resolution video (1920x1440) with this VGA KVM switch for crisp, clear visuals.
  • This USB KVM switch supports hotkeys, push buttons, and OSD for easy computer selection.
  • Enhance security with ACL function; this KVM switch stores up to 8 independent ACLs.
  • Daisy chain capability supports Bus (8-layer) and Tree (2-layer) topologies for scalability.
  • Maximize rack space; this 1U rackmount KVM switch is perfect for server room organization.

What's in the box:

  • Hall Research KVM-U8 1RU 8 Port VGA USB KVM Switch
  • 2x Rack Mount Brackets with Mounting Hardware
  • 4x Foot Pads
  • 12V DC Power Adapter
  • Users Guide
  • Hall Research 3 Year Limited Warranty
