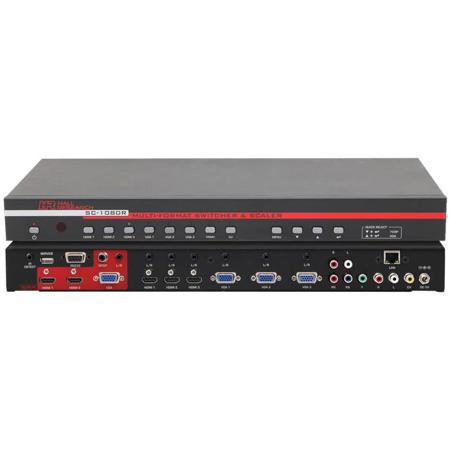

About Hall Research SC-1080R
The SC-1080R can switch and scale among 8 AV inputs (3 HDMI, 3 VGA, 1 YPbPr and 1 Composite Video). It provides 3 simultaneous outputs (2 HDMI, 1 VGA). All outputs show the selected input. Inputs support various PC and HDTV resolutions (Composite Video input supports NTSC and PAL). The output format and resolution can be specified as either PC (VGA to WUXGA) or HDTV (YPbPr/YCbCr from 480i to 1080p). Both Analog and Digital audio outputs are provided for convenience.
The Video Scaler can be controlled in many ways including: front panel pushbuttons, using the included IR remote control, Telnet (via LAN), WebGUI (via LAN) or RS-232 Serial interface. The SC-1080R features an OSD menu for configuration, picture setup, system information and other advanced options. It is ideal for use with in boardrooms, classrooms, digital signage and high-end home-theatre applications.
Hall Research SC-1080R Features
- Switch and scale among 8 AV inputs
- 4 different types of inputs are supported HDMI, VGA, YPbPr, CV
- 3 simultaneous analog and digital outputs
- Separate analog and digital audio outputs
- IP enabled with user-friendly WebGUI and Telnet control
- Powerful and intuitive RS-232 Control Commands
- Individual buttons on the front panel for direct input selection
- Includes IR remote control
- Auto Scan Switching mode
- Any PC or HDTV video signal can be scaled any other resolution
- State-of-the-art video scaling for real-time frame rate conversion
- Programmable audio delay up to 150ms for lip-sync
- Front Panel IR detector and IR detector cable for remote IR control
