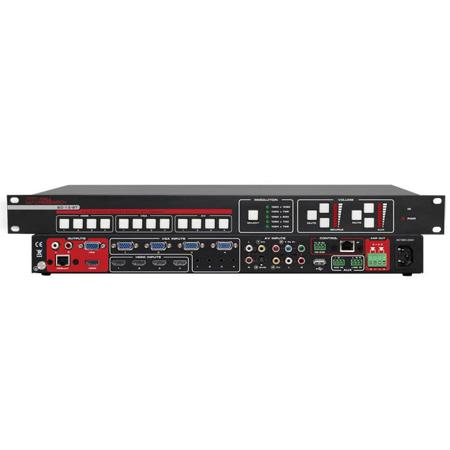

Hall Research SC-12BT Multi-Format Scaler Switch with HDBaseT Output

SKU: HRSC12BT MFR: SC-12BT
Earn VIP Reward Points

Key Features

  • Seamlessly switch between HDMI, VGA, and AV inputs with this versatile video switcher.
  • Extend your video signal up to 230 feet using the HDBaseT output for reliable streaming.
  • Enjoy high-quality video with resolutions up to 1080p for clear, crisp images.
  • Easily control the multi-format scaler switch via RS-232, TCP/IP, or IR remote.
  • Integrate audio with stereo line inputs and amplified outputs for a complete AV solution.
  • Rack-mountable design ensures easy installation and a durable build for long-term use.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research SC-12BT Specifications

  • Video inputs

    4x HDMI, 4x VGA, 4xAV (1s YPbPr, 1x S-Video, 2x Composite Video)

  • Video outputs

    1x HDMI, 1x VGA, 1x HDBaseT (for extension to 70m or 230' max.)

  • Video Connectors

    HDMI female, HD15 Female for VGA, RCA for Composite and YPbPr, Mini-Din for S-Video, RJ45 for HDBaseT

  • Input standards

    HDMI 1.3, RGBHV, RGBs, RGsB, RsBsGs, NTSC 3.58, NTSC 4.42, PAL, SECAM

  • Video Bandwidth

    HDMI: 4.95Gbps
    CV/S-Video: 150MHz
    YPbPr: 170MHz
    VGA: 375MHz

  • HDCP Support

    Yes (Version 1.0 to 1.4)

  • Output Resolutions

    720p: 1280x720, 1080p: 1920x1080, XGA: 1024x768, WXGA: 1280x800 HD/WXGA: 1360x768

  • Audio inputs

    6 Stereo Audio line inputs (4 3.5mm for VGA and 2 RCA for AV), plus two Aux inputs on screw terminals (Balanced Mono for mic, Unbalanced Stereo)

  • RCA/3.5mm Input Level

    -10dBv Nominal

  • RCA/3.5mm Input Impedance

    > 10 KOhms

  • Mic Aux input level

    -48dB Nominal (Balanced Mic input) - No Phantom Power Provided

  • Line Aux Input Level

    +4dBu Nominal

  • Audio outputs

    Stereo line level outputs on RCA, 2x10W at 8Ohms (or 2x 20W at 4Ohms) amplified

  • Frequency Response

    20 Hz-20 KHz

  • Control Ports

    RS-232, TCP/IP (telnet), IR

  • Power supply

    100 VAC to 240 VAC, 50-60 Hz, internal;

  • Power consumption

    65 watts (220 BTU/hr) maximum

  • Mounting

    1RU high, standard 19" rack

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Humidity

    Operating: 10% to 90%, non-condensing
    Storage: 10% to 90%, non-condensing

  • Rack Height

    1RU

  • Dimensions (H x W x D)

    1.73 x 19 x 9.25" / 4.39 x 48.26 x 23.50cm

  • Weight

    6.1lbs / 2.77kg

About Hall Research SC-12BT

After extensive research and development, we present the advanced SC-12BT Multi-Format Scaler Switch with HDBaseT Output. This high-tech device is designed to accommodate a wide range of inputs, including 4 HDMI, 4 VGA, and 4 AV, making it a multifunctional solution for your video and audio needs.

The user-friendly interface allows you to effortlessly select any of the inputs using the front panel push-buttons, IR, RS-232, or IP commands. The selected source is then scaled to a fixed, user-definable resolution, ensuring the highest quality output for your viewing pleasure.

This sophisticated switcher simultaneously outputs in three convenient formats: VGA, HDMI, and HDBaseT. The HDBaseT output is class B, enabling easy extension to 70m / 230ft on a single UTP connection when used with compatible receivers or displays with built-in HDBaseT inputs.

The SC-12BT Multi-Format Scaler Switch is not just about video; it also provides comprehensive audio capabilities. HDMI audio is extracted, and VGA and AV inputs (Composite, S-Video, and YPbPr) have their own separate audio inputs. Two auxiliary audio inputs are provided (balanced mic and stereo line-level), with separate audio controls available on the front panel for selected video and Aux input.

The overall audio is embedded in the HDMI and HDBaseT outputs and is also available on RCA jacks. The unit also boasts a 20-watt audio amplifier for direct connection to 4 or 8Ohms speakers. This feature-rich, high-tech switcher is the perfect solution for managing multiple video and audio sources, making it an essential addition to your audio-visual setup.

Hall Research SC-12BT Features

  • 12 input Switcher
  • Inputs: 4x HDMI, 4xVGA, 2x CV, 1x S-Video, 1x YPbPr
  • 3 Simultaneously Active Outputs
  • Outputs: VGA, HDMI and HDBaseT (up to 230 ft. on Cat6)
  • 20 Watt Power Amp for driving 4 or 8Ohms speakers
  • IR, RS-232 and IP Control (with intuitive English language command set)
  • Scaler with User Settable Output Resolution
  • User friendly and intuitive front panel design
  • English-Based ASCII Command Set
  • HDMI Audio Extraction and Embedding
  • Balanced Microphone and Stereo Line Inputs
  • Line level and HDMI embedded audio outputs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between HDMI, VGA, and AV inputs with this versatile video switcher.
  • Extend your video signal up to 230 feet using the HDBaseT output for reliable streaming.
  • Enjoy high-quality video with resolutions up to 1080p for clear, crisp images.
  • Easily control the multi-format scaler switch via RS-232, TCP/IP, or IR remote.
  • Integrate audio with stereo line inputs and amplified outputs for a complete AV solution.
  • Rack-mountable design ensures easy installation and a durable build for long-term use.

What's in the box:

  • Hall Research SC-12BT Multi-Format Scaler Switch with HDBaseT Output
  • Power Cord
  • IR Remote with Batteries
  • 4x Captive Screw Connectors
  • 4x Plastic Cushions
  • RS-232 Cable
  • User's Manual
  • Hall Research 3 Year Limited Warranty
