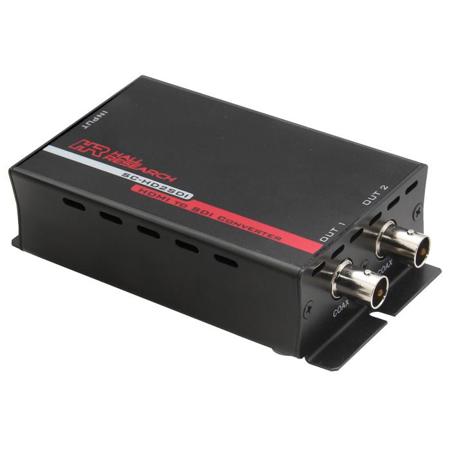

Hall Research SC-HD2SDI HDMI / DVI to SDI Converter
See all Hall Research items

Hall Research SC-HD2SDI HDMI / DVI to SDI Converter

SKU: HRSCHD2SDI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hall Research SC-HD2SDI Specifications

  • HDMI Bandwidth

    225MHz/link

  • Resolutions Supported

    480i, 576i, 720p at 50/60
    1080i at 50/60
    1080p at 24/25/30/50/60

  • TMDS Signal Level

    3.3V

  • DDC Signal Level

    5V

  • ESD Protection

    +/-8kV (air-gap discharge)
    +/-4kV (contact discharge)

  • Max Coaxial Cable Length

    With quality RG-6U:
    Full HD up to 70m / 229.66'
    HD up to 122m / 400.26'
    SD up to 153m / 501.96'

  • Power Supply (each side)

    External Input: 100 -240 Vac, 50/60 Hz ; Output 5 Vdc, 1 A

  • Power consumption

    2.3W per side

  • Operation temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Relative humidity

    20-90% (non-condensing)

  • Dimensions (H x W x D)

    1.18 x 2.75 x 3.85" / 3.00 x 6.99 x 9.78cm (each side)

  • Weight

    0.75lbs / 0.34kg (each side)

About Hall Research SC-HD2SDI

The SC-HD2SDI is an HDMI to SDI Converter with two identical SDI outputs (built-in 2-channel splitter). It automatically detects and converts DVI or HDMI video (without HDCP content protection) to SDI, HD-SDI or 3G-SDI. The type of SDI is determined by the resolution of the input video. It supports HDMI embedded audio and if audio is present, it will be passed to the SDI outputs.

To ensure that the video source produces a video resolution that is supported by the converter, the converter's input has an EDID table which lists the supported resolutions. Standard TV and HDTV resolutions are supported including 486i/576i, 720p, 1080i and 1080p. The SDI outputs can drive RG-6U cables to over 200 ft. The product is perfect for converting PC or HDTV digital video to SDI format for use with professional SDI products such as matrix switchers and video editing gear.

Hall Research SC-HD2SDI Features

  • Supports resolutions up to 1920x1080 at 60 Hz
  • No user settings, plug-n-play
  • Two simultaneous SDI outputs
  • HDCP compliant (if there is HDCP on the input, the SDI outputs will be cut off)
  • Uses Locking HDMI connector

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research SC-HD2SDI HDMI / DVI to SDI Converter
  • Power Supply
  • User's Manual
  • Hall Research 3 Year Warranty
