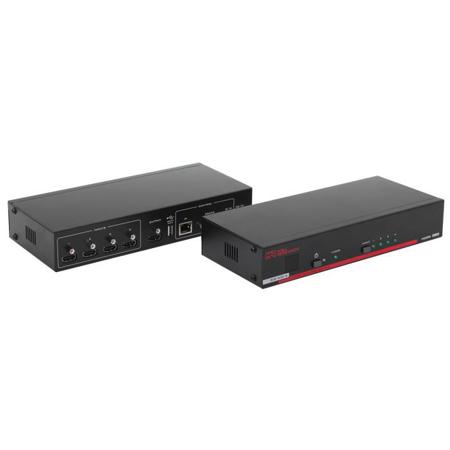

Hall Research 4-Port HDMI Fast Switch with IP, RS-232 and IR Control

SKU: HRSWHD4 MFR: SW-HD-4
Earn VIP Reward Points

Key Features

  • Enjoy seamless switching between four HDMI sources with this HDMI Switch.
  • Experience high-resolution video up to 4K2K with no signal degradation using this switcher.
  • Control your HDMI sources via IP, RS-232, or IR, offering versatile control options.
  • Benefit from a reliable connection with locking HDMI ports, preventing accidental disconnections.
  • This affordable HDMI switch supports LPCM, Dolby Digital, and DTS for enhanced audio.
  • Easy setup ensures you're quickly enjoying multiple HDMI devices on a single display.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research SW-HD-4 Specifications

  • Video Resolution

    480i to 1080p at 50/60, 1080p at 24, 4K2K per following:
    3840x2160 at 24/25/30, (or 50/60 with YUV 4:2:0)
    4096x2160 at 24, (or 50/60 with YUV 4:2:0)

  • Video Bandwidth

    Up to 3.00 Gbps (Single Link)

  • Audio Standards

    LPCM 2/5.1/7.1CH, Dolby Digital 2-5.1CH, DTS 2-5.1CH, Dolby TrueHD and DTS-HD Master Audio

  • Input Ports

    4x HDMI Female with Locking Capability

  • Output Ports

    1x HDMI Female with Locking Capability

  • Power Supply

    5 VDC at 2.6aDC (US/EU Standard, CE/FCC/UL Certified)

  • ESD Protection

    Human Body model
    8kV (air-gap discharge)
    4kV (contact discharge)

  • Enclosure

    Metal

  • MTBF

    90000 estimated

  • IR Remote Protocol

    NEC or NEC Extended

  • IR Codes

    IR POWER Code: 0x40, 0xAF, 0x0E, 0xF1
    IR INPUT #1 Code: 0x40, 0xAF, 0x01, 0xFE
    IR INPUT #2 Code: 0x40, 0xAF, 0x03, 0xFC
    IR INPUT #3 Code: 0x40, 0xAF, 0x02, 0xFD
    IR INPUT #4 Code: 0x40, 0xAF, 0x19, 0xE6

  • Dimensions (W x D x H)

    9.75 x 4.5 x 2" / 24.77 x 11.43 x 5.08cm (All protrusions included)

  • Weight

    1.8lbs / 0.82kg

About Hall Research SW-HD-4

The SW-HD-4 is a 4 input HDMI Switcher with InstaPort Technology from Silicon Image enabling fast switching of four HDMI sources to a single HDMI output. The switcher supports 4K (UHD), 3D, 36-bit Deep Color video. Control switching via front panel button, using IR remote control, RS-232 , Telnet and also web GUI built in the unit. Full EDID control is provided, whereby you can decide individually the EDID content for each input. You can choose from a list of standard EDIDs or copy the EDID from the connected display to any input. This can be done using the web GUI or by sending RS-232 commands.

Auto switching with priority is another important feature of the switcher. In Auto mode, the SW-HD-4 scans all inputs and automatically selects the active input. Priority is based on position with #1 input having the highest priority (so if more than one input has video, in Auto mode, the input with lowest port number will be selected). Front panel buttons can be locked to prevent users from switching or changing modes. The Switcher can also disable HDCP support for any input forcing the source to send unencrypted content when allowed (some sources add HDCP even if the content shown is not protected).

When the input does not have HDCP, the output will not have HDCP. This is a useful feature for connecting the output to devices that do not support HDCP such as video conferencing gear. The SW-HD-4 provides a USB type A port on the back for connection of USB flash devices for firmware upgrade. This USB connector provides 500 ma of power and can be used to power external devices such as Google's Chromecast or Amazon's Fire TV.

Hall Research SW-HD-4 Features

  • Fast Switch technology reduces switching times to a couple of seconds
  • Supports resolutions to 4K (UHD), 3D and deep color
  • Front Panel Lock feature to prevent inadvertent switching
  • Control via Front Panel, IR, RS232, Telnet and WebGUI
  • Auto input mode switches to active input automatically
  • EDID emulation or pass-through
  • Front panel LED indicators for status monitoring
  • Includes Remote Control
  • HDMI 1.4, HDCP 1.1 and DVI 1.0 Compliant
  • High Definition audio pass-through
  • Compatible with Apple devices
  • Supports HDMI Cable Locking
  • USB port can power devices such as audio extractors or video players

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Enjoy seamless switching between four HDMI sources with this HDMI Switch.
  • Experience high-resolution video up to 4K2K with no signal degradation using this switcher.
  • Control your HDMI sources via IP, RS-232, or IR, offering versatile control options.
  • Benefit from a reliable connection with locking HDMI ports, preventing accidental disconnections.
  • This affordable HDMI switch supports LPCM, Dolby Digital, and DTS for enhanced audio.
  • Easy setup ensures you're quickly enjoying multiple HDMI devices on a single display.

What's in the box:

  • Hall Research 4-Port HDMI Fast Switch
  • Locking 5V DC Universal Power Supply
  • IR Remote Control
  • IR Remote Detector cable
  • User's Manual
  • Hall Research 3 Year Limited Warranty
