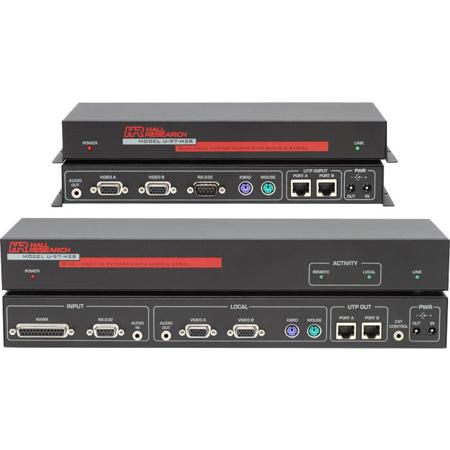

Hall Research U97-H2 Dual Video Head KVM and Audio and Serial Over UTP Extension
SKU: HRU97H2
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Hall Research U97-H2
The U97-H2 Mini-Cat is KVVM and Audio and Serial over UTP (Cat5/5e/6) extension system. The U97-H2 Mini-Cat extends 2 separate video signals, Keyboard, Mouse, Audio and RS-232 over 2 UTP (Cat5/5e/6) cables up to 500 feet. It allows a local user and a remote user to work on the same PC at different times. The remote user can be up to 500 feet away from the PC connected via 2 UTP (Cat5/5e/6) cable.
The Receiver also has digital video compensation to compensate for signal loss at longer cable lengths. The Sender unit also has an external switch to allow only local, remote or either station control. The Sender unit has 2 LED's to indicate which station, local or remote, currently has control. Made in the USA.
Hall Research U97-H2 Features
- Extends to separate video signals. Great for dual-head workstations!
- Full PS/2 mouse command set emulation
- Full PS/2 keyboard command set emulation
- Dynamic hot plug ability of mouse and keyboard
- Dynamic hot plug ability and recovery of CATx cable
- Digital video compensation on Receiver unit
- Adjustable cable length compensation
- Receives Keyboard, Video, Mouse and Audio on one cable
- Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
- Amplifies the signal for clean and crisp transmission
- Differential signaling eliminates ground loops and noise
- Handles resolutions up to 1900x1440 at any refresh rate
- Drive standard CAT5 cables to 500 feet
