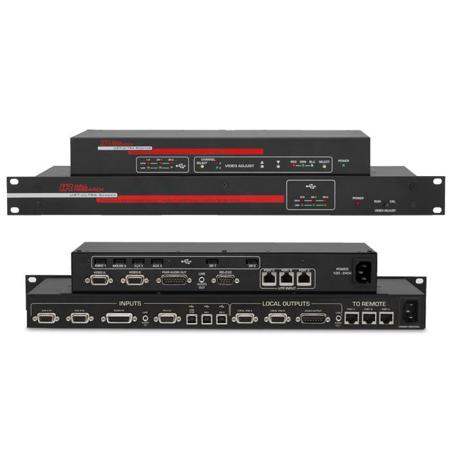

About Hall Research U97-ULTRA-2B
The Hall Research Model U97-Ultra-2B kit is used to extend Dual Display PC Video, Stereo Audio (amplified or line level), RS-232 and up to 3 independent USB ports to a remote location up to 500 feet away on any Category Cable (CAT5e/6 etc.).These products include a rack-mountable Sender Unit plus a wall-mountable Receiver (and I/O hood cover), package d together.
Hall Research U97-ULTRA-2B Features
- Combines the functions of Hall Research Models U97-H2, UU2X4-P1, two SKU-RGB, DVC-3 video test pattern generator and more
- Eliminates the need for Utility Box (Receiver includes a guard plate that goes over all the connectors with tie-down provisions for strain relief)
- Does not require external power supply (built-in supply with standard 110240 VAC IEC320 jack)
- Includes 2 "Direct" USB ports (DR1 & DR2) and Standard with Hub at receiver
- DB15 connector for Amplified audio input and loop output at the sender as well as DB15 output at the receiver to directly drive passive speakers
- Built-in video Skew Correction on both video channels. This corrects the lack of RGB convergence when long Cat6 cables are used. Eliminates the need to use special low-skew UTP cables for long runs
- Built-in Test pattern generator for long cable compensation (High Frequency Gain) and Skew correction
- Supports DDC channel with EDID (Extended display ID)
