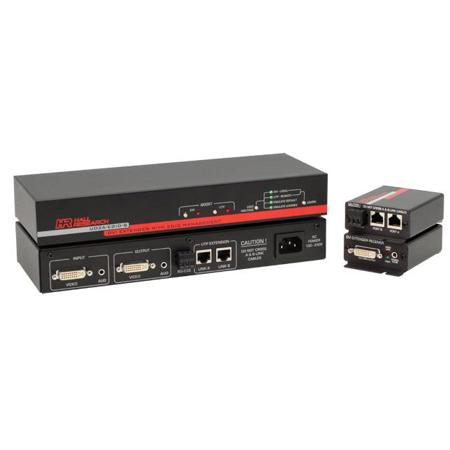

Hall Research UD2A-EDID DVI Extender with RS-232, Audio & EDID Management - Sender & Receiver

SKU: HRUD2AEDID MFR: UD2A-EDID
Earn VIP Reward Points

Key Features

  • Extend your DVI video signal with this DVI extender, maintaining crystal-clear image quality.
  • Manage EDID with RS-232 control; this Hall Research extender ensures optimal display compatibility.
  • Enjoy audio extension alongside video, making this extender perfect for multimedia setups.
  • Achieve reliable performance with a robust steel enclosure and high MTBF (90,000 hours).
  • Supports up to WUXGA (1920x1200) at 60Hz, ensuring sharp visuals for your high-resolution needs.
  • Use this DVI extender for remote displays, with sender and receiver included for easy setup.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UD2A-EDID Specifications

  • Video

    DVI-D

  • Supported Resolutions

    Up to WUXGA (1920 x 1200) at 60 Hz

  • Audio

    PC audio level

  • Video Level

    0 to 0.7V p-p

  • Temperature

    Operating: 32 to 122 deg. F / 0 to 50 deg. C
    Storage: -40 to 185 deg. F /-4 to 85 deg. C

  • Enclosure

    Steel

  • MTBF

    90000 hours (calculated estimate)

  • Power Supply

    100-240V 50/60Hz 0.3A

  • Dimensions (H x W x D)

    Sender: 1.7 x 11.25 x 4.1" / 43.18 x 285.75 x 104.14mm
    Receiver: 1.25 x 2.75 x 3.0" / 31.75 x 69.85 x 76.20mm Deep with 2 L-Shaped mounting ears that protrude 0.40" / 10.16mm beyond the main box on the front and back

  • Weight

    3.00lbs / 1.36kg

About Hall Research UD2A-EDID

Where high-quality performance and innovative technology meet, the UD2A-EDID DVI Extender with RS-232, Audio & EDID Management - Sender & Receiver stands out. This durable and reliable device from Hall Research is designed to extend DVI signals over long distances, making it an ideal solution for various audio and video applications.

This user-friendly DVI extender is equipped with EDID management capabilities, allowing it to read and store the Extended Display Identification (EDID) information from the device connected to either DVI or UTP output. This feature enables the unit to emulate the actual monitor connected to the DVI input device, enhancing the overall user experience.

The UD2A-EDID-S model comes complete with a transmitter and receiver, ready to be connected with your choice of CAT5e or CAT6 cables. The sender unit boasts a DVI input and two HDMI outputs, while the receiver unit features an HDMI input and two HDMI outputs. This design ensures a seamless transmission of video, audio, and control signals.

In addition to its core functions, this DVI extender also offers RS-232, audio, and EDID management capabilities. These features allow for the transmission of control signals, audio, and EDID information between the sender and receiver units, providing a comprehensive solution for your audio and video needs.

The unit's video outputs can be adjusted as needed, offering the option to either blank or boost the signal. Capable of driving video, audio, and RS-232 to distances of 150 feet or more, this device offers flexibility and performance in one package.

Control of the unit is straightforward, with options to manually use the buttons on the front panel or remotely through a serial port with RS-232 commands or GUI software. The unit also features internal memory to store the last operating selection when power is off, ensuring a smooth user experience.

With four different EDID selections to be routed, such as DVI Local, UTP Remote, Emulate Default, and Emulate Learned, the UD2A-EDID DVI Extender with RS-232, Audio & EDID Management - Sender & Receiver is a versatile and high-performing addition to any audio and video setup.

Hall Research UD2A-EDID Features

  • Provides a local DVI output and a Remote via 2 Cat6
  • Sends DVI, L/R Audio, RS-232 and Power to Remote Receiver
  • Supports resolutions to 1,920 x 1,200
  • Read and store EDID information
  • Allows EDID information to be downloaded from PC using GUI software
  • EDID information learned from an output device can be used to emulate that actual device
  • Multiple control methods including front panel, serial commands, or GUI software
  • Video outputs can be blanked and un-blanked
  • Can drive video, audio and bi-directional RS-232 over long cables
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your DVI video signal with this DVI extender, maintaining crystal-clear image quality.
  • Manage EDID with RS-232 control; this Hall Research extender ensures optimal display compatibility.
  • Enjoy audio extension alongside video, making this extender perfect for multimedia setups.
  • Achieve reliable performance with a robust steel enclosure and high MTBF (90,000 hours).
  • Supports up to WUXGA (1920x1200) at 60Hz, ensuring sharp visuals for your high-resolution needs.
  • Use this DVI extender for remote displays, with sender and receiver included for easy setup.

What's in the box:

  • Hall Research UD2A-EDID DVI Extender with RS-232
  • Power Cord
  • Installation CD (GUI Software)
  • Hall Research 3 Year Limited Warranty
