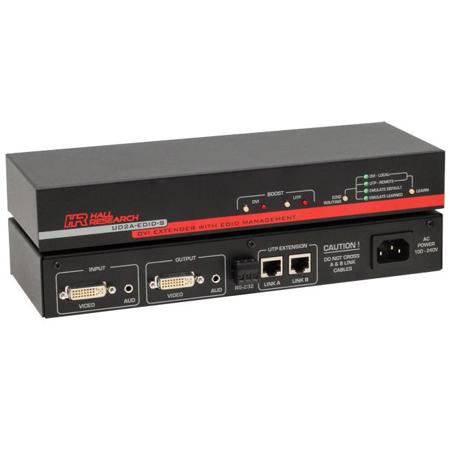

Hall Research UD2A-EDID-S DVI Extender with EDID Management, Audio, Serial & GUI Control - Sender

SKU: HRUD2AEDIDS MFR: UD2A-EDID-S
Earn VIP Reward Points

Key Features

  • Extend your DVI signals reliably with this stable DVI extender, up to impressive distances!
  • Enjoy high-resolution video and audio with EDID management for optimal display compatibility.
  • This affordable DVI extender offers seamless integration with PC audio for enhanced setups.
  • Take control with serial & GUI control features, making configuration and adjustments easy!
  • Ensure real-time conversion with this extender, perfect for live streaming and presentations.
  • Experience easy setup and robust performance with this Hall Research DVI and audio extender.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UD2A-EDID-S Specifications

  • Video Inputs

    DVI-D

  • Audio Inputs

    PC audio outputs

  • Video Level

    0 to 0.7V p-p

  • Temperature

    Operating: 32 to 122 deg. F / 0 to 50 deg. C
    Storage: -40 to 185 deg. F /-4 to 85 deg. C

  • Enclosure

    Steel

  • MTBF

    90000 hours (calculated estimate)

  • Power Supply

    100-240V 50/60Hz 0.3A

  • Dimensions (H x W x D)

    Sender: 1.7 x 11.25 x 4.1" / 43.18 x 285.75 x 104.14mm

  • Weight

    2.12lbs / 0.96kg

About Hall Research UD2A-EDID-S

Bring your audio-visual experience to the next level with the UD2A-EDID-S DVI Extender with EDID Management, Audio, Serial & GUI Control - Sender. This innovative and reliable device, designed by the reputable Hall Research, is a high-performance solution for extending your DVI signal to remote locations.

This user-friendly DVI extender is equipped with a transmitter and receiver, ready to be paired with your preferred cables. It boasts the ability to read and store the EDID (Extended Display Identification) information from any device connected to either its DVI or UTP output. This unique feature allows the UD2A-EDID-S to emulate the actual monitor connected to the DVI input device, ensuring a seamless and high-quality display experience.

The UD2A-EDID-S is not just a DVI extender; it's a comprehensive audio-visual solution. It features local DVI and remote UTP video and audio outputs, with the added flexibility to blank or boost video outputs as needed. Capable of driving video, audio, and RS-232 signals up to 150 feet or more, this device is perfect for a wide range of applications.

Control is at your fingertips with the UD2A-EDID-S. You can manually operate the unit using the buttons on the front panel, or remotely control it through a serial port with RS-232 commands or GUI software. The unit also features internal memory to store the last operating selection when power is off, ensuring a smooth user experience.

With four different EDID selections to be routed, including DVI Local, UTP Remote, Emulate Default, and Emulate Learned, the UD2A-EDID-S DVI Extender offers unparalleled versatility and control. Enhance your audio-visual setup with this durable, high-quality device.

Hall Research UD2A-EDID-S Features

  • Read and store EDID information
  • Allows EDID information to be downloaded from PC using GUI software
  • EDID information learned from an output device can be used to emulate that actual device
  • Multiple control methods including front panel, serial commands, or GUI software
  • Video outputs can be blanked and un-blanked
  • Stores the last selection in internal memory
  • Can drive video, audio and bi-directional RS-232 over long cables
  • Ships with serial control terminal adapter
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your DVI signals reliably with this stable DVI extender, up to impressive distances!
  • Enjoy high-resolution video and audio with EDID management for optimal display compatibility.
  • This affordable DVI extender offers seamless integration with PC audio for enhanced setups.
  • Take control with serial & GUI control features, making configuration and adjustments easy!
  • Ensure real-time conversion with this extender, perfect for live streaming and presentations.
  • Experience easy setup and robust performance with this Hall Research DVI and audio extender.

What's in the box:

  • Hall Research UD2A-EDID-S DVI Extender with EDID Management
  • Power Cord
  • Installation CD (GUI Software)
  • Hall Research 3 Year Limited Warranty
