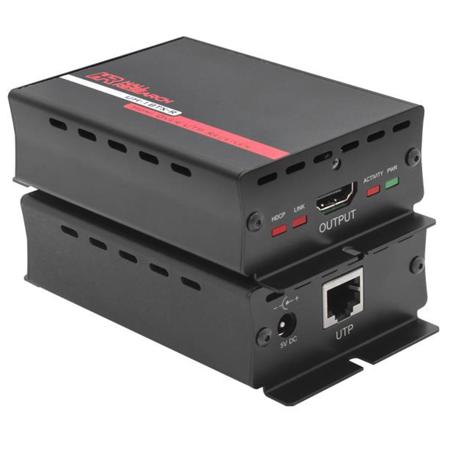

Hall Research UH-1BTX-R HDMI over UTP Receiver with HDBaseT
See all Hall Research items

Hall Research UH-1BTX-R HDMI over UTP Receiver with HDBaseT

SKU: HRUH1BTXR MFR: UH-1BTX-R
Be the first to review this itemAsk a Question
$256.50
$270.00
Save: $13.5 (5%)
OR
$43/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend 4K HDMI signals up to 330 feet over a single UTP cable, ensuring superior video quality.
  • Enjoy crystal-clear DVI and HDMI video resolutions from VGA to 4K, perfect for professional displays.
  • Benefit from reliable, low-latency signal transmission for seamless presentations and digital signage.
  • Experience hassle-free setup with plug-and-play compatibility, simplifying your video distribution.
  • Ensure secure connections with locking HDMI ports, preventing accidental disconnections in any setting.
  • Utilize pass-through DDC and CEC for full control over your connected devices and EDID management.
See More Product Details
Special Order?Estimated to Ship: 11/09/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$24.99
2-Year Adorama Protect$34.99
3-Year Adorama Protect$49.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hall Research UH-1BTX-R Specifications

  • Max Distance

    330' / 100.59m

  • Video Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal Type

    TMDS

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI: VGA (640x480) to WUXGA (1920x1200)
    HDTV: 480i to 1080p
    Digital Cinema: 4K (4096x2160)

  • Audio

    All HDMI Embedded Audio

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru DDC for Consumer Electronics Control compatible devices

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.6 A, regulated

  • Nominal Power

    4.25 W max

  • Temperature

    Storage: -40 to 158 deg. F / -40 to 70 deg. C
    Operating: 32 to 104F deg. C / 90 to 219 deg. F

  • Humidity

    10% to 90%, non-condensing

  • Cooling

    Convection

  • Mounting

    End plates have L bracket with hole for surface mounting

  • Enclosure

    Metal (Steel ends and Aluminum extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (H x W x D)

    1.18 x 2.75 x 3.85" / 29.97 x 69.85 x 97.79mm

  • Weight

    0.75lbs / 0.34kg

About Hall Research UH-1BTX-R

The Mini-Cat brand UH-1BTX-R is used to extend HDMI or DVI video signals up to 330 ft over inexpensive UTP (Cat6) cable using HDBaseT (HDBaseT) technology. Video and embedded audio signals are transmitted without any compression to the remote for a 100% identical reproduction even at resolutions of 4kx2k. The UH-1BT-R requires a compatible Transmitter (sender). All Hall Research HDBaseT senders are compatible with UH-1BTX-R, but specifically UH-1BTX-S is its counterpart and the pair is available and can be purchased as a kit. Please see HDBaseT Selection Chart for more information.

The extender is HDCP compliant with with pass-thru EDID. It supports embedded audio, Full HD, deep color (1080p at 60Hz at 48 bits/pixel), 3D video and 4K resolution. Secondary data channels such as: DDC, CEC and HPD (Hot-Plug Detect) are also transparently extended. Plug and play operation with no user adjustments offer a truly trouble-free experience.

Hall Research UH-1BTX-R Features

  • Extend HDMI or DVI over single Cat 5e/6 up to 330 ft (100 m)
  • Utilizes HDBaseT Class B (HDBaseT) extension technology
  • Full HD support 1080p deep color, 3D and4K
  • HDCP Compliant with pass-thru EDID from display to source
  • Supports virtually all HD and PC resolutions
  • Supports HDMI Audio
  • Compatible with all HDBaseT and HDBaseT (HDBaseT-Lite) compliant products
  • Locking HDMI connector
  • Universal power supply included
  • Uncompressed digital video extension guarantees 100% fidelity
  • Plug and play, no configuration required
  • Compact metal enclosure with mounting provisions
  • Reliable, trouble free operation
  • 100% designed and manufactured in the USA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend 4K HDMI signals up to 330 feet over a single UTP cable, ensuring superior video quality.
  • Enjoy crystal-clear DVI and HDMI video resolutions from VGA to 4K, perfect for professional displays.
  • Benefit from reliable, low-latency signal transmission for seamless presentations and digital signage.
  • Experience hassle-free setup with plug-and-play compatibility, simplifying your video distribution.
  • Ensure secure connections with locking HDMI ports, preventing accidental disconnections in any setting.
  • Utilize pass-through DDC and CEC for full control over your connected devices and EDID management.

What's in the box:

  • Hall Research UH-1BTX-R HDMI over UTP Receiver with HDBaseT
  • 511-3A-161WP05 Power Supply
  • Hall Research 2 Year Parts & Labor Warranty
