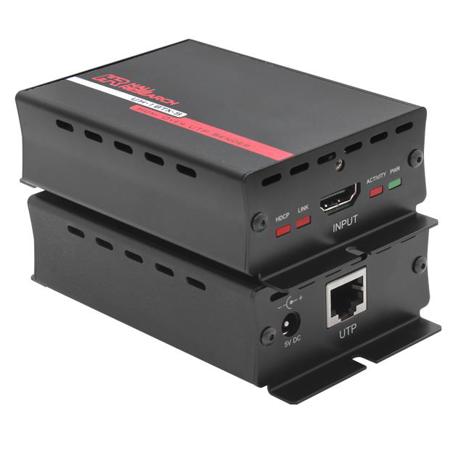

Hall Research UH-1BTX-S HDMI over UTP Sender with HDBaseT

The Mini-Cat brand UH-1BTX-S is used to extend HDMI or DVI video signals up to 330 ft over inexpensive UTP (Cat6) cable using HDBaseT (HDBaseT) technology. Video and embedded audio signals are transmitted without any compression to the remote for a 100% identical reproduction even at resolutions of 4K. The UH-1BT-S requires a compatible Receiver (for remote end). All Hall Research HDBaseT Receivers are compatible with UH-1BTX-S, but specifically UH-1BTX-R is its counterpart and the pair is available and can be purchased as a kit. Please see HDBaseT Selection Chart for more information.

The extender is HDCP compliant with with pass-thru EDID. It supports embedded audio, Full HD, deep color (1080p at 60Hz at 48 bits/pixel), 3D video and 4K resolution. Secondary data channels such as: DDC, CEC and HPD (Hot-Plug Detect) are also transparently extended. Plug and play operation with no user adjustments offer a truly trouble-free experience.
