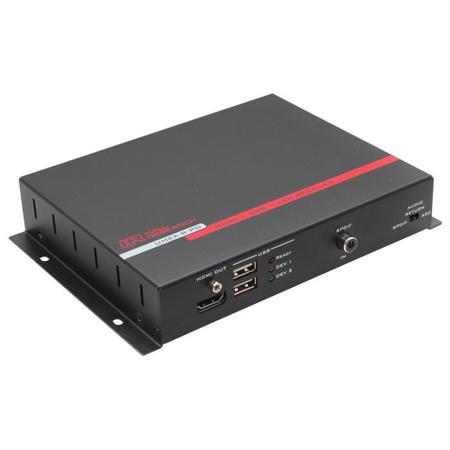

Hall Research UH2X-R-PD HDMI + USB + LAN over UTP Receiver with HDBaseT and PoH

SKU: HRUH2XRPD MFR: UH2X-R-PD
Earn VIP Reward Points

Key Features

  • Enjoy reliable connection with this HDBaseT receiver for seamless video streaming setups.
  • Achieve high resolution video output up to 4K2K with this versatile HDMI over UTP receiver.
  • This video format converter supports multiple audio standards, including Dolby and DTS for rich sound.
  • Simplify setup with Power over HDBaseT (PoH), delivering power and signal over a single cable.
  • Extend HDMI, USB, and LAN signals over long distances using this robust HDBaseT format converter.
  • Bidirectional IR and RS232 control offer enhanced control options for your AV setup.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UH2X-R-PD Specifications

  • Video Resolution

    HDTV Signals:
    480i to 1080p at 50/60, 1080p at 24, 4K2K per following: 3840x2160 at 24/25/30, 4096x2160 at 24, 3840x2160 at 60 (4:2:0)
    For DVI signals:
    VGA (640x480) thru WUXGA (1920x1200)

  • Video Bandwidth

    340 MHz/10.20 Gbps

  • Audio Standards

    LPCM 2/5.1/7.1CH, Dolby Digital 2 - 5.1CH, DTS 2 - 5.1CH, Dolby TrueHD and DTS-HD Master Audio

  • Transmitter Input Ports

    1x HDMI, 1x RS232, 1x IR, 1x USB

  • Transmitter Output Ports

    1x HDBaseT, 1x IR, 1x SPDIF

  • Receiver Input Ports

    1x HDBaseT, 1x IR, 1x SPDIF

  • Receiver Output Ports

    1x HDMI, 1x RS232, 1x IR, 2 x USB

  • Receiver LAN

    1x RJ45, Bidirectional

  • ESD Protection

    Human Body model:
    8kV (air-gap discharge), 4kV (contact discharge)

  • Enclosure

    Metal

  • Operating Temperature

    Storage: -4 to 140 deg. F / -20 to 60 deg. C / 20% to 90%, non-condensing
    Operating: 32 to 104 deg. F / 0 to 40 deg. C / 20% to 90%, non-condensing

  • MTBF

    90,000 estimated

  • Dimensions (W x D x H)

    7.3 x 5.1x 1.3" / 185.42 x 129.54 x 33.02mm

About Hall Research UH2X-R-PD

Discover the UH2X-R-PD, an advanced HDMI, USB, and LAN over UTP Receiver, engineered with cutting-edge HDBaseT 2.0 technology. This high-quality receiver is designed to extend uncompressed audio and video, along with IR, RS232, USB 2.0, and IP (Ethernet) over a single CAT5e/6 cable, facilitating seamless transmission up to 100 meters long.

This innovative product is PoH compliant, drawing its power through the CAT6 cable from the sender unit (Model UH2X-S-PSE), adhering to the IEEE802.3af standard. This eliminates the need for a separate power supply, making it a reliable and convenient solution for your audio and video needs.

Experience superior video quality with support for 4K (UHD) and 3D video, ensuring crystal clear visuals for your viewing pleasure. The UH2X-R-PD also offers an audio return extension, with a user-selectable independent audio return source. This can be either from the ARC pin of the HDMI connector at the Receiver (ARC signal from the connected TV) or from a separate SPDIF audio input connector provided on the Receiver.

Equipped with two USB 2.0 ports, the UH2X-R-PD acts as a USB hub, supporting all USB 1.1 and USB 2.0 devices. It complies with HDBaseT 2.0 specifications, ensuring compatibility and performance.

Designed with integrated mounting brackets, this durable receiver can be easily surface mounted, making it an ideal choice for professional audio and video applications requiring long-distance transmission of high-definition video and audio. Discover the convenience and performance of the UH2X-R-PD HDMI, USB, and LAN over UTP Receiver today.

Hall Research UH2X-R-PD Features

  • Fully compliant with HDBaseT 2.0 specifications
  • Extends Ethernet (100BaseT), bi-directional IR and RS232 control signals
  • Extends USB 2.0 and has integrated 2-port Hub in the Receiver
  • Supports Full HD (1080p/60), 3D and deep color to 100m
  • Supports 4K (UHD) Video to 60m (200 ft)
  • Perfect for KVM extension
  • Front panel LED indicators for status monitoring
  • Plug and play installation - takes minutes to setup
  • Supports pass through of HDMI embedded audio formats: LPCM 2/5.1/7.1 Channel, Dolby Digital 2~5.1 Channel, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
  • Supports HDMI ARC and external SPDIF digital audio return
  • Supports HDMI Locking Cable
  • USB ports can power devices such as audio extractors (Model HD-AUD)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enjoy reliable connection with this HDBaseT receiver for seamless video streaming setups.
  • Achieve high resolution video output up to 4K2K with this versatile HDMI over UTP receiver.
  • This video format converter supports multiple audio standards, including Dolby and DTS for rich sound.
  • Simplify setup with Power over HDBaseT (PoH), delivering power and signal over a single cable.
  • Extend HDMI, USB, and LAN signals over long distances using this robust HDBaseT format converter.
  • Bidirectional IR and RS232 control offer enhanced control options for your AV setup.

What's in the box:

  • Hall Research UH2X-R-PD HDMI + USB + LAN over UTP Receiver with HDBaseT and PoH
  • IR Remote Detector Cable
  • User's Manual
  • Hall Research 2 Year Limited Warranty
