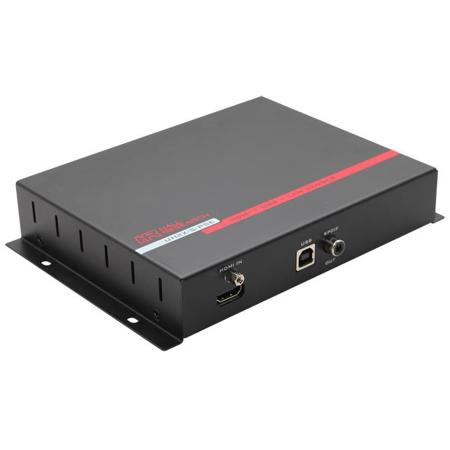

Hall Research UH2X-S-PSE HDMI + USB + LAN over UTP Sender with HDBaseT and PoH

Discover the power and versatility of the UH2X-S-PSE, an advanced HDMI over single CAT5e/6 Transmitter that utilizes cutting-edge HDBaseT 2.0 technology. This high-performance device is designed to extend uncompressed audio and video, along with IR, RS232, USB 2.0, and IP (Ethernet), using a single CAT5e/6 cable run that can reach up to 100m in length.

Experience the convenience of the PoH compliant receiver (Model UH2X-R-PD), which draws its power directly through the Cat6 cable from the transmitter, adhering to the IEEE802.3af standard. This eliminates the need for an additional power supply, simplifying your setup.

The UH2X-S-PSE supports 4K (UHD) and 3D video, ensuring high-quality, immersive visuals for any application. It also offers audio return extension, allowing audio to be sent back from the receiver to the sender. The source of this independent audio return is user-selectable and can originate from the ARC pin of the HDMI connector at the Receiver (from the connected TV's ARC signal) or from a separate SPDIF audio input connector on the Receiver.

The Receiver (Model UH2X-R-PD) also features two USB 2.0 ports, functioning as a USB hub. These ports are compatible with all USB 1.1 and USB 2.0 devices and meet the HDBaseT 2.0 specifications.

For easy installation, the Transmitter can be surface mounted using the integrated mounting brackets. The UH2X-S-PSE HDMI over single CAT5e/6 Transmitter with HDBaseT and PoH is a comprehensive solution for your audio and video transmission needs.
