Hall Research UHB-SW2 HDMI/VGA Auto-Switching Wall-Plate with USB, IR, & RS-232 Kit Includes HDBaseT Transmitter & HDBaseT Reciver

Before you consider any other solution for your video transmission needs, explore the Hall Research UHB-SW2 kit. This comprehensive package includes a 2-gang wall plate transmitter, a sleek, low-profile receiver, and an associated power supply, providing you with a complete, user-friendly solution for your audio-visual projects.

The wall plate is equipped with auto-switching VGA and HDMI inputs, along with a USB Host for PC connectivity, offering you a versatile range of options for your source devices. The system employs the robust HDBaseT 2.0 technology, ensuring reliable operation and high-quality transmission of your video and audio signals.

The HDMI input supports 4K/60 HDR video, while the VGA and analog audio inputs are converted to HDMI and scaled to be displayed on any TV or projector. This ensures that your content is always presented in the best possible quality, regardless of the source.

The UHB-SW2 kit is designed with user convenience in mind. The auto-switching feature automatically selects and displays the last connected input (HDMI or VGA), but a button is also provided for manual override, allowing you to easily select your desired input if required.

The USB Extension feature enables compatibility with a wide range of USB 1.1 and 2.0 devices, including keyboards, mice, touch-screens, Smartboards, interactive displays, and USB webcams. This makes the UHB-SW2 kit an ideal choice for commercial AV and educational (K-12) installations.

The UHB-SW2 can transmit HDMI signals over CAT6/6a/7 cables to distances up to 120 ft for 4K@60Hz (4:4:4) or up to 220ft for 1080p60Hz. This long-distance transmission capability makes it suitable for large venues or situations where the display device is far from the source.

IR signals are extended in both directions, and full duplex RS-232 control is also extended, providing you with comprehensive control over your setup. The receiver is powered by an included power supply, while the sender wall plate draws its power from the receiver via the same UTP cable, simplifying your setup process.

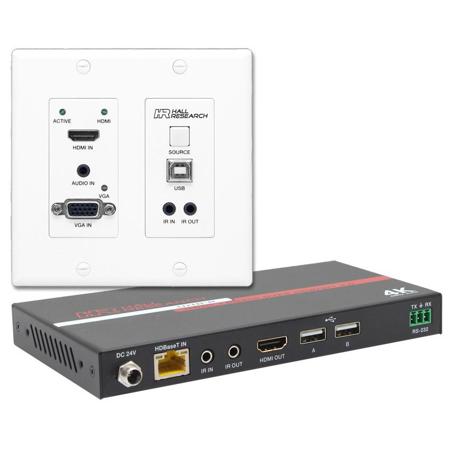

This high-quality, durable extender kit includes 1 wall plate transmitter and 1 box style receiver, providing you with a complete, efficient solution for your video transmission needs.
