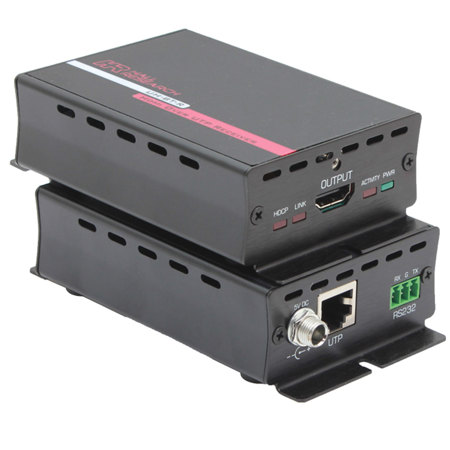

Hall Research UH-BT 230' HDMI Over UTP Extender with HDBaseT Class B Kit
See all Hall Research items

Hall Research UH-BT 230' HDMI Over UTP Extender with HDBaseT Class B Kit, Includes Receiver, Sender

SKU: HRUHBT MFR: UH-BT
Be the first to review this itemAsk a Question
$494.29
$520.30
Save: $26.01 (5%)
OR
$83/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230 feet with this reliable HDBaseT Class B extender kit.
  • Supports 4K UHD resolution, ensuring your video looks crisp and clear over long distances.
  • This HDMI over UTP extender supports pass-thru DDC for easy EDID reading from connected displays.
  • Enjoy hassle-free setup with included receiver, sender, and power supplies for immediate use.
  • Control devices remotely via RS-232, offering versatile integration for control systems setup.
  • Experience peace of mind with our 3-year warranty, ensuring your HDMI extender is protected.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hall Research UH-BT Specifications

  • Video Standards

    DVI (single link)
    HDMI 1.4 video specs including 4K UHD, 12 bit color depth and 3D video support
    HDCP 1.4

  • Connectors

    1x HDMI Input
    1x 3-pin RS-232 screw terminal
    1x UTP Output
    1x 2.0 mm Locking DC Power Jack input

  • Resolutions

    DVI signal VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal 480i through 4K at 30 Hz 4:4:4 or 4K at 60 Hz 4:2:0 UHD

  • Audio Formats

    All HDMI Embedded Audio

  • RS-232

    (1) RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake

  • CEC

    Pass-Thru Consumer Electronics Control (CEC) for compatible devices

  • Max Distance

    330' (100.59m)

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Humidity

    10% to 90%, non-condensing

  • Typical DC Current Draw

    5 VDC, 2.0 A Power Supply
    4.25W max

  • Cooling

    Convection

  • Enclosure type

    Metal (Steel ends, Aluminum extrusion)

  • Saftey

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (estimate)

  • Dimensions (H x W x D)

    1.18 x 2.75 x 3.85" (3 x 6.99 x 9.78cm) (Depth excludes connectors)

  • Weight

    0.75 lb (0.34kg)

About Hall Research UH-BT

The UH-BT and UH-BTX are a family of HDBaseT compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.

The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.

Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

Hall Research UH-BT Features

  • Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230'
  • Utilizes HDBaseT extension technology
  • Can connect to all HDBaseT and HDBaseT-Lite compliant products
  • Full HD support for 1080p deep color, 3D, and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source
  • CEC pass-thru for simplified control among compatible devices
  • Uncompressed digital video extension guarantees 100% fidelity
  • Reliable, trouble free operation
  • Plug and Play - no user configuration required
  • Sturdy, compact metal enclosures with mounting provisions
  • Compatible with Locking HDMI connectors
  • Universal Power Supplies with Locking connectors
  • Designed and manufactured in USA

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal up to 230 feet with this reliable HDBaseT Class B extender kit.
  • Supports 4K UHD resolution, ensuring your video looks crisp and clear over long distances.
  • This HDMI over UTP extender supports pass-thru DDC for easy EDID reading from connected displays.
  • Enjoy hassle-free setup with included receiver, sender, and power supplies for immediate use.
  • Control devices remotely via RS-232, offering versatile integration for control systems setup.
  • Experience peace of mind with our 3-year warranty, ensuring your HDMI extender is protected.

What's in the box:

  • UH-BT-Sender (230')
  • UH-BT-Reciver (230')
  • 2x 3-Pin Screw Terminal Connector
  • 2x Universal Power Supply (5 VDC @ 2A)
  • User's Manual
  • Hall Research 3 Year Limited Warranty
