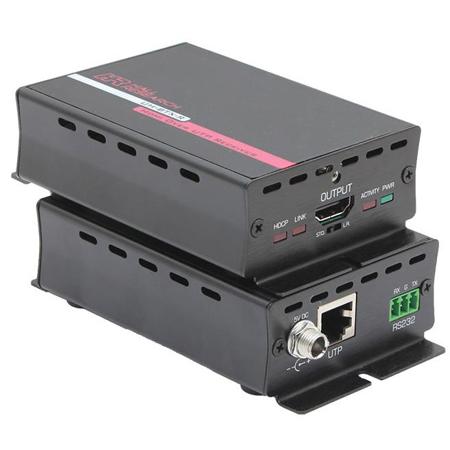

Hall Research UH-BTX-R 328' HDMI Receiver with RS-232 Control

SKU: HRUHBTXR MFR: UH-BTX-R
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 328 feet with this reliable HDMI receiver, ensuring optimal performance.
  • Enjoy pristine 4K UHD video with this HDMI receiver, supporting resolutions up to 4K at 30Hz 4:4:4.
  • Control your devices remotely using the built-in RS-232 control feature of this HDMI receiver.
  • This HDMI receiver supports HDCP 1.4, ensuring compatibility with protected content and devices.
  • Experience seamless audio with all HDMI embedded audio formats supported by this HDMI receiver unit.
  • Durable metal enclosure protects this HDMI receiver, ensuring long-lasting reliability and performance.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UH-BTX-R Specifications

  • Max Distance

    330' (100.59m)

  • Video Standards

    DVI (single link)
    HDMI 1.4 video specs including 4K UHD, 12 bit color depth and 3D video support
    HDCP 1.4

  • Connectors

    (1) HDMI Input
    (1) 3-pin RS-232 screw terminal
    (1) UTP Output
    (1) 2.0 mm Locking DC Power Jack input

  • Video Resolutions

    DVI signal VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal 480i through 4K at 30 Hz 4:4:4 or 4K at 60 Hz 4:2:0 UHD

  • Audio

    All HDMI Embedded Audio

  • RS-232

    (1) RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake

  • CEC

    Pass-Thru Consumer Electronics Control (CEC) for compatible devices

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, non-condensing

  • Typical DC Current Draw

    5 VDC, 2.0 A Power Supply
    4.25W max

  • Cooling

    Convection

  • Enclosure

    Metal (Steel ends, Aluminum extrusion)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (estimate)

  • Dimensions (HxWxD)

    1.18 x 2.75 x 3.85" (3 x 6.99 x 9.78cm) (Depth excludes connectors)

  • Weight

    0.75 lbs (0.34kg)

  • UPC Code

    608415712039

About Hall Research UH-BTX-R

Where high-quality video and control signal extension is a necessity, the UH-BT and UH-BTX family of HDBaseT compliant Senders and Receivers stand out. These devices are expertly designed to extend uncompressed HDMI video and RS-232 control signals over significant distances. Specifically, the -BT models can extend signals up to 230 feet, while the -BTX models can reach up to 328 feet, all through a single CAT5e/CAT6 UTP cable.

The UH-BTX-R 328' HDMI Receiver with RS-232 Control is a key component of this family. It is part of a pair that includes a Sender (-S) and a Receiver (-R), working together to extend all PC and HD resolutions without any compression. This includes the capability to extend up to 4K UHD, ensuring the highest quality video transmission.

In addition to video, the UH-BTX-R 328' HDMI Receiver also provides full-duplex RS-232 extension. This is facilitated via 3-pin terminal blocks, supporting all baud rates up to a swift 115,200 bps. This ensures seamless and efficient control signal transmission.

It's important to note that the UH-BT and UH-BTX Senders and Receivers are compatible with each other. However, the maximum distance achievable is determined by the lower of the two, either 230 feet or 70 meters. This flexibility and compatibility make the UH-BTX-R 328' HDMI Receiver with RS-232 Control an excellent choice for those seeking reliable, high-quality video and control signal extension solutions.

Hall Research UH-BTX-R Features

  • Extend HDMI or DVI over single Cat 5e/6 up to 330'
  • Optional Long Reach mode (BTX Only) to extend 1080p up to 492'
  • Utilizes HDBaseT Class B extension technology
  • Can connect to all HDBaseT and HDBaseT-Lite compliant products
  • Full HD support for 1080p deep color, 3D and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source
  • CEC pass-thru for simplified control among compatible devices
  • Uncompressed digital video extension guarantees 100% fidelity
  • Reliable, trouble free operation
  • Plug and Play - no user configuration required
  • Sturdy, compact metal enclosure with mounting provisions
  • Compatible with Locking HDMI connectors
  • Universal Power Supplies with Locking connectors

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your HDMI signal up to 328 feet with this reliable HDMI receiver, ensuring optimal performance.
  • Enjoy pristine 4K UHD video with this HDMI receiver, supporting resolutions up to 4K at 30Hz 4:4:4.
  • Control your devices remotely using the built-in RS-232 control feature of this HDMI receiver.
  • This HDMI receiver supports HDCP 1.4, ensuring compatibility with protected content and devices.
  • Experience seamless audio with all HDMI embedded audio formats supported by this HDMI receiver unit.
  • Durable metal enclosure protects this HDMI receiver, ensuring long-lasting reliability and performance.

What's in the box:

  • Hall Research UH-BTX-R 328' HDMI Receiver with RS-232 Control
  • 3-Pin Screw Terminal Connector
  • 5V DC at 2A Universal Power Supply
  • User Manual
  • Hall Research 3 Year Limited Warranty
