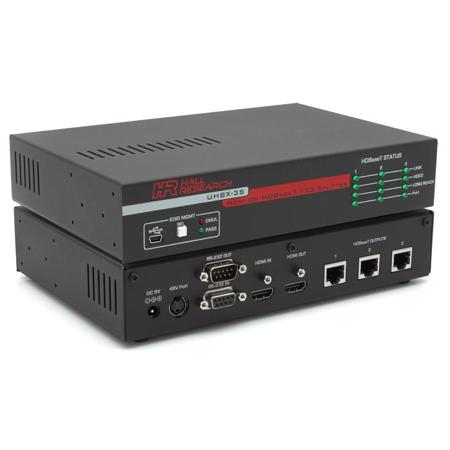

Hall Research UHBX-3S HDMI on HDBaseT 1x3 Splitter
Hall Research UHBX-3S Video #1
Hall Research UHBX-3S: Picture 1 thumbnail
See all Hall Research items

Hall Research UHBX-3S HDMI on HDBaseT 1x3 Splitter with Local Loop-Out, RS232 & PoH

SKU: HRUHBX3S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hall Research UHBX-3S Specifications

  • Input Port

    1x HDMI Female (Type A)

  • Output Port

    1x HDMI Female (Type A), 3 RJ45 connectors

  • Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth and 3D video)

  • Signal Type

    HDBaseT

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI signal - VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal - 480i through 1080p
    Digital Cinema 4K (4096 x 2160)

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru CEC for Consumer Electronics Control compatible devices

  • RS232

    Bidirectional (full-duplex) any baud rate up to 115,200

  • PoH

    Power-over-HDBaseT meets IEEE 802.3af standard. PD side identifies as Class 2 (3.84 6.49 watts). Actual power consumption of PD side is 5.5 watts max

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 3.2 A, regulated Actual DC current 1.6A max

  • Power

    Sender: 10.15 watts maximum

  • Temp/humidity

    Storage: -40 to 158 deg. F / -40 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Cooling

    Convection

  • Mounting

    Threaded nuts on bottom for rack-shelf mounting or optional rack ears

  • Enclosure Type

    Metal (Aluminum ends, Aluminum Extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (H x W x D)

    1.66 x 8.42 x 5.59" / 42.16 x 213.87 x 141.99mm

  • Weight

    2.5lbs / 1.13kg

  • UPC Code

    724696529965

About Hall Research UHBX-3S

The UHBX-3S is an HDMI splitter with one local HDMI output and 3 HDBaseT outputs for extension to compatible receivers up to 150 meters using a single UTP. The Splitter supports HDCP, 3D, Deep Color and CEC. EDID management is integrated into the unit with "Pass-thru", "Learn" and "Emulate" features. Advanced users can use the USB port to download, edit and upload EDID data to and from the device. The unit provides an RS-232 port that can individually address and control remote displays that feature RS-232 interface. The UHBX-3S provides convenient front panel LED status indicators for all HDBaseT parameters to quickly verify proper operation.

The UHBX-3S supports PoH (Power over HDBaseT) using an optional (sold separately) external 48 v DC power supply (part number 511-PS4812). Compatible receivers are powered from the sender using PoH standard so no additional power supplies are needed. The HDBaseT compliant PoH performs all necessary low voltage handshakes prior to injecting supply on the UTP line for maximum reliability, safety and compliance. Compatible receivers include the economical UH-1BT-R & UH-1BTX-R for HDMI only OR UHBX-R-PD that supports RS-232, PoH and Long Reach modes.

Hall Research UHBX-3S Features

  • Extend HDMI video to 3 remote displays using HDBaseT
  • Use a single UTP cable to extend video to 100 meters (330 ft)
  • Can send 1080p to 150 meters (500 ft) to Long Reach capable receivers
  • Supports virtually all HDMI and DVI resolutions
  • Local HDMI output for direct connection to a local display
  • EDID management with USB port for EDID manipulation using a PC
  • RS-232 port for sending commands to remote displays
  • Power-over-HDBaseT meets IEEE 802.3af standard

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research UHBX-3S HDMI on HDBaseT 1x3 Splitter with Local Loop-Out
  • RS232 & PoH
  • +5V Power Supply
  • 1m HDMI Cable
  • Male to Female RS-232 Cable
  • Hall Research 2 Year Parts & Labor Warranty
