Hall Research UHBX-8X8-Port HDMI Sender on HDBaseT with IR, RS-232 and IP Control, 1RU Rack Mountable

Where high-quality video transmission is a necessity, the UHBX-8X 8-Port HDMI Sender on HDBaseT stands out. This 1RU rack-mountable unit effortlessly converts eight HDMI inputs into corresponding HDBaseT outputs, enabling video extension up to 150 meters (500 ft) on a single UTP.

The UHBX-8X is a powerhouse of features, supporting HDCP, 3D, Deep Color, CEC, and 4K (UHD) resolutions, ensuring your video quality remains uncompromised. It is compatible with a range of receivers, including the cost-effective, self-powered UH-1BT-R and UH-1BTX-R, which extend HDMI to 230 ft or 330 ft respectively. The UHBX-R-PD receiver is another compatible option, supporting RS-232, IR, PoH, and Long Reach modes up to 500 ft.

When paired with receivers featuring PoH function, a single optional 48v power supply (part number: 511-PS4812) is all that's needed for the 8-channel sender. This HDMI sender also provides both IP (Ethernet) and RS-232 ports for control, allowing users to send RS-232 or IR commands to any of the receivers to control the remote display.

The UHBX-8X is not just about transmission; it's also about control. It can create IR commands via RS-232 or IP control ports and provides a jack for an IR detector cable. The IR signals received can be routed to any one or combination of outputs. With eight separate IR emitter ports on the rear, users can connect IR detectors at each remote location, making it ideal for controlling multiple sources in a rack with the UHBX-8X.

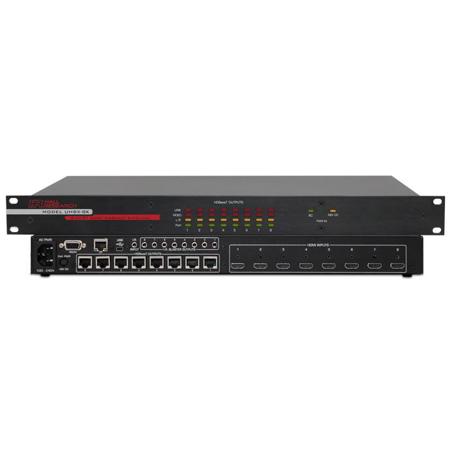

Constructed as a 1RU rack-mountable unit, the UHBX-8X comes with a built-in power supply. LED indicators on the front panel display Link Status, HDCP status, Long Reach, and Power for each of the eight outputs. Proudly designed and manufactured in the USA, the UHBX-8X can be used standalone or in tandem with the Hall Research 8x8 HDMI matrix for additional cross-point capabilities.

In conclusion, the UHBX-8X 8-Port HDMI Sender on HDBaseT is a versatile, high-performance solution for your video transmission needs, delivering superior control and uncompromised video quality.
