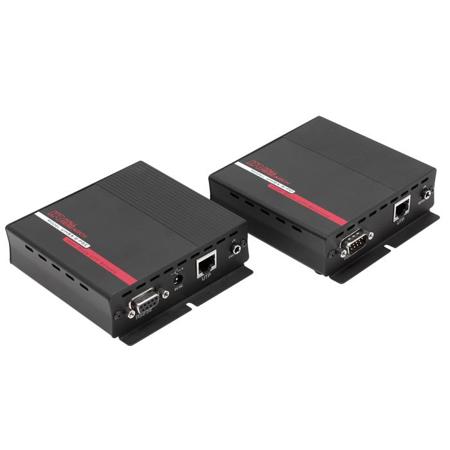

Hall Research UHBX-P1 HDMI Over UTP Extender with HDBaseT and PoH (Sender + Receiver)

SKU: HRUHBXP1 MFR: UHBX-P1
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 500ft with this HDBaseT extender, perfect for large venues.
  • Enjoy pristine 4K video with HDMI over UTP, ensuring top-notch performance and compatibility.
  • Power over HDBaseT (PoH) simplifies setup, delivering both power and signal through one cable.
  • Bi-directional RS232 control lets you remotely manage devices, enhancing connectivity options.
  • IR extension in both directions offers seamless control of your source and display devices.
  • This HDMI extender supports all HDMI embedded audio formats, including Dolby and DTS-HD.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-P1 Specifications

  • Max Distance

    Standard Mode (STD): 330' / 100.59m
    Long Reach Mode (LR) : 500' / 152.40m

  • Video Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal Type

    TMDS

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI: VGA (640x480) to WUXGA (1920x1200)

  • HDTV 480i to 1080p

    Digital Cinema: 4K (4096x2160)

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru DDC for Consumer Electronics Control compatible devices

  • RS232

    Bi-directional (full-duplex) any baud rate Up to 115,200

  • IR

    Extended in both directions. Carrier modulation range from 30 KHz to 60KHz

  • PoH

    Power-over-HDBaseT meets IEEE 802.3af standard. PD side identifies as
    Class 2 (3.84 6.49 watts). Actual power consumption of PD side is 5.5 watts
    max

  • Cooling

    Convection

  • Mounting

    End plates have L bracket with hole for surface mounting

  • Enclosure

    Metal (Steel ends and Aluminum extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90000 hours (Calculated Estimate)

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 3.2 A, regulated
    Actual DC current (powering both PSE and PD sides) 1.8A max

  • Power

    Sender: 3.5 watts (12 BTU) maximum
    Receiver: 5.5 watts (19 BTU) maximum

  • Temperature

    Storage:-40 to 158 deg. F / -4 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Dimensions (H x W x D)

    1.18 x 4.13 x 4.57" / 29.97 x 104.90 x 116.08mm Depth excludes connectors

  • Weight

    Sender: 9.3oz / 263.65g
    Receiver:10oz / 283.49g

About Hall Research UHBX-P1

You can revolutionize your audio-visual experience with the UHBX-P1 HDMI Over UTP Extender, a high-quality and reliable kit from Hall Research. This advanced extender kit, comprising of UHBX-S-PSE (sender) and UHBX-R-PD (receiver), employs the innovative HDBaseT technology to transmit HDMI, IR, and bi-directional RS-232 signals over long distances.

With the UHBX-P1, you can effortlessly send high-definition video and audio, as well as control signals, up to 500 feet (150 meters) on a single Cat6 cable. This makes it a cost-effective and efficient solution for transmitting high-definition signals without the need for bulky coaxial cables.

The UHBX-P1 extender kit is equipped with PoH (Power-over-HDBaseT) technology, which allows it to transmit power to the receiver over the same cable. This eliminates the need for an additional power source, making the installation process simpler and more streamlined.

This durable extender kit supports DVI and HDMI signals of virtually any resolution up to 4K x 2K to 330 feet (100 meters) in standard mode. In Long Reach mode, it supports resolutions up to 1920x1080 to 500 feet (150 meters), making it a versatile choice for various audio-visual setups.

The UHBX-P1 extender kit also features full-duplex RS232 Serial Port extension that can operate at any baud rate to 115,200, independent of video activity. It also extends IR from one end to the other, providing compatibility with virtually any standard and supporting a modulation range from 30 KHz to 60 KHz.

Housed in compact and sturdy metal enclosures, the UHBX-P1 extender kit is designed and manufactured in the USA, ensuring its reliability and durability. It also comes with convenient mounting provisions for easy installation.

The UHBX-P1 extender kit is a testament to the power of advanced technology, offering a seamless and high-quality audio-visual experience. Whether you're setting up a home theater or a professional audio-visual system, the UHBX-P1 HDMI Over UTP Extender with HDBaseT and PoH is a reliable and high-quality choice.

Hall Research UHBX-P1 Features

  • Extends HDMI or DVI video to 500 ft on just one Cat6
  • Includes RS232 and IR extension in both directions
  • Supports virtually all HDMI and DVI resolutions including 4Kx2K
  • Only one end requires power, other side is powered via UTP
  • Power-over-HDBaseT meets IEEE 802.3af standard
  • Sturdy metal enclosures with mounting provisions
  • Complies fully with HDBaseT standard
  • Runs from just one +5vDC supply
  • RS232 Supports all baud rates regardless of presence of video
  • IR extension is carrier frequency agnostic and supports 30 KHz to 60 KHz modulation to provide compatibility across all IR standards
  • Fully isolates ground between TX and RX sides
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend HDMI signals up to 500ft with this HDBaseT extender, perfect for large venues.
  • Enjoy pristine 4K video with HDMI over UTP, ensuring top-notch performance and compatibility.
  • Power over HDBaseT (PoH) simplifies setup, delivering both power and signal through one cable.
  • Bi-directional RS232 control lets you remotely manage devices, enhancing connectivity options.
  • IR extension in both directions offers seamless control of your source and display devices.
  • This HDMI extender supports all HDMI embedded audio formats, including Dolby and DTS-HD.

What's in the box:

  • Hall Research UHBX-P1 HDMI Over UTP Extender
  • 1m HDMI Cable
  • 5vDC Power Adapter
  • Hall Research 2 Year Limited Warranty
