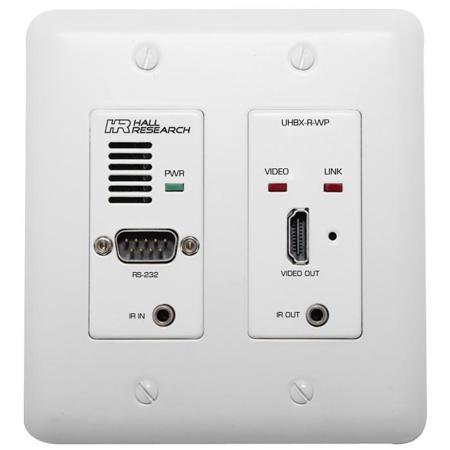

Hall Research UHBX-R-WP HDBaseT Wall Plate Receiver with IR, RS-232 and PoH

SKU: HRUHBXRWP MFR: UHBX-R-WP
Earn VIP Reward Points

Key Features

  • Achieve seamless AV integration with this HDBaseT receiver wall plate for simplified setups.
  • Enjoy crystal-clear audio with formats like LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
  • This HDBaseT Wall Plate Receiver supports up to 4K/30 or 4K/60 (4:2:0) resolutions for stunning video.
  • Bi-directional IR pass-through lets you control devices remotely, adding convenience to your setup.
  • With pass-thru DDC, EDID reading from the connected TV/Display is simple, plus HDCP handshake.
  • Durable metal enclosure ensures long-term reliability and efficient cooling for continuous operation.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$119.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-R-WP Specifications

Video
  • Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 and 2.0 video specifications including 12 bit color depth, 3D video and 4K/30 or 4K/60 4:2:0)

  • Signal type

    TMDS

  • Connectors

    Locking HDMI

  • Resolutions

    DVI signal: VGA (640x480) thru WUXGA (1920x1200)
    HDTV signal: 480i through 4K/30 (or 4K/60 4:2:0)
    Supports 4K at 60 Hz (4:2:0 8 bit color) or 4K at 30 Hz (4:4:4 and 8 bit color)

  • Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

Other Signals

Jump to...
  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected TV/Display and HDCP handshake

  • CEC

    Pass-Thru

  • RS232

    Pass thru baud rate, 110 - 115200 bps

  • IR

    Bi-directional IR. Carrier modulation range from 30 KHz to 60 KHz

General

Jump to...
  • Power Consumption

    Rated PoE Class-2, 6 W

  • Temp/humidity

    Storage: -40 to 158 deg. F (-40 to 70 deg. C) / 10% to 90%, non-condensing
    Operating:32 to 122 deg. F (0 to 50 deg. C) / 10% to 90%, non-condensing

  • Cooling

    Convection plus temperature controlled variable speed forced air

  • Enclosure type

    Metal (includes metal 2-gang Decora faceplate and plastic mud ring)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (HxWxD)

    5.00 x 4.72 x 1.18" (12.70 x 11.99 x 3.00cm)

  • Weight

    8 oz (226.80g)

About Hall Research UHBX-R-WP

Experience the seamless integration of high-definition audio and video transmission with the UHBX-R-WP HDBaseT Wall Plate Receiver. This high-quality, durable receiver is designed for professional installations where space is at a premium, fitting snugly into shallow wall spaces without compromising functionality.

The UHBX-R-WP extends HDMI, IR, and RS-232 signals up to an impressive 150 meters (500 feet), ensuring reliable long-distance connectivity. Its innovative Power over HDBaseT (PoH) feature allows the receiver to be powered directly from a compatible HDBaseT Transmitter, such as the Hall Research UHBX-S-PSE, eliminating the need for an additional power supply and streamlining the installation process.

User-friendly by design, this wall plate receiver includes RS-232 and bi-directional IR ports, providing versatile control options for a variety of audio and video equipment. The unit's compatibility with a wide range of interfaces underscores its versatility, making it an ideal choice for diverse installation requirements.

The UHBX-R-WP also boasts a Mini-USB port concealed within its enclosure, which serves as a gateway to the device's advanced settings. Through this port, you can access the Windows GUI software to monitor the HDBaseT input status, manage power settings, or update the firmware, ensuring your equipment remains at the cutting edge of technology.

For added convenience, a USB cable is included with the receiver, facilitating a straightforward connection to a Windows PC for software use. With its blend of innovative features and reliable performance, the UHBX-R-WP HDBaseT Wall Plate Receiver stands out as a smart choice for professionals seeking a user-friendly, high-performance solution for transmitting high-definition signals with ease.

Hall Research UHBX-R-WP Features

  • Extends uncompressed HDMI, RS232, and IR, up to 500 ft on a single CAT6 cable
  • Supports HDCP, 3D, Deep color, and 4K (UHD) video
  • Supports bidirectional RS232 and IR extension
  • Supports virtually all HDMI and DVI PC and HDTV resolutions
  • PoH powered from the sender, no additional power supply needed
  • Meets IEEE 802.3af standard for Power-over-HDBaseT (PoH)
  • Complies fully with HDBaseT standard
  • IR extension supports 30 KHz to 60 KHz modulation to provide compatibility across all IR standards
  • Fully isolates ground between TX and RX sides
  • Compact, Rugged, Reliable, and Economical
  • Made in the USA

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Achieve seamless AV integration with this HDBaseT receiver wall plate for simplified setups.
  • Enjoy crystal-clear audio with formats like LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
  • This HDBaseT Wall Plate Receiver supports up to 4K/30 or 4K/60 (4:2:0) resolutions for stunning video.
  • Bi-directional IR pass-through lets you control devices remotely, adding convenience to your setup.
  • With pass-thru DDC, EDID reading from the connected TV/Display is simple, plus HDCP handshake.
  • Durable metal enclosure ensures long-term reliability and efficient cooling for continuous operation.

What's in the box:

  • Hall Research UHBX-R-WP HDBaseT Wall Plate Receiver
  • 3' Type A USB to Mini-USB Cable
  • Mud Ring
  • User's Manual
  • Hall Research 3 Year Limited Warranty
