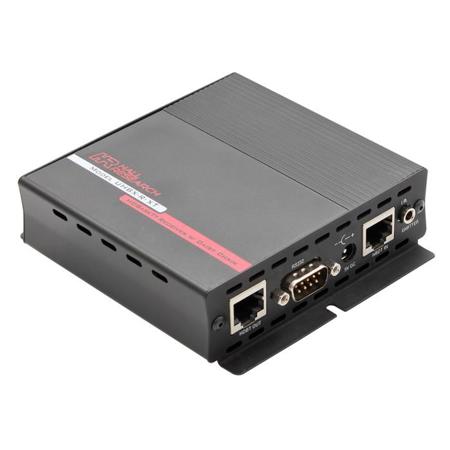

Hall Research UHBX-R-XT Daisy Chainable HDBaseT Receiver with IR and RS-232 Control

For professionals seeking a high-performance, award-winning HDBaseT Receiver, the UHBX-R-XT Daisy Chainable HDBaseT Receiver with IR and RS-232 Control is an exceptional choice. This advanced device integrates an HDBaseT transmitter, allowing for seamless connection to downstream HDBaseT receivers in a daisy-chain configuration.

The UHBX-R-XT is equipped with a local HDMI output for high-quality video transmission and an RS-232 port for comprehensive display control. It also extends IR signals, broadcasting any IR signal detected at the source to all receivers in the chain (note: IR cables are sold separately).

The RS-232 port is not just a feature, but a powerful tool that can send commands such as power on/off to compatible displays and projectors. This can be executed automatically by detecting video or directed by an external Serial Control Device using Hall Research's user-friendly command set.

When under external control, each receiver in the daisy chain can be individually addressed, allowing for specific commands to be sent to a particular node. To facilitate this, each receiver in the chain is assigned a unique address.

The UHBX-R-XT also includes a Mini-USB port for assigning the box address, configuring the operation mode, uploading internal commands for automatic on/off control, and more.

For users looking to maximize the product's control capabilities, a free Windows GUI software is available on the product's webpage.

The UHBX-R-XT stands out for its impressive range. The distance between receivers in a daisy chain can reach up to 100 meters (328 ft). However, if the video is limited to 1080p (24 bit color or 8bits/color), the "Long Reach" function can be utilized, allowing UTP cables of up to 150 meters (500 ft) between consecutive receivers in the daisy-chain. Please note, the Long-Reach mode does not support 4K or deep color.

In summary, the UHBX-R-XT Daisy Chainable HDBaseT Receiver with IR and RS-232 Control is a robust, feature-rich solution for advanced video and display control.
