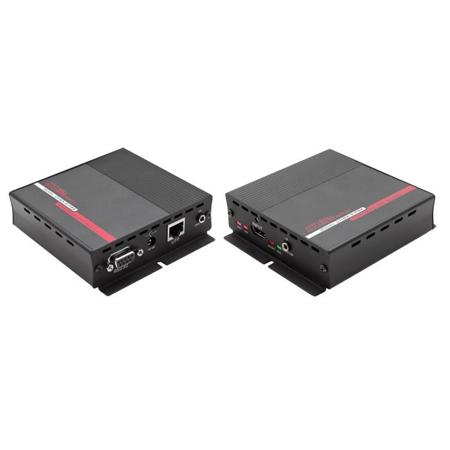

Hall Research UHBX-S-PSE HDMI+RS232+IR+PoH UTP Sender with Power Supply
See all Hall Research items

Hall Research UHBX-S-PSE HDMI+RS232+IR+PoH UTP Sender with Power Supply

SKU: HRUHBXSPSE
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Hall Research UH2X-S-PSE: Picture 1 regular
Hall Research UH2X-S-PSE HDMI + USB + LAN over UTP Sender with HDBaseT and PoH
$421.00$399.95
Hall Research UHBX-S: Picture 1 regular
Hall Research UHBX-S HDMI Video Sender with Bidirectional IR and RS232
$327.00$310.65
Hall Research UHBX-SW3-S: Picture 1 regular
Hall Research UHBX-SW3-S VGA, HDMI, MHL Auto-Switching Transmitter with HDBaseT
$961.95$913.85
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hall Research UHBX-S-PSE Specifications

  • Max Distance

    Standard Mode (STD): 330' / 100.59m
    Long Reach Mode (LR): 500' / 152.40m

  • Video Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal Type

    TMDS

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI: VGA (640x480) to WUXGA (1920x1200)
    HDTV: 480i to 1080p
    Digital Cinema: 4K (4096x2160)

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru DDC for Consumer Electronics Control compatible devices

  • RS232

    Bi-directional (full-duplex) any baud rate Up to 115,200

  • IR

    Extended in both directions. Carrier modulation range from 30 KHz to 60 KHz

  • PoH

    Power-over-HDBaseT meets IEEE 802.3af standard. PD side identifies as Class 2 (3.84 6.49 watts). Actual power consumption of PD side is 5.5 watts max

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 3.2 A, regulated, Actual DC current (powering both PSE and PD sides) 1.8A max

  • Power

    3.5 watts (12 BTU) maximum

  • Temp/humidity

    Storage: -40 to 158 deg. F / -40 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Cooling

    Convection

  • Mounting

    End plates have L bracket with hole for surface mounting

  • Enclosure

    Metal (Steel ends and Aluminum extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (H x W x D)

    1.18 x 4.13 x 4.57" / 29.97 x 104.90 x 116.08mm (Depth excludes connectors)

  • Weight

    9.3oz / 263.65g

  • UPC Code

    724696530510

About Hall Research UHBX-S-PSE

UHBX-S-PSE Sender module when paired with compatible Receiver ( Hall Research model UHBX-R-PD ), can extend HDMI, bi-directional IR, full-duplex RS232 and PoH (power over HDBaseT) over distances of up to 150 meters (500 feet) using a single Cat6 cable. The pair can extend HDMI or single-link DVI video of virtually any resolution, to a maximum distance of 500 ft (150 m). Moreover, these extenders complies with Power-over-HDBaseT or PoH, hence only one end requires a power supply . The end identified as PSE (power sourcing equipment) injects power on to the Cat6 cable and the side identified as PD (powered device) is powered through the Cat6 cable.

The PSE side requires connection of an AC adapter that supplies 5v DC, while the PD or WP(wall plate) side is simply powered through the RJ45 connector from the opposite side. Full-duplex RS232 Serial Port extension is provided that can operate at any baud rate to 115,200 (independent of video activity). The extender can also extend IR from one end to the other. IR Detector and IR Emitter cables are sold separately. The IR extension preserves the modulation(carrier) frequency and provides compatibility to virtually any standard. It supports modulation range from 30 KHz to 60 KHz. UHBX-S-PSE is fully compatible with the following HDBaseT receiver from Hall Research - UHBX-R-PD Pair Sold as a kit

Hall Research UHBX-S-PSE Features

  • Extends HDMI or DVI video to 500 ft on just one Cat6
  • Includes RS232 and IR extension in both directions
  • Supports virtually all HDMI and DVI resolutions including 4Kx2K
  • Only one end requires power, other side is powered via UTP
  • Power-over-HDBaseT meets IEEE 802.3af standard
  • Sturdy metal enclosures with mounting provisions
  • Complies fully with HDBaseT standard
  • Runs from just one +5vDC supply
  • RS232 Supports all baud rates regardless of presence of video
  • IR extension is carrier frequency agnostic and supports 30 KHz to 60 KHz modulation to provide compatibility across all IR standards
  • Fully isolates ground between TX and RX sides
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research UHBX-S-PSE HDMI+RS232+IR+PoH UTP Sender with Power Supply
  • 1m HDMI Cable
  • 5vDC Power Adapter
  • Hall Research 2 Year Parts & Labor Warranty
