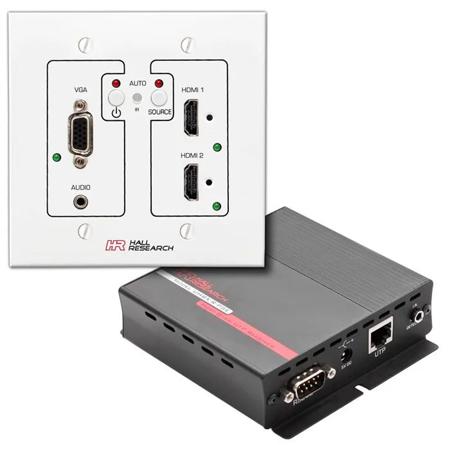

Hall Research UHBX-SW3 VGA, HDMI, MHL Auto-Switching Wall-Plate Sender with HDBaseT Receiver

SKU: HRUHBXSW3 MFR: UHBX-SW3
Earn VIP Reward Points

Key Features

  • Seamlessly switch between VGA, HDMI, and MHL inputs with this versatile KVM switch.
  • Extend your video signal up to 328 feet with HDBaseT technology using this HDMI extender.
  • Enjoy 4K UHD resolution support for crystal-clear visuals using our reliable KVM cables.
  • This HDBaseT receiver is HDCP compliant, ensuring secure content transmission every time.
  • Easily control your devices with programmable push buttons and RS-232 transmit features.
  • Auto-switching capability detects active inputs, making operation effortless with this adapter.
See More Product Details
Special Order?Estimated to Ship: 08/12/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-SW3 Specifications

  • Video Inputs

    2x HDMI (1 MHL), 1x HD15 (VGA or YPbPr)

  • Video Output

    HDBaseT (100m / 328.08' at 1080p)

  • Video Connectors

    HDMI Female, HD15 Female, RJ45 for HDBaseT output

  • Input Standards

    HDMI 1.4, MHL 2.0, DVI 1.0, VESA VGA, NTSC 3.58

  • HDCP Support

    Yes, v1.4 (Repeater)

  • Video Bandwidth

    HDMI 25MHz-300MHz TMDS Clock, VGA 350MHz, YPbPr

  • Supported Resolutions

    HDMI 480p to 4K UHD, MHL to 1080p, VGA 640x480 to 1920x1080, YPbPr

  • Audio Inputs

    Unbalanced stereo audio for VGA input (Line Level)

  • Audio Connectors

    3.5mm Mini-stereo, Female

  • Frequency Response

    20Hz - 20KHz

  • Control

    Mini-USB (GUI setup)
    Programmable push buttons (Input selection and Power toggle)
    RS-232 transmit
    IR transmit (pass-through or generated)
    Auto-switching, auto-power on/off available
    External keypad ("Aux CTRL") port

  • Power Supply

    Device is PoH 'PD' (Powered Device); receives power from compatible 'PSE' (Power Sourcing Equipment) Receiver

  • Power Consumption

    3.0A at 5V w/UHBX-R-PSE - 15 Watts max

  • Mounting

    2-Gang Low Voltage wallplate box
    Clearance: 3.7" Horizontal x 2.8" Vertical Opening

  • Supported VGA Resolutions

    Detailed Timings:
    1920 x 1080 60hz, 1360 x 768 60hz, 1280 x 720 60hz
    Established Timings:
    640 x 480 60hz, 800 x 600 60hz, 1024 x 768 60hz
    Standard Timings:
    1280 x 720 16:9, 1280 x 1024 5:4, 1280 x 960 4:3, 1280 x 800 16:10, 1600 x 1200 4:3, 1680 x 1050 16:10, 1440 x 900 16:10

About Hall Research UHBX-SW3

Because the UHBX-SW3 VGA, HDMI, MHL Auto-Switching Wall-Plate Sender with HDBaseT Receiver is a high-quality, durable, and efficient solution for your video transmission needs. This user-friendly kit is composed of a multi-input wall-plate sender and an HDBaseT receiver, designed to accommodate two HDMI and one VGA inputs with audio. The first HDMI input is also MHL (Mobile High-Definition Link) compatible, offering a phone-charging feature for seamless video presentations from your smartphone using a passive cable.

The VGA input is versatile, accepting YPbPr Component video, and is scaled to 1080p to ensure compatibility with various notebook or PC VGA formats. This eliminates potential issues with HDMI TV displays that may not support non-standard HDTV resolutions.

The UHBX-SW3 is designed to manually or automatically switch between various inputs, extending the video using the HDBaseT standard. It supports virtually all VGA and HDMI resolutions, including 4K (UHD). It can extend 4K video up to 330 ft (100m) and 1080p signals as far as 500 ft (150m), making it an ideal solution for large spaces like conference rooms or home theaters.

The wall-plate sender is powered through the same cable from the receiver using the PoH (Power-over-HDBaseT) standard, simplifying the installation process. The UHBX-R-PSE receiver, included in the kit, provides HDMI, RS-232, and IR outputs.

For added convenience, the wall-plate can generate RS232 and IR control signals, extended using the same Cat6 cable, to control the power on/off function of the remote display. The system can manually or automatically control the power on/off function of the remote display, issuing ON or OFF commands based on video detection and programmed delay.

The UHBX-SW3 also features an IR detector that can extend the IR signal to the remote receiver, allowing you to use an IR remote pointed at the wall-plate to control the TV.

Designed and manufactured in the USA, the UHBX-SW3 VGA, HDMI, MHL Auto-Switching Wall-Plate Sender with HDBaseT Receiver is a testament to Hall Research's expertise in high-definition analog and digital video scaling and extension technologies. It fully complies with HDBaseT Alliance's design specifications and can be connected to displays or projectors with HDBaseT inputs without the need for an external receiver.

Hall Research UHBX-SW3 Features

  • 3 inputs handle VGA, Component, HDMI (or DVI) and even MHL
  • Supports phone charging feature if MHL source is detected
  • VGA input is scaled to 1080p or user specified output resolution to ensure proper image
  • Supports all HDMI resolutions including 4K (UHD)
  • Can scale HDMI output resolution
  • Uses only one Cat6
  • Distance to 500 ft (150m) at 1080p, or 330 ft (100m) at 4K resolution
  • Manual or automatic input selection
  • IR Extension
  • Can issue its own RS-232, IR, or CEC command to turn display On or Off
  • Display power control can be manual or automatic
  • Wall plate does not require separate power supply, powered using PoH through the same Cat6 cable
  • USB port for configuration (including display power on/off control methodology)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch between VGA, HDMI, and MHL inputs with this versatile KVM switch.
  • Extend your video signal up to 328 feet with HDBaseT technology using this HDMI extender.
  • Enjoy 4K UHD resolution support for crystal-clear visuals using our reliable KVM cables.
  • This HDBaseT receiver is HDCP compliant, ensuring secure content transmission every time.
  • Easily control your devices with programmable push buttons and RS-232 transmit features.
  • Auto-switching capability detects active inputs, making operation effortless with this adapter.

What's in the box:

  • Hall Research UHBX-SW3 VGA
  • HDMI
  • MHL Auto-Switching Wall-Plate Sender with HDBaseT Receiver
  • Hall Research 3 Year Limited Warranty
