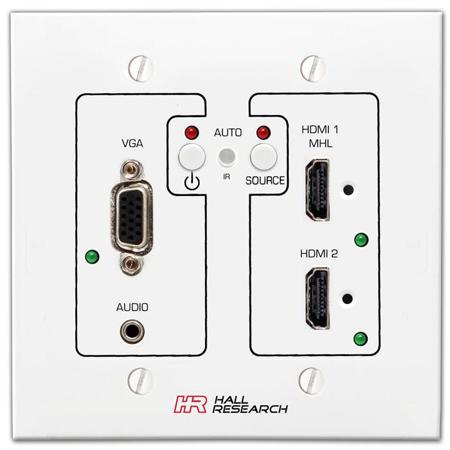

Hall Research UHBX-SW3-WP VGA, HDMI, MHL Auto-Switching Wall-Plate with HDBaseT Output

SKU: HRUHBXSW3WP MFR: UHBX-SW3-WP
Earn VIP Reward Points

Key Features

  • This HDBaseT Wall-Plate supports HDMI, VGA, and MHL inputs for versatile connectivity.
  • Enjoy auto-switching functionality; this wall plate automatically selects active inputs.
  • Control your display with programmable push buttons for input selection and power toggle.
  • This VGA, HDMI wall plate supports up to 4K UHD resolution for crystal-clear video.
  • Utilize the RS-232 and IR transmit features for advanced control system integration.
  • Power over HDBaseT (PoH) simplifies installation by using a single cable for power.
See More Product Details
Special Order?Estimated to Ship: 09/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$94.99

2 Year

$159.00

3 Year

$239.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-SW3-WP Specifications

  • Video Inputs

    2x HDMI (1 MHL), 1x HD15 (VGA or YPbPr)

  • Video Connectors

    HDMI Female, HD15 Female, RJ45 for HDBaseT output

  • Input Standards

    HDMI 1.4, MHL 2.0, DVI 1.0, VESA VGA, NTSC 3.58

  • HDCP Support

    Yes, v1.4 (Repeater)

  • Supported Resolutions

    HDMI 480p to 4K UHD, MHL to 1080p, VGA 640x480 to 1920x1080, YPbPr

  • Audio Inputs

    Unbalanced stereo audio for VGA input (Line Level)

  • Audio Connectors

    3.5mm Mini-stereo, Female

  • Frequency Response

    20Hz - 20KHz

  • Control

    Mini-USB (GUI setup)
    Programmable push buttons (Input selection and Power toggle)
    RS-232 transmit
    IR transmit (pass-through or generated)
    Auto-switching, auto-power on/off available
    External keypad ("Aux CTRL") port

  • Power Supply

    Device is PoH 'PD' (Powered Device); receives power from compatible 'PSE' (Power Sourcing Equipment) Receiver

  • Power Consumption

    3.0A at 5V with UHBX-R-PSE - 15 Watts max

  • Supported VGA Resolutions

    Detailed Timings:
    1920 x 1080 60hz, 1360 x 768 60hz, 1280 x 720 60hz
    Established Timings:
    640 x 480 60hz, 800 x 600 60hz, 1024 x 768 60hz
    Standard Timings:
    1280 x 720 16:9, 1280 x 1024 5:4, 1280 x 960 4:3, 1280 x 800 16:10, 1600 x 1200 4:3, 1680 x 1050 16:10, 1440 x 900 16:10

  • Mounting

    2-Gang Low Voltage wallplate box
    Clearance: 3.7" Horizontal x 2.8" Vertical Opening

About Hall Research UHBX-SW3-WP

Enhance your audio-visual experience with the sleek and modern UHBX-SW3-WP VGA, HDMI, MHL Auto-Switching Wall-Plate with HDBaseT Output. This high-tech, advanced, and user-friendly device is a multi-input switcher/sender that seamlessly accommodates two HDMI and one VGA inputs with audio, making it an ideal solution for your home theater, conference room, or classroom needs.

The first HDMI input of this wall-mounted unit supports MHL (Mobile High-Definition Link), complete with a phone-charging feature. This allows you to present videos from your smartphone using just a passive cable, adding convenience and versatility to your setup. The VGA input also accepts YPbPr Component video, ensuring compatibility with a wide range of devices.

With the UHBX-SW3-WP, you can manually or automatically switch between various inputs and extend your video using the HDBaseT standard. This technology allows for long-distance transmission of high-definition video and audio signals, eliminating the need for additional cables. It supports virtually all VGA and HDMI resolutions, including 4K (UHD), and can extend 4K video up to 330 ft (100m) and 1080p signals as far as 500 ft (150m).

To simplify installations, the wall-plate is powered through the same cable from the receiver using PoH (Power-over-HDBaseT) standard. The included UHBX-R-PSE receiver comes with a small power supply and provides HDMI, RS-232, and IR outputs.

The wall-plate's VGA input is scaled to 1080p to ensure a proper image on the display, eliminating compatibility issues with various notebook or PC VGA formats. Additionally, the unit can be configured to pass-through 3.5 mm audio input from an MP3 audio player independent of the VGA signal.

The UHBX-SW3-WP also offers manual or automatic control of the power on/off function of the remote display. In automatic power mode, the wall-plate will issue the desired ON command when a video is detected on the input, and can issue an OFF command after a programmed delay if there is no video. The power commands can be RS232, IR, or CEC based on your needs.

A USB port is provided on the wall-plate for programming using Hall Research's free Windows GUI software. This allows you to select the control method and to enter the commands. Additionally, the wall-plate features an IR detector that can extend the IR signal to the remote receiver, enabling you to control your TV using an IR remote pointed at the wall-plate.

The UHBX-SW3-WP is fully compliant with HDBaseT Alliance's design specifications and can be connected to displays or projectors with HDBaseT inputs without the need for an external receiver. This product is a testament to Hall Research's expertise in high-definition analog and digital video scaling and extension technologies and is proudly designed and manufactured in the USA.

Hall Research UHBX-SW3-WP Features

  • 3 inputs handle VGA, Component, HDMI (or DVI) and even MHL
  • Supports phone charging feature if MHL source is detected
  • VGA input is scaled to 1080p or user specified output resolution to ensure proper image
  • Supports all HDMI resolutions including 4K (UHD)
  • Can scale HDMI output resolution
  • Uses only one Cat6
  • Distance to 500 ft (150m) at 1080p, or 330 ft (100m) at 4K resolution
  • Manual or automatic input selection
  • IR Extension
  • Can issue its own RS-232, IR, or CEC command to turn display On or Off
  • Display power control can be manual or automatic
  • Wall plate does not require separate power supply, powered using PoH through the same Cat6 cable
  • USB port for configuration (including display power on/off control methodology)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • This HDBaseT Wall-Plate supports HDMI, VGA, and MHL inputs for versatile connectivity.
  • Enjoy auto-switching functionality; this wall plate automatically selects active inputs.
  • Control your display with programmable push buttons for input selection and power toggle.
  • This VGA, HDMI wall plate supports up to 4K UHD resolution for crystal-clear video.
  • Utilize the RS-232 and IR transmit features for advanced control system integration.
  • Power over HDBaseT (PoH) simplifies installation by using a single cable for power.

What's in the box:

  • Hall Research UHBX-SW3-WP VGA
  • HDMI
  • MHL Auto-Switching Wall-Plate with HDBaseT Output
  • Hall Research 3 Year Limited Warranty
