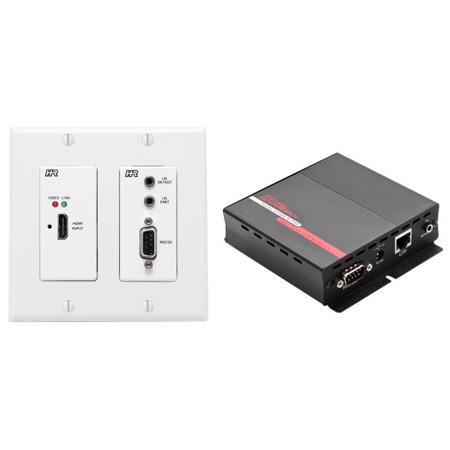

Hall Research UHBX-WPC-P2 HDMI+RS232+IR Wall Plate Transmitter and PSE Receiver

SKU: HRUHBXWPCP2 MFR: UHBX-WPC-P2
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 330ft with this reliable KVM cable and switch solution.
  • Enjoy full control with RS232 and IR pass-through, perfect for remote device management.
  • Supports up to 4K resolution for crystal-clear visuals using advanced HDMI connectivity.
  • Power over HDBaseT (PoH) simplifies setup, reducing cable clutter for a cleaner workspace.
  • Bi-directional RS232 ensures seamless communication between devices with this KVM.
  • Durable metal enclosure protects against wear and tear, ensuring long-lasting performance.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UHBX-WPC-P2 Specifications

  • Max Distance

    Standard Mode (STD): 330' / 100.59m
    Long Reach Mode (LR) : 500' / 152.40m

  • Video Standards

    DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)

  • Signal Type

    TMDS

  • Connectors

    Locking HDMI

  • Video Resolutions

    DVI: VGA (640x480) to WUXGA (1920x1200)
    HDTV: 480i to 1080p
    Digital Cinema: 4K (4096x2160)

  • Audio Formats

    All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)

  • DDC

    Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake

  • CEC

    Pass-Thru DDC for Consumer Electronics Control compatible devices

  • RS232

    Bi-directional (full-duplex) any baud rate Up to 115,200

  • IR

    Extended in both directions. Carrier modulation range from 30 KHz to 60 KHz

  • PoH

    Power-over-HDBaseT meets IEEE 802.3af standard. PD side identifies as Class 2 (3.84-6.49 watts). Actual power consumption of PD side is 5.5 watts max

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 3.2 A, regulated, Actual DC current (powering both -PSE and -PD sides) 1.8A max

  • Power

    Sender: 3.5 watts (12 BTU) maximum, Receiver: 5.5 watts (19 BTU) maximum

  • Temp/humidity

    Storage: -40 to 158 deg. F / -40 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Cooling

    Convection

  • Mounting

    End plates have L bracket with hole for surface mounting

  • Enclosure

    Metal (Steel ends and Aluminum extrusion)

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE, FCC Class A

  • MTBF

    90,000 hours (Calculated Estimate)

  • Dimensions (H x W x D)

    1.18 x 4.13 x 4.57" / 29.97 x 104.90 x 116.08mm (Depth excludes connectors)

  • Weight

    Sender: 9.3oz / 263.65g
    Receiver: 10oz / 283.49g

About Hall Research UHBX-WPC-P2

Find the ultimate solution for extending your high-definition video and audio signals with the UHBX-WPC-P2 HDMI+RS232+IR Wall Plate Transmitter and PSE Receiver. This sophisticated extender kit harnesses the power of HDBaseT technology to seamlessly transmit HDMI, IR, and bi-directional RS-232 signals, along with PoH (Power-over-HDBaseT), across distances of up to 500 feet (150 meters) using a single Cat6 cable.

Crafted with a sleek and modern design, the UHBX-WPC-P2 is an amalgamation of the UHBX-SC-WP transmitter and UHBX-R-PSE receiver, both of which are encased in durable metal housings. The system's compact form factor is complemented by convenient mounting options, making it an ideal choice for professional installations where space and aesthetics are of paramount importance.

The UHBX-WPC-P2 is engineered to deliver exceptional performance and versatility. In its standard mode, it supports DVI and HDMI signals with resolutions up to 4K x 2K to 330 feet (100 meters), catering to the needs of ultra-high-definition content. For longer distances, the Long Reach mode ensures reliable transmission of 1080p resolutions up to 500 feet (150 meters), maintaining the clarity and quality of your video and audio.

This high-tech extender is designed and manufactured in the USA, ensuring top-notch quality and reliability. It operates efficiently with a single +5V power supply, internally generating 48V PoH in compliance with the IEEE 802.3af handshake. The PSE (power sourcing equipment) receiver unit provides power to the transmitter, simplifying installation and reducing cable clutter.

The UHBX-WPC-P2 also offers full-duplex RS232 Serial Port extension, capable of operating at any baud rate up to 115,200, independent of video activity. This feature ensures that your control signals are as reliable as your video, making it perfect for a variety of applications, from home theaters to professional AV setups.

For those requiring IR signal extension, the UHBX-WPC-P2 has you covered. While IR Detector and IR Emitter cables are available separately, the system's IR extension maintains the modulation (carrier) frequency, ensuring compatibility with almost any standard and supporting a modulation range from 30 KHz to 60 KHz.

With two user-selectable distance modes - Standard (default) and Long Reach - you have the flexibility to optimize performance based on the length of your UTP cable. For lengths less than 330 feet, the Standard mode is ideal, while distances exceeding that threshold are perfectly served by the Long Reach mode.

Choose the UHBX-WPC-P2 HDMI+RS232+IR Wall Plate Transmitter and PSE Receiver for a stylish, high-tech, and compact solution that brings unparalleled convenience and performance to your audiovisual installations.

Hall Research UHBX-WPC-P2 Features

  • Extends HDMI or DVI video to 500 ft. on just one Cat6
  • Includes RS232 and IR extension in both directions
  • Supports virtually all HDMI and DVI resolutions including 4Kx2K
  • Only one end requires power, other side is powered via UTP
  • Power-over-HDBaseT meets IEEE 802.3af standard
  • Sturdy metal enclosures with mounting provisions
  • Complies fully with HDBaseT standard
  • Runs from just one +5vDC supply
  • RS232 Supports all baud rates regardless of presence of video
  • IR extension is carrier frequency agnostic and supports 30 KHz to 60 KHz modulation to provide compatibility across all IR standards
  • Fully isolates ground between TX and RX sides
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend HDMI signals up to 330ft with this reliable KVM cable and switch solution.
  • Enjoy full control with RS232 and IR pass-through, perfect for remote device management.
  • Supports up to 4K resolution for crystal-clear visuals using advanced HDMI connectivity.
  • Power over HDBaseT (PoH) simplifies setup, reducing cable clutter for a cleaner workspace.
  • Bi-directional RS232 ensures seamless communication between devices with this KVM.
  • Durable metal enclosure protects against wear and tear, ensuring long-lasting performance.

What's in the box:

  • Hall Research UHBX-SC-WP Sender
  • UHBX-R-PSE Receiver
  • Power Supply
  • Power Cord
  • HDMI Cable
  • Manual
  • Hall Research 2 Year Limited Warranty
