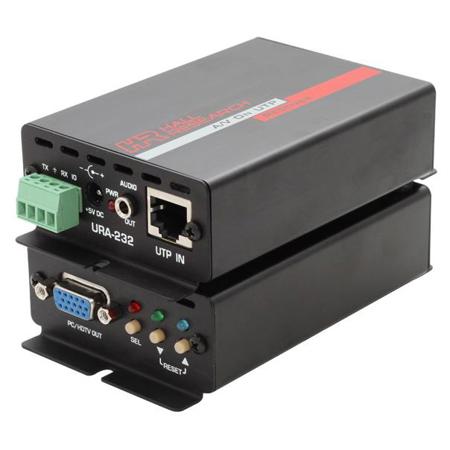

Hall Research URA-232 VGA + Audio + RS232 over UTP Receiver
See all Hall Research items

Hall Research URA-232 VGA + Audio + RS232 over UTP Receiver

SKU: HRURA232
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Hall Research URA-232-XT: Picture 1 regular
Hall Research URA-232-XT VGA + Audio + RS232 over UTP Receiver with Extension
$409.00$388.55
Hall Research URG-SKU: Picture 1 regular
Hall Research URG-SKU Video Over UTP Receiver with Skew Correction
$355.00$337.25
Hall Research UV232B-R: Picture 1 regular
Hall Research UV232B-R VGA & Bi-Directional RS-232 Receiver
$195.00$185.25
Hall Research VSA-51-R: Picture 1 regular
Hall Research VSA-51-R Receiver
$1,405.53
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hall Research URA-232 Specifications

  • Video Gain

    Unity

  • Video Standards

    VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)

  • Connectors

    1x RJ-45 Female (CATx Input)
    1x HD15 Female (Video Output)
    1x 3.5mm Female (Audio Output)
    1x 2.1mm Female (Power Input)
    1x 4 Position TB

  • Nominal Amplitude

    1 V p-p for Y of component video
    0.7 V p-p for RGB and for Pr and Pb of component video
    4.0 V to 5.0 V p-p, for TTL Sync signals of RGBHV, RGBS

  • Impedance

    75Ohms

  • Skew Compensation

    62ns

  • Resolution

    Up to 1920x1200 non-interlaced at 60Hz

  • Polarity

    Positive or Negative

  • Max Distance

    Up to 1000 feet depending on resolution

  • Audio Gain

    Unbalanced output: 0 dB

  • Frequency Response

    20hz to 20kHz, +/- 1 dB

  • Audio Type

    Monaural, Simulated Stereo (L+R)

  • THD + Noise

    0.2% at 1kHz, 0.3% at 20kHz at nominal level

  • Recommended Cable

    CAT 5/5e/6 (shielded or unshielded)

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2A regulated; 2.1mm

  • Temperature Humidity

    Storage: -40 to 158 deg. F / -40 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Cooling

    Convection, vents on each end

  • Mounting

    Brackets at each end with screw hole provided for Wall or Rack mounting

  • Enclosure

    Metal

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE/FCC Class A

  • MTBF

    90,000 hours

  • Dimensions (H x W x D)

    1.18 x 2.75 x 3.85" / 29.97 x 69.85 x 97.79mm (Depth excludes connectors Depth excludes connectors)

  • Weight

    0.75lbs / 0.34kg

About Hall Research URA-232

The URA-232 is a video, audio and uni-directional RS-232 over UTP receiver. The receiver is located at a distance from the AV/RS-232 source and connected to a compatible UTP sender or extender. The URA-232 has a digital input configurable as "Contact" or "Voltage". User defined serial strings can be sent depending on the state of the digital input and also remotely from a compatible UVA-232-4 or UVA-232-8 sender or via serial command. Using the remote capability, you can have URA-232 and URA-232-XT units daisy chained and talk to all the connected devices serially with each sending the same or completely different serial strings.

In a typical application the RS-232 port on the unit is used for transmit only to issue power commands to connected displays (the RS-232 RX pin is used for programming the URA-232 for remote trigger operation). There are 3 ways to issue commands.

Important note about use with YPbPr signal
Using the standard URA-232 with Component Video can produce a excessive brightness and contrast. Therefore, this unit is not recommended for use with Component Video (YPbPr). For use with YPbPr signals, please order the model URA-232-CP.

Hall Research URA-232 Features

  • Receives audio, video and uni-directional RS232 on a single UTP cable
  • Adjustable cable length compensation to 1000 ft.
  • RGB skew correction
  • Digitally controlled adjustment eliminates tweaking pots
  • Supports resolutions up to 1920x1200 at any refresh rate
  • Compact & rugged metal enclosure with mounting holes
  • Easily expandable by daisy-chaining receivers (URA-232-XT)
  • Configurable Discrete Input - Contact Closure or Voltage (5-30 vDC)
  • Software GUI

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research URA-232 VGA + Audio + RS232 over UTP Receiver
  • Universal 5 VDC at 2A Power Supply
  • IEC320 Power Cord
  • User's Manual
  • Hall Research 2 Year Parts & Labor Warranty
