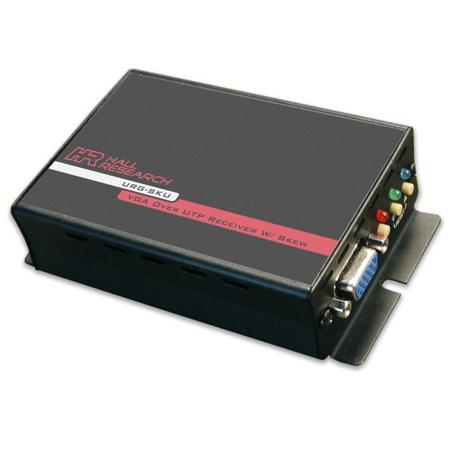

Hall Research URG-SKU Video Over UTP Receiver with Skew Correction

SKU: HRURGSKU MFR: URG-SKU
Earn VIP Reward Points

Key Features

  • Achieve reliable video signal extension up to 1000 feet using standard CAT5/6 cabling.
  • Enjoy high-resolution video up to 1920x1200 at 60Hz with this video format converter.
  • Easily correct skew issues, ensuring crystal-clear image quality with skew compensation.
  • Use this video receiver for versatile applications, supporting VGA to UXGA resolutions.
  • Simplify your setup with this video over UTP receiver, perfect for wall or rack mounting.
  • Get real-time video conversion with low THD+Noise, ensuring top-notch audio fidelity.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research URG-SKU Specifications

  • Video Gain

    Unity

  • Video Standards

    VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)

  • Connectors

    1x RJ-45 Female (CATx Input)
    1x HD15 Female (Video Output)
    1x 2.1mm Female (Power Input)

  • Nominal Amplitude

    1 V p-p for Y of component video
    0.7 V p-p for RGB and for Pr and Pb of component video
    4.0 V to 5.0 V p-p, for TTL Sync signals of RGBHV, RGBS

  • Impedance

    75Ohms

  • Skew Compensation

    65 nS

  • Resolution

    Up to 1920x1200 non-interlaced at 60Hz

  • Audio Gain

    Unbalanced output: 0 dB

  • Max Distance

    Up to 1000 feet depending on resolution

  • Frequency Response

    20hz to 20kHz, +/- 1 dB

  • Audio Type

    Monaural, Simulated Stereo (L+R)

  • THD + Noise

    0.2% at 1kHz, 0.3% at 20kHz at nominal level

  • Recommended Cable

    CAT 5/5e/6 (shielded or unshielded) for URA-XT and URA-SKU

  • Power Supply

    100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2A regulated; 2.1mm

  • Temperature Humidity

    Storage: -40 to 158 deg. F / -40 to 70 deg. C / 10% to 90%, non-condensing
    Operating: 32 to 122 deg. F / 0 to 50 deg. C / 10% to 90%, non-condensing

  • Cooling

    Convection, vents on each end

  • Mounting

    Brackets at each end with screw hole provided for Wall or Rack mounting

  • Enclosure

    Metal

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE/FCC Class A

  • MTBF

    90,000 hours

  • Dimensions (H x W x D)

    1.18 x 2.75 x 3.85" / 29.97 x 69.85 x 97.79mm Depth excludes connectors Depth excludes connectors

  • Weight

    0.75lbs / 0.34kg

About Hall Research URG-SKU

Find the URG-SKU Video Over UTP Receiver with Skew Correction, a high-performance derivative of the well-regarded URA-SKU. This advanced device is designed to receive a VGA signal over UTP or STP cable, extending up to an impressive 1,000 ft (300 meters) distance. It supports a wide range of resolutions, including the high-definition 1920x1200, ensuring clear and sharp image quality.

One of the standout features of the URG-SKU Receiver is its ability to compensate for high-frequency signal losses in the cable. This is achieved through Hall Research's most advanced 5-pole VGA equalization network, which meticulously restores the signal losses due to cable length, ensuring optimal video performance.

Another significant feature is its skew correction capability. VGA transmission over UTP cables can often result in skew due to differences in twist rates of the 4 pairs in the UTP cable. This skew can cause color misalignment in the received image. However, the URG-SKU Receiver can correct this skew digitally, using front panel buttons, resulting in a perfectly aligned, high-quality image.

The settings for both signal restoration and skew correction are stored in non-volatile memory, ensuring consistent performance. The URG-SKU Video Over UTP Receiver with Skew Correction is compatible with a variety of transmitters, including UV1-S, UV2-S, UV4-S, and UV8-S (including PE1 versions), providing flexibility and convenience for your video transmission needs.

Hall Research URG-SKU Features

  • Receives video on a single CATx cable
  • Compatible with UV1/2/4/8-S transmitters
  • Adjustable cable length compensation to 1000 ft.
  • Digitally controlled adjustment eliminates tweaking pots
  • Supports resolutions up to 1920x1200 at any refresh rate
  • Differential signaling eliminates ground loops and noise
  • Compact & rugged metal enclosure with mounting holes
  • Made in the USA

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve reliable video signal extension up to 1000 feet using standard CAT5/6 cabling.
  • Enjoy high-resolution video up to 1920x1200 at 60Hz with this video format converter.
  • Easily correct skew issues, ensuring crystal-clear image quality with skew compensation.
  • Use this video receiver for versatile applications, supporting VGA to UXGA resolutions.
  • Simplify your setup with this video over UTP receiver, perfect for wall or rack mounting.
  • Get real-time video conversion with low THD+Noise, ensuring top-notch audio fidelity.

What's in the box:

  • Hall Research URG-SKU Video over UTP Receiver with Skew Correction
  • Hall Research 2 Year Limited Warranty
