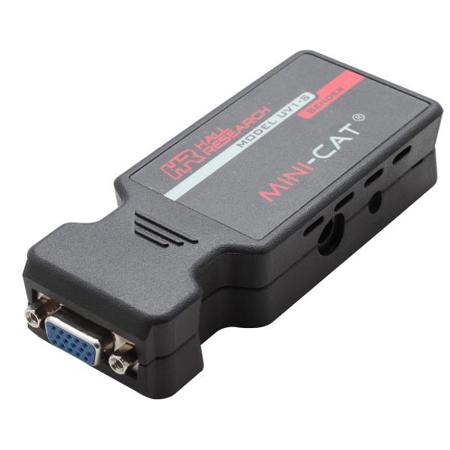

Hall Research Video Over UTP Sender
See all Hall Research items

Hall Research Video Over UTP Sender

SKU: HRUV1S
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Hall Research UHBX-SW3-S: Picture 1 regular
Hall Research UHBX-SW3-S VGA, HDMI, MHL Auto-Switching Transmitter with HDBaseT
$961.95$913.85
Hall Research UV1-SL: Picture 1 regular
Hall Research UV1-SL Video Over UTP Sender & Local Port
$269.00$255.55
Hall Research UV232A-4S: Picture 1 regular
Hall Research UV232A-4S 1x4 VGA + Audio + RS232 Over UTP Splitter
$539.00$512.05
Hall Research UV232A-8S: Picture 1 regular
Hall Research UV232A-8S 1x4 VGA + Audio + RS232 Over UTP Splitter
$995.00$945.25
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hall Research UV1-S Specifications

  • Power Supply

    From utility-power (mains) outlet, through included external power adapter. Output Voltage: 6V to 9V DC Center-Positive. Current requirement 500ma max

  • Max Distance

    Up to 500' / 152.40m for VGA and Component Video models or 2000' / 609.61m for Composite Video and Audio models

  • Resolutions

    Up to 1920 x 1440 non-interlaced at 60Hz

  • Standards

    VGA, SVGA, XGA or UXGA video

  • Bandwidth

    DC to 250MHz

  • Connectors

    HD15 female for video input and output, RJ45 for CAT5 outputs

  • Video Formats

    RGB and YPbPr, plus CV and line level stereo audio for UV1-SL

  • Compliance

    CE; FCC Part 15 Subpart B Class A, IC Class

  • Dimensions (H x W x D)

    0.8 x 1.7 x 4.5" / 2.03 x 4.32 x 11.43cm

About Hall Research UV1-S

The UV1-S converts a VGA signal into a Cat5 and sends this Cat5 signal to one of the following devices: (UV1-R and UV1-R-WP). The UV1-S is supplied phantom power via the Cat5 from the receiving unit or from a local power supply. The UV1-S can drive Cat5 cables of lengths of up to 500 feet (150 meters) with little to no degradation of video quality.

Hall Research UV1-S Features

  • Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
  • Amplifies the signal for clean and crisp transmission
  • Differential signaling eliminates ground loops and noise
  • Handles resolutions up to 1920x1440 at 60Hz
  • Rugged, Reliable, Compact size
  • Only one end requires power in most applications. Power supply can be connected at the sending or the receiving end, whichever convenient
  • Drive standard Cat5 cables to 500 feet for (VGA and Component Video) or to 2000 feet for (Composite Video and Audio)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research Video Over UTP Sender
  • External Power Adapter
  • Hall Research 3 Year Warranty
