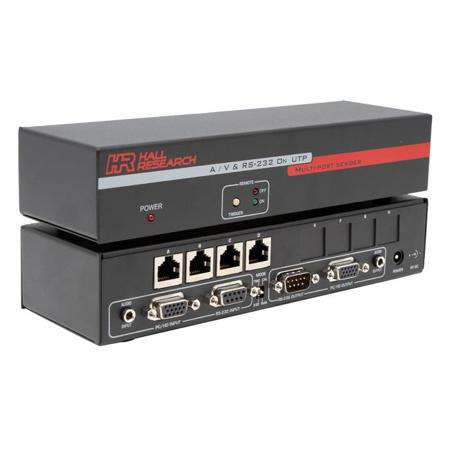

Hall Research UV232A-4S 1x4 VGA + Audio + RS232 Over UTP Splitter
See all Hall Research items

Hall Research UV232A-4S 1x4 VGA + Audio + RS232 Over UTP Splitter

SKU: HRUV232A4S MFR: UV232A-4S
Be the first to review this itemAsk a Question
$512.05
$539.00
Save: $26.95 (5%)
OR
$86/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend VGA video, audio, & RS232 signals up to 1000ft via CAT5/6 cable with this format converter.
  • Achieve high-resolution video up to 1920x1200 at 60Hz, ensuring clear images using this converter.
  • Use this video format converter for distributing VGA signals to multiple displays with audio & RS232.
  • Enjoy a stable connection with this video converter's robust design, perfect for reliable performance.
  • This affordable video format converter supports VGA, RGBHV, RGBS, & Component Video standards easily.
  • Easy setup gets your system running quickly; this format converter is ideal for any AV application.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hall Research UV232A-4S Specifications

  • Video Gain

    Unity

  • Video Standards

    VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)

  • Connectors

    4x RJ-45 Female (CATx Output)
    1x HD15 Female (Video Input)
    1x HD15 Female (Local Video Output)
    1x 3.5mm Female (Audio Input)
    1x 3.5mm Female (Local Audio Output)
    1x DB9 Female (RS-232 Input)
    1x DB9 Male (Local RS-232 Output)

  • Nominal Amplitude

    1V p-p for Y of component video
    0.7V p-p for RGB and for Pr and Pb of component video
    4.0V to 5.0V p-p, for TTL Sync signals of RGBHV, RGBS

  • Impedance

    75Ohms

  • Resolution

    Up to 1920 x 1200 non-interlaced at 60Hz

  • Max Distance

    Up to 1000' / 304.80m depending on resolution

  • Audio Gain

    Unbalanced output: 0dB

  • Frequency Response

    20Hz to 20kHz, +/- 1dB

  • Audio Type

    Monaural, Simulated Stereo (L+R)

  • THD + Noise

    0.2% at 1kHz, 0.3% at 20kHz at nominal level

  • Recommended Cable

    CAT 5/5e/6 (shielded or unshielded)

  • Power Supply

    100VAC to 240VAC, 50-60Hz, external; 6VDC, 1.5A regulated; 2.1mm

  • Operating Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Operating Humidity

    10% to 90%, non-condensing

  • Storage Humidity

    10% to 90%, non-condensing

  • Cooling

    Convection, vents on each end

  • Mounting

    Brackets at each end with screw hole provided for Wall or Rack mounting

  • Enclosure

    Metal

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE/FCC Class A

  • MTBF

    90,000 hours

  • Dimensions (H x W x D)

    1.66 x 8.42 x 2.60" / 42.16 x 213.87 x 66.04mm (Depth excludes connectors)

  • Weight

    1.5lbs / 0.68kg

About Hall Research UV232A-4S

When seeking a versatile and efficient solution for transmitting video, audio, and RS-232 signals over a UTP (Cat5/5e/6) network, look no further than the UV232A-4S 1x4 VGA + Audio + RS232 Over UTP Splitter. This high-quality device, manufactured by the reputable Hall Research, is a 4-channel sender that can transmit these signals to compatible receivers such as Models URA-232 and URA-232-XT, even at distances up to 1,000 feet away.

Designed with user-friendly features, the UV232A-4S supports high-resolution displays up to 1920 x 1200 at 60Hz, ensuring clear and sharp image quality. This durable and reliable device is an ideal choice for those seeking a cost-effective solution for distributing multiple signals over a single Ethernet cable.

The UV232A-4S also includes a universal power supply, adding to its convenience and ease of use. Proudly made in the USA, this product exemplifies the quality and reliability that Hall Research is known for in the audio and video equipment industry.

Hall Research UV232A-4S Features

  • Transmits audio, video and uni-directional RS-232 on a single Cat5/5e/6 cable
  • Supports resolutions up to 1920x1200 at any refresh rate
  • Differential signaling eliminates ground loops and noise
  • Compact & rugged metal enclosure
  • 'Trigger' button for control of compatible receivers
  • Easily expandable by daisy-chaining receivers (URA-232-XT)
  • Each URA-232-XT within the chain can transmit RS232 or be remotely triggered

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend VGA video, audio, & RS232 signals up to 1000ft via CAT5/6 cable with this format converter.
  • Achieve high-resolution video up to 1920x1200 at 60Hz, ensuring clear images using this converter.
  • Use this video format converter for distributing VGA signals to multiple displays with audio & RS232.
  • Enjoy a stable connection with this video converter's robust design, perfect for reliable performance.
  • This affordable video format converter supports VGA, RGBHV, RGBS, & Component Video standards easily.
  • Easy setup gets your system running quickly; this format converter is ideal for any AV application.

What's in the box:

  • Hall Research UV232A-4S 1x4 VGA + Audio + RS232 Over UTP Splitter
  • Universal Power Supply (6 VDC at 1.5A) with IEC320 Power Cord
  • 6' HD15-M-M VGA Cable
  • 6' 3.5mm-MM Audio Cable
  • User Manual
  • Hall Research 2 Year Limited Warranty
