Hall Research UV232A-8S 1x4 VGA + Audio + RS232 Over UTP Splitter
See all Hall Research items

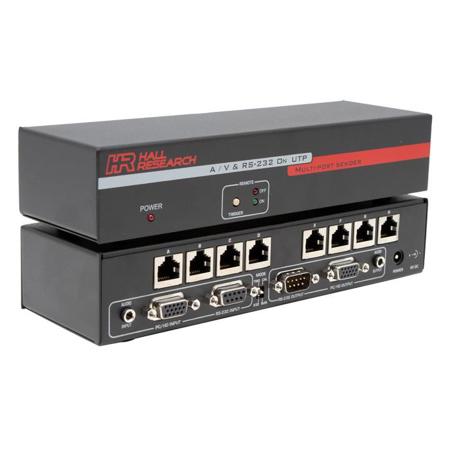

Hall Research UV232A-8S 1x8 VGA + Audio + RS232 Over UTP Splitter

SKU: HRUV232A8S MFR: UV232A-8S
Be the first to review this itemAsk a Question
$945.25
$995.00
Save: $49.75 (5%)
OR
$79/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend VGA signals up to 1000ft with this reliable VGA over UTP splitter, ensuring stable connections.
  • Enjoy wide compatibility with VGA through UXGA resolutions, perfect for high-resolution video needs.
  • Use the UV232A-8S for real-time streaming of VGA, Audio, and RS232 signals over Cat5/5e/6 cable.
  • This affordable VGA splitter supports audio distribution, enhancing multimedia presentations easily.
  • Easy setup with included cables and universal power supply for quick integration into existing systems.
  • Perfect for distributing VGA signals to multiple displays with this 1x8 VGA + Audio + RS232 Splitter.
See More Product Details
Special Order?Estimated to Ship: 09/02/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hall Research UV232A-8S Specifications

  • Video Gain

    Unity

  • Video Standards

    VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)

  • Connectors

    8x RJ-45 Female (CATx Output)
    1x HD15 Female (Video Input)
    1x HD15 Female (Local Video Output)
    1x 3.5mm Female (Audio Input)
    1x 3.5mm Female (Local Audio Output)
    1x DB9 Female (RS-232 Input)
    1x DB9 Male (Local RS-232 Output)

  • Nominal Amplitude

    1V p-p for Y of component video
    0.7V p-p for RGB and for Pr and Pb of component video
    4.0V to 5.0V p-p, for TTL Sync signals of RGBHV, RGBS

  • Impedance

    75Ohms

  • Resolution

    Up to 1920 x 1200 non-interlaced at 60Hz

  • Max Distance

    Up to 1000' / 304.80m depending on resolution

  • Audio Gain

    Unbalanced output: 0dB

  • Frequency Response

    20Hz to 20kHz, +/- 1dB

  • Audio Type

    Monaural, Simulated Stereo (L+R)

  • THD + Noise

    0.2% at 1kHz, 0.3% at 20kHz at nominal level

  • Recommended Cable

    CAT 5/5e/6 (shielded or unshielded)

  • Power Supply

    100VAC to 240VAC, 50-60Hz, external; 6VDC, 1.5A regulated; 2.1mm

  • Operating Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Operating Humidity

    10% to 90%, non-condensing

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Storage Humidity

    10% to 90%, non-condensing

  • Cooling

    Convection, vents on each end

  • Mounting

    Brackets at each end with screw hole provided for Wall or Rack mounting

  • Enclosure

    Metal

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety

    CE

  • EMI/EMC

    CE/FCC Class A

  • MTBF

    90,000 hours

  • Dimensions (H x W x D)

    1.66 x 8.42 x 2.60" / 42.16 x 213.87 x 66.04mm (Depth excludes connectors)

  • Weight

    1.5lbs / 0.68kg

About Hall Research UV232A-8S

Under the banner of innovation and efficiency, the UV232A-8S 1x8 VGA + Audio + RS232 Over UTP Splitter stands out as a robust solution for audiovisual and control signal distribution. This high-quality, 8-channel sender is engineered to transmit VGA video, audio, and RS-232 signals over UTP (Cat5/5e/6) cabling to compatible receivers, including the Hall Research Models URA-232 and URA-232-XT.

Designed for durability and reliable performance, the UV232A-8S ensures that your signals reach their destination with clarity and precision, even at distances up to 1,000 feet. This makes it an ideal choice for applications such as digital signage, educational facilities, conference centers, and any environment where remote video and audio signal transmission is required.

The UV232A-8S supports high-resolution video signals up to 1920 x 1200 at 60Hz, ensuring that your content is displayed with the highest fidelity and detail. Its user-friendly design includes a universal power supply for ease of installation and operation.

Crafted with the expertise of Hall Research, a leader in the audio and video equipment industry, the UV232A-8S splitter is a testament to the brand's commitment to innovative and high-quality products. Choose the UV232A-8S for a seamless integration of VGA, audio, and RS232 signals over Ethernet, and experience the convenience and reliability that come with a product designed to meet the demands of professional AV setups. Made in the USA, this splitter is a testament to superior craftsmanship and technological prowess.

Hall Research UV232A-8S Features

  • Transmits audio, video and uni-directional RS-232 on a single Cat5/5e/6 cable
  • Supports resolutions up to 1920x1200 at any refresh rate
  • Differential signaling eliminates ground loops and noise
  • Compact & rugged metal enclosure
  • 'Trigger' button for control of compatible receivers
  • Easily expandable by daisy-chaining receivers (URA-232-XT)
  • Each URA-232-XT within the chain can transmit RS232 or be remotely triggered

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend VGA signals up to 1000ft with this reliable VGA over UTP splitter, ensuring stable connections.
  • Enjoy wide compatibility with VGA through UXGA resolutions, perfect for high-resolution video needs.
  • Use the UV232A-8S for real-time streaming of VGA, Audio, and RS232 signals over Cat5/5e/6 cable.
  • This affordable VGA splitter supports audio distribution, enhancing multimedia presentations easily.
  • Easy setup with included cables and universal power supply for quick integration into existing systems.
  • Perfect for distributing VGA signals to multiple displays with this 1x8 VGA + Audio + RS232 Splitter.

What's in the box:

  • Hall Research UV232A-8S 1x4 VGA + Audio + RS232 Over UTP Splitter
  • Universal Power Supply (6 VDC at 1.5A) with IEC320 Power Cord
  • 6' HD15-M-M VGA Cable
  • 6' 3.5mm-MM Audio Cable
  • User Manual
  • Hall Research 2 Year Limited Warranty
