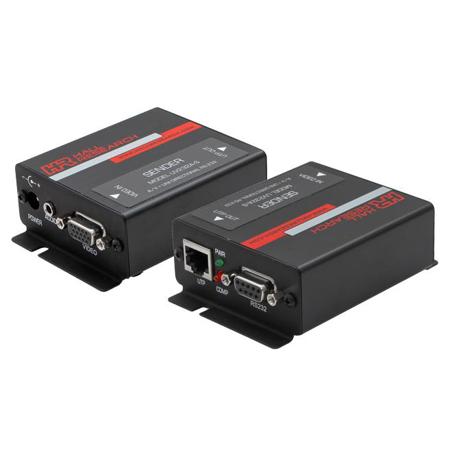

Hall Research UV232A VGA/Audio & Uni-Directional RS-232 Sender

SKU: HRUV232AS MFR: UV232A-S
Earn VIP Reward Points

Key Features

  • Extend your VGA video and audio signals up to 500 feet with reliable format support.
  • Enjoy easy setup with this VGA/Audio & RS-232 sender, perfect for any application.
  • Achieve high resolution video up to WUXGA (1920x1200) for crystal-clear images.
  • Ensure low latency signal transmission, ideal for live presentations and events.
  • Utilize the robust RS-232 control for seamless integration with existing systems.
  • Stream VGA video and audio with confidence, thanks to its reliable streaming performance.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hall Research UV232A Specifications

  • Standards

    Analog VGA Video (RGBHV), YPbPr or RGB signals with sync-on-green

  • Resolutions

    All up to WUXGA (1920 x 1200 / 60Hz), 1080p

  • Video Level

    0.7V p-p on RGB, 5V p-p H/V sync

  • Bandwidth

    20Hz to 450MHz

  • Common Mode Noise Rejection

    100dB at 60Hz, 70dB at 1MHz, 50db at 10MHz

  • Max Distance

    Up to 500' / 152.40m based on resolution

  • Operating Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -40 to 185 deg. F / -40 to 85 deg. C

  • Enclosure

    Aluminum

  • MTBF

    100,000 hours (calculated estimate)

  • Power

    Via the included power adapter. Voltage: 6V DC Center-Positive. Average Power Consumption: 200mA (Sender) 160mA (Receiver)

  • RS232 Connections

    Pin 2 = RX
    Pin 3 = TX
    Pin 5 = GND

  • Dimensions (H x W x D)

    Each Device: 1.25 x 2.75 x 3.08" / 31.75 x 69.85 x 78.23mm

About Hall Research UV232A

The Model UV232A Kit is used to send high resolution video, Audio (L+R Mixed) and uni-directional RS-232 over a single twisted-pair cable to a remote location up to 500 feet away. The input video can be from a RGBHV (PC video to WUXGA) or YPbPr (HD analog component to 1080p). DDC compliant EDID emulation assures proper PC boot-up with video output.

The Uni-directional RS-232 can be used to control LCD's or Projectors that have RS-232 control. Applications include kiosk solutions, conference halls, digital signage, interactive operator systems, factory or laboratory data acquisition and control and more. When the Sender is powered from a VESA compliant VGA source (+5v on Pin 9) a power supply (included) is only required at the Receiver. If the source is not VESA compliant in that regard or if the video is YPbPr (using a 3 RCA to HD15 input cable), then a power supply (included) is needed at both Sender and Receiver.

It is recommended that for best image quality low-skew UTP cables be utilized (such as Hall Research's Zero-Skew cables), otherwise at long distances (>200ft) and high-resolutions, RGB skew may be present and a separate skew corrector would be necessary (HRT Model SKU-RGB).

Hall Research UV232A Features

  • Sends PC or HD video, Audio (L+R Mixed) and Uni-directional RS-232 over single CATx
  • Wide bandwidth to transmit WUXGA signals (1920x1200 / 60hz) or HD Analog Component (1080p)
  • Compensation for UTP cable to 500 ft.
  • No power supply required at local sender - when powered from VESA compliant VGA Source
  • DDC compliant EDID emulation on the Sender
  • Supports all baud rates to 115 Kbps
  • Perfect for Kiosk, or Projector Control applications
  • RS-232 and high quality VGA input cables provided
  • Compact metal enclosure with mounting provisions
  • Compact, Rugged, Reliable and Economical
  • Made in USA

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your VGA video and audio signals up to 500 feet with reliable format support.
  • Enjoy easy setup with this VGA/Audio & RS-232 sender, perfect for any application.
  • Achieve high resolution video up to WUXGA (1920x1200) for crystal-clear images.
  • Ensure low latency signal transmission, ideal for live presentations and events.
  • Utilize the robust RS-232 control for seamless integration with existing systems.
  • Stream VGA video and audio with confidence, thanks to its reliable streaming performance.

What's in the box:

  • Hall Research UV232A VGA/Audio & Uni-Directional RS-232 Sender
  • Power Supply
  • Hall Research 3 Year Limited Warranty
