Hall Research VHD-HD2CV Specifications

  • Video: Input

    HDMI

  • Video: Output

    Composite (RCA)

  • Video: Output Format

    NTSC/PAL

  • Audio: Input

    Via HDMI

  • Audio: Input Formats

    LPCM, 2-Channel, 24-Bit, 20-Bit, 16-Bit

  • Audio: Input Sampling

    192kHz, 176.4, 96, 88.2, 48, 44.1, 32kHz Frequencies

  • Audio: Output

    RCA

  • Audio: Output Format

    Stereo L/R

  • Power Supply

    5 vDC, regulated 2.1mm / 0.08"

  • Power Consumption

    600 mADC max at 5v (3W)

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Humidity

    10% to 90%, non-condensing

  • Enclosure

    Plastic

  • MTBF

    90,000 hours

  • Dimensions

    114 x 65 x 26mm / 4.49 x 2.56 x 1.02"

  • Weight

    120g / 4.23oz

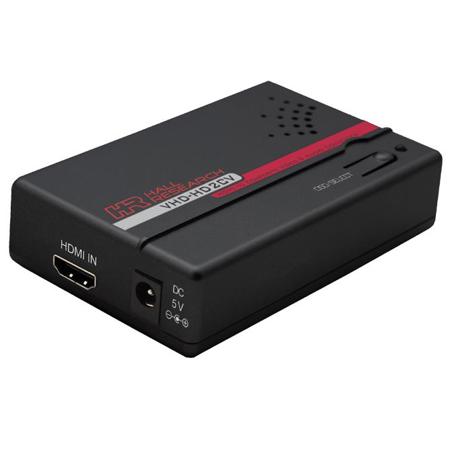

About Hall Research VHD-HD2CV

The VHD-HD2CV is a compact HDMI to composite video & audio converter. It accepts HDMI or DVI video input up to 1080p and converts it to composite video. If the input HDMI signal has embedded audio, it is extracted and output as line level stereo L/R on RCA connectors.

Under scan presets allow easy capture of the full input video frame. The converter's output can be set as either NTSC or PAL and features aspect ratio adjustments. The Scan converter features motion adaptive 3D de-interlacing with noise reduction and motion adaptive interpolation.

Hall Research VHD-HD2CV Features

  • Converts and scales digital HDMI or DVI to composite video
  • Extracts HDMI audio to analog stereo output
  • Output interlaced NTSC or PAL video with overscan and two under scan output options
  • Multiple aspect ratio adjustment options
  • Motion adaptive 3D de-interlacing and adaptive interpolation
  • Quick and simple to install
  • Compact size

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hall Research VHD-HD2CV HDMI or DVI to Composite Video & Audio Scan Converter
  • Scan Converter Box
  • 5V Power Supply
  • User Manual
  • Hall Research 2 Year Parts and Labor Warranty
