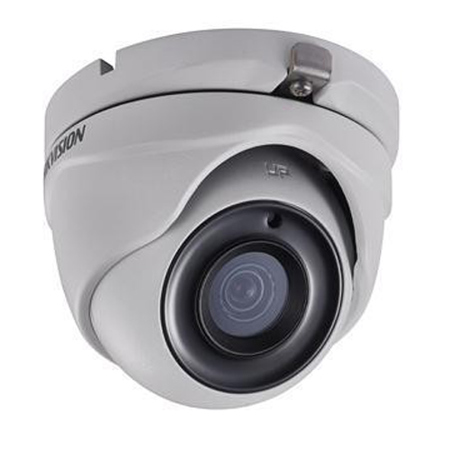

Hikvision DS-2CE56H0T-ITMF 5MP HD IR Turret Camera, 2.8mm Lens, 65' IR Range
See all Hikvision items

Hikvision DS-2CE56H0T-ITMF 5MP 2560x1944 TurboHD Outdoor IR Turret Camera with 2.8mm Lens, 65' IR Range, IP67

SKU: HV0TITMF28MM

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-2CE56H0T-ITMF Specifications

Camera

Camera

Jump to...

  • Image Sensor

    5 MP progressive scan CMOS

  • Resolution

    2560 (H) x 1944 (V)

  • Minimum Illumination

    Color: 0.01 Lux @ (f1.2, AGC on)
    0 Lux with IR

  • Shutter Speed

    1/30 s to 1/50, 000 s

  • Lens

    2.8mm

  • Horizontal Field of View

    85.5 Degree (2.8mm)

  • Lens Mount

    M12

  • Day/Night

    IR cut filter

  • Angle Adjustment

    Pan: 0 Degree to 360 Degree
    Tilt: 0 Degree to 75 Degree
    Rotate: 0 Degree to 360 Degree

  • Synchronization

    Internal synchronization

  • Frame Rate

    5 MP @ 20 fps
    4 MP @ 30 fps
    1080p @ 30 fps

Menu

Jump to...

  • AGC

    Supported

  • Day/Night Mode

    Auto/color/BW (black and white)

  • White Balance

    ATW/MWB

  • BLC

    Supported

  • DWDR

    Supported

  • Language

    English

  • Functions

    Brightness, sharpness, DNR, mirror, smart IR

Interface

Jump to...

  • TVI Video Output

    1 HD analog output

  • Switch Button

    TVI/AHD/CVI/CVBS

General

Jump to...

  • Operating Conditions

    -40 Degree to 140 Degree F (-40 Degree to 60 Degree C)
    Humidity: 90% or less (non-condensation)

  • Power Supply

    12 VDC +/- 25%

  • Power Consumption

    Maximum 4.3 W

  • Protection Level

    IP67

  • Material

    Metal

  • IR Range

    Up to 65' (20m)

  • Communication

    Up-the-Coax, Protocol: HIKVISION-C (HD-TVI output)

  • Dimensions

    3.58 x 3.25 x 2.69" (91 x 82.6 x 68.3mm)

  • Weight

    Approximately: 0.77 lb (350g)

Other

Jump to...

  • UPC Code

    842571113242

About Hikvision DS-2CE56H0T-ITMF

The Hikvision DS-2CE56H0T-ITMF 5 MP Outdoor Turret Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.

EXIR 2.0 is Hikvision's proprietary IR extended range technology, which has a range of 65 feet (20 meters).

The 2.8 mm, 3.6 mm, and 6 mm fixed lens options are optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Hikvision DS-2CE56H0T-ITMF Features

  • 5 MP High Performance CMOS
  • Up to 2560 x 1944 Resolution
  • 2.8mm Fixed Lens
  • 3D DNR, DWDR
  • EXIR 2.0 up to 65' (20m) IR Range
  • Up-the-Coax (HIKVISION-C)
  • IP67 Protection

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 5 MP High Performance CMOS
  • Up to 2560 x 1944 Resolution
  • 2.8mm Fixed Lens
  • 3D DNR, DWDR
  • EXIR 2.0 up to 65' (20m) IR Range
  • Up-the-Coax (HIKVISION-C)

What's in the box:

  • DS-2CE56H0T-ITMF 5MP 2560x1944 TurboHD Outdoor IR Turret Camera with 2.8mm Lens
  • Hikvision 3 Year Limited Warranty
