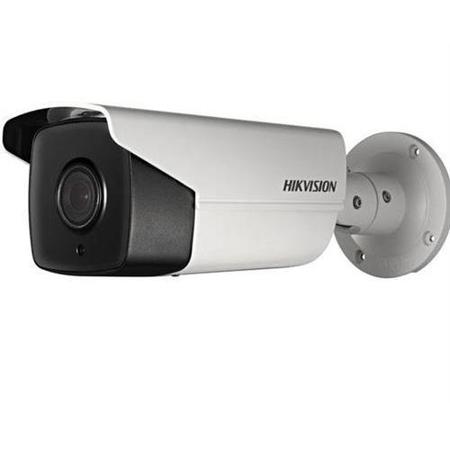

Hikvision 2MP Outdoor Day & Night Network LPR Bullet Camera with 2.8-12mm Lens
See all Hikvision items

Hikvision 2MP Outdoor Day & Night Ultra-Low Light Network License Plate Recognition Bullet Camera with 2.8-12mm Zoom Lens

SKU: HV24A26IZHSP

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision LPR Bullet Camera Specifications

Camera

Camera

Jump to...

  • Image Sensor

    1/1.8" progressive scan CMOS

  • Minimum Illumination

    Color: 0.0027 lux at f/1.4, AGC on; 0 lux with IR

  • Shutter Speed

    1s to 1/100000s, supports slow shutter

  • Lens

    2.8mm to 12mm, f/1.4, horizontal field of view: 92 deg. to 32deg,

  • Auto Iris

    DC drive

  • Day/Night

    IR cut filter with auto switch

  • Digital Noise Reduction

    3D DNR

  • WDR

    120dB

Compression Standard

Jump to...

  • Video Compression

    Main stream: H.264/MPEG4; Sub stream: H.264/MPEG4/MJPEG; third stream: H.264/MPEG4/MJPEG

  • H.264 Type

    Baseline Profile/Main Profile/High Profile

  • H.264+

    Supported

  • Video Bit Rate

    32Kbps to 16Mbps

  • Audio Compression

    G.711/G.722.1/G.726/MP2L2

  • Audio Bit Rate

    64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-160 Kbps (MP2L2)


Jump to...

  • Maximum Resolution

    1920 x 1080

  • Main Stream Maximum Frame Rate

    50 Hz: 50 fps (1920 x 1080, 1280 x 960, 1280 x 720); 60 Hz: 60 fps (1920 x 1080, 1280 x 960, 1280 x 720)

  • Sub Stream Maximum Frame Rate

    50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288); 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)

  • Third Stream Maximum Frame Rate

    50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
    60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)

  • Live View

    Up to 20 channels simultaneous views

  • Image Enhancement

    BLC/3D DNR/defog/EIS

  • Image Setting

    Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or Web browser

  • Region of Interest

    Four fixed regions for each stream, and dynamic tracking

  • Target Cropping

    Supported

  • Day/Night Switch

    Auto/schedule/triggered by alarm in

  • Analog Output

    Supported, CVBS (4CIF resolution)

  • Picture Overlay

    Logo picture can be overlaid on video with 128 x 128 24-bit bmp format

Road Traffic & Vehicle Detection

Jump to...

  • Accuracy

    Capture rate up to 99%, recognition rate up to 95% (if Hikvision LPR Camera Installation Manual carefully followed)

  • Vehicle Speed

    Supports vehicle speeds under 74.6 mi/h (120 km/h)

  • Line Numbers

    Up to four lines supported. Recommend setting 1 or 2 lines for best performance

  • Direction

    Supports capture and recognition of vehicles both approaching and leaving

  • Whitelist and Blacklist

    Up to 2,048

Network

Jump to...

  • Network Storage

    Supports microSD/SDHC/SDXC card (128GB), local storage and NAS (NFS,SMB/CIFS), ANR

  • Alarm Trigger

    Road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

  • General Functions

    One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter, mirror

  • Standard

    ONVIF (profile S, profile G), ISAPI

Interface

Jump to...

  • Communication Interface

    1 RJ-45 10M/100M Ethernet port

  • Audio

    1 audio input (line in/mic in), 1 audio output

  • Alarm

    1 input, 1 output

  • Video Output

    1Vp-p composite output (75Ohms/BNC)

  • On-Board Storage

    Built-in microSD/SDHC/SDXC slot, up to 128GB

  • Reset Button

    Yes

Audio

Jump to...

  • Environment Noise Filtering

    Supported

  • Audio I/O

    Supported

  • Audio Sampling Rate

    16kHz/32kHz/44.1kHz/48kHz

General

Jump to...

  • Security

    Three-level user authentication management, user and password authorization, IP address filtering, security certificate as HTTPS, lock user IP after pre-defined failed login attempts

  • Operating Conditions

    -40 to 140 deg. F (-40 to 60 deg. C), humidity 95% or less (non-condensing)

  • Power Supply

    12VDC +/-10%, terminal block PoE (802.3at, class 4)

  • Power Consumption and Current

    12VDC, maximum 14.5W, 1.3 A
    PoE, maximum 19.2W, 0.3A to 0.5A

  • IR

    850nm IR wavelength, up to 164' (50m) for 2.8 to 12 mm lens

  • Heater

    Supported

  • Protection

    IP67, lightning protection, surge protection, voltage transient protection, anti-static protection

  • Dimensions

    3.94 x 4.09 x 12.28" (10.01 x 10.39 x 31.19cm)

  • Weight

    4.57 lbs (2.07kg)

Other

Jump to...

  • UPC Code

    842571106930

About Hikvision LPR Bullet Camera

Hikvision's License Plate Recognition (LPR) ultra-low light smart camera is able to capture vehicle images and recognize the vehicle number (license) plate in dim light environments. Hikvision's DS-2CD4A26FWD-IZHS/P camera offers high resolution, 120 dB WDR, auto-iris, PoE, defog, EIS, 3D DNR, IR, heater, alarm I/O and audio I/O, etc., to meet a wide variety of applications.

The camera has 2.8-12mm lens and it features an LP capture rate up to 99 percent and a recognition rate up to 95 percent. Vehicle speeds of 75 mph (120 km/h) are supported. Up to four lanes of traffic can be monitored. Vehicle direction and recognition of vehicles both approaching and leaving are included. Up to 2,048 whitelist (authorized) and blacklist (unauthorized) records can be maintained.

Hikvision LPR Bullet Camera Features

  • 1/1.8" Progressive Scan CMOS
  • High Resolution 1920 x 1080 at 60 fps (WDR Off)
  • Ultra-Low Light - Color: 0.002 Lux
  • Auto-Iris
  • 120dB WDR, BLC, EIS, ROI, 3D DNR, Defog
  • IP67 Protection with Built-in Heater
  • EXIR Range Up to 164' (50m)
  • Capture Rate Up to 99%
  • Recognition Rate Up to 95%
