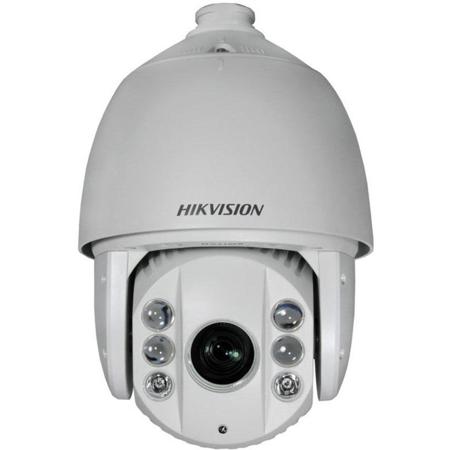

Hikvision HD1080P Turbo IR PTZ Dome Outdoor Camera, 2MP/1080p, 30x Optical Zoom, Day/Night, IP66, Heater, 24VAC

SKU: HV2AE7230TIA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hikvision HD1080P Turbo IR PTZ Dome Outdoor Camera Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Effective Pixels

    1920 (H) x 1080 (V)

  • Signal System

    NTSC

  • Min. Illumination

    Color: 0.02Lux at (F1.6,AGC ON)
    B/W: 0.002Lux at (F1.6,AGC ON)
    0 lux with IR

  • White Balance

    Auto / Manual / ATW / Indoor / Outdoor

  • AGC

    Auto / Manual

  • S/N Ratio

    = 50dB

  • BLC

    ON/OFF

  • WDR

    Support

  • Shutter Time

    PAL: 1-1/10,000s
    NTSC: 1-1/10,000s

  • Day & Night

    ICR

  • Digital Zoom

    16x

  • Privacy Masking

    8 privacy masks programmable

  • Auto Focus

    Auto / Semi-automatic / Manual

  • Focal Length

    4-120mm, 30X

  • Zoom Speed

    Approx.3.0s (Optical Wide-Tele)

  • Angle of View

    58-21.7 Degree (Wide-Tele)

  • Min. Working Distance

    10-1500mm (Wide-Tele)

  • Aperture Range

    F1.6-F4.4

  • Pan Range

    360 Degree endless

  • Pan Speed

    Pan Manual Speed: 0.1 Degree -160 Degree/s
    Pan Preset Speed: 240 Degree/s

  • Tilt Range

    Minus 15 Degree -90 Degree (Auto Flip )

  • Tilt Speed

    Tilt Manual Speed: 0.1 Degree -120 Degree/s
    Tilt Preset Speed: 200 Degree/s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    256

  • Patrol

    8 patrols, up to 32 presets per patrol

  • Pattern

    4 patterns, with the total recording time not less than 10 minutes

  • Power Loss Recovery

    Support

  • Park Action

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • PTZ Position Display

    ON/OFF

  • IR Irradiation Distance

    120m

  • IR Irradiation Angle

    Adjustable by zoom

  • Monitor Output

    1.0Vp-p / 75ohms, NTSC (or PAL) composite, BNC

  • RS-485 Protocols

    HIKVISION, Pelco-P, Pelco-D, self-adaptive

  • Menu Language

    English / Chinese

  • Power Supply

    24V AC

  • Power Consumption

    Max. 30W (IR: 9W, Heater: 6W)

  • Working Temperature

    Minus 30 Degree C - 65 Degree C(-22 Degree F - 149 Degree F)

  • Humidity

    90% or less

  • Protection Level

    P66 standard (outdoor dome)
    TVS 4,000V lightning protection, surge protection and voltage transient protection

  • Mount Options

    Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount: DS-1602ZJ-box

  • Dimensions

    8.66 x 13.91" (220 x 353.4mm)

  • Weight

    9.92 lbs (4.5kg)

  • UPC Code

    301203828

About Hikvision HD1080P Turbo IR PTZ Dome Outdoor Camera

Hikvision's brand reputation is built on producing quality surveillance and video components, and this indoor dome-style unit is no exception. With a whole host of smart functions, helpful interface points, and additional security features, the camera will help keep a watchful eye on what's important to you.

The camera's built around a 1/3" progressive-scan CMOS sensor, which provides 1080p video output as well as still-image capture. Low-light performance is aidedby digital noise reduction technology, as well as an IR cut filter and supplemental LED lighting, increasing the night vision range to 120 meters in total darkness. Other security features include motion and intrusion detection, plus a tampering alarm.

The camera's housing is weatherproofed to an IP66 standard, meaning it can be installed in an open outdoor setting such as under a large overhang, near entry/exit doors, or in uninsulated structures like garages. It can operate without issue in temperatures as low as -22F and as high as +149F, and can handle humidity up to 90%.

• 2MP CMOS Image Sensor
• Full HD 1080P Video Output
• 30x optical zoom, 16x digital zoom
• Support up the coax function
• Privacy Masking, 3D DNR, D WDR, EIS
• 3D intelligent positioning
• True Day&Night

Key Features

  • 1080p video output
  • 2MP still-image capture
  • 30x optical zoom
  • IP66 weatherproof rating
  • Suitable for outdoor installation
  • IR night vision range of 120 meters

What's in the box:

  • Hikvision HD1080P Turbo IR PTZ Dome Outdoor Camera
  • Hikvision 3 Year Limited Warranty
