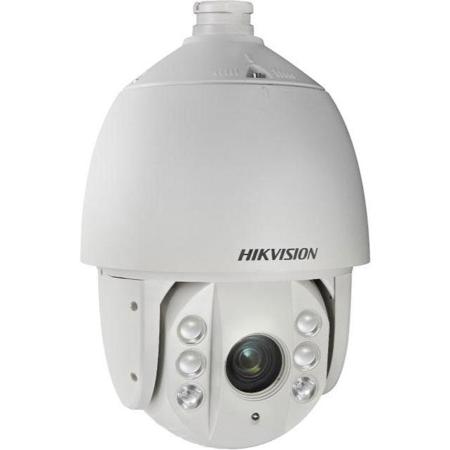

Hikvision 700TVL IR PTZ Outdoor Dome Analog Camera, 36X Optical Zoom, Day/Night, Smart Tracking, IP66, Heater, 24VAC

SKU: HV2AF7268NA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Hikvision 700TVL IR PTZ Outdoor Dome Analog Camera Specifications

  • Image Sensor

    1/4" SONY CCD

  • Effective Pixels

    976 (H) X 494 (V)

  • Horizontal Resolution

    Color: 700 TVL, B/W: 750 TVL

  • Min. Illumination

    Color: 0.02Lux/(F1.6, AGC ON), 0.0008Lux/(F1.6, AGC ON, sensitivityx256)
    B/W: 0.002Lux/(F1.6, AGC ON), 0.00008Lux/(F1.6, AGC ON, sensitivityx256) 0 Lux with IR

  • White Balance

    Auto / Manual / ATW / Indoor / Outdoor

  • AGC

    Auto / Manual

  • S/N Ratio

    Greater than 50dB

  • Shutter Speed

    1 - 1/10,000s

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    128X Digital WDR

  • Day & Night

    TRUE

  • Digital Zoom

    16X

  • Privacy Masking

    Up to 8 zones, maximum 8 zones on a same image, multiple colors and mosaics optional

  • Focus Model

    Auto / Semi-automatic / Manual

  • Focal Length

    3.3 - 119mm, 36X

  • Zoom Speed

    Approx. 6s (Optical Wide-Tele)

  • Angle of View

    57.1 - 1.7 Degree (Wide-Tele)

  • Min. Working Distance

    10 - 1000mm (Wide-Tele)

  • Aperture Range

    F1.4 - F3.7

  • Pan and Tilt Range

    Pan: 360 Degree endless; Tilt: -15 Degree - 90 Degree (Auto Flip)

  • Pan and Tilt Speed

    Pan Manual Speed: 0.1 Degree - 160 Degree/s, Pan Preset Speed: 240 Degree/s
    Tilt Manual: 0.1 Degree - 120 Degree/s, Tilt Preset Speed: 200 Degree/s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    256

  • Patrol

    8 patrols, up to 32 presets per patrol

  • Pattern

    4 patterns, with the total recording time not less than 10 minutes

  • Power-off Memory

    Support

  • Park Action

    Preset/Patrol/Pattern/Pan scan/Tilt scan/Frame scan/Random scan/Panorama scan/Day/Night

  • PTZ Position Display

    ON/OFF

  • Compass

    Support , the north can be set

  • Scheduled Task

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • IR Range

    Up to 100m

  • IR Irradiation Angle

    Automatically adjusted, depending on the zoom ratio

  • Video Output

    NTSC composite, BNC

  • RS-485 Protocols

    HIKVISION, Pelco-P, Pelco-D (addible), self-adaptive

  • Power

    24VAC
    Max. 50W (IR On, Heater On); Max. 35W (IR On); Max. 15W (IR Off, Heater Off)

  • Working Temperature

    Minus 30 Degree C - 65 Degree C (-22 Degree F - 149 Degree F)

  • Humidity

    90% or less

  • Protection Level

    IP66 standard (outdoor dome)
    TVS 4,000V lighting protection, surge protection and voltage transient protection

  • Mount Options

    Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS1622ZJ; Power box mount: DS-1634ZJ

  • Dimensions

    9.65 x 15.71" (245 x 399mm)

  • Weight

    12.13lbs (5.5kg)

  • UPC Code

    816783016233

About Hikvision 700TVL IR PTZ Outdoor Dome Analog Camera

Hikvision's brand reputation is built on producing quality surveillance and video components, and this outdoor dome-style unit is no exception. With a whole host of smart functions, helpful interface points, and additional security features, the camera will help keep a watchful eye on what's important to you.

The camera's built around a SONY CCD sensor, which provides 700TVL video output as well as still-image capture. Low-light performance is aided by digital noise reduction technology, as well as an IR cut filter and supplemental LED lighting, increasing the night vision range to 100 meters in total darkness. Other security features include motion and intrusion detection and a tampering alarm.

The camera's housing is weatherproofed to an IP66 standard, meaning it can be installed in an open outdoor setting such as under a large overhang, near entry/exit doors, or in uninsulated structures like garages. It can operate without issue in temperatures as low as -40F and as high as +140F, and can handle humidity up to 90%. Additionally, the housing is rated to IK10 for impactresistance.

• 1/4" Sony CCD
• 700TVL horizontal resolution
• 36x/23x optical zoom, 16x digital zoom
• 1/4" Sony CCD
• 700TVL horizontal resolution
• 36x/23x optical zoom, 16x digital zoom
• 100m IR distance
• True Day/Night, 3D DNR, Digital WDR
• 3D intelligent positioning

Key Features

  • 700TVL video output
  • Still-image capture
  • Sony CCD sensor
  • IP66 weatherproofing
  • Impact-resistant housing
  • Suitable for outdoor installation

What's in the box:

  • Hikvision 700TVL IR PTZ Outdoor Dome Analog Camera
  • Hikvision 3 Year Limited Warranty
