Hikvision Turbo Box Camera Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Signal System

    NTSC

  • Effective Pixels

    1920 (H) x 1080 (V)

  • Min. Illumination

    Color : 0.01 Lux at (F1.2,AGC ON)
    B/W : 0.001 Lux at (F1.2,AGC ON)

  • Shutter Time

    1/25(1/30) s to 1/50,000 s

  • Lens Mount

    C/CS Mount

  • Auto Iris

    DC drive

  • Day & Night

    IR cut filter with auto switch

  • WDR

    120dB

  • Video Frame Rate

    1080p at 25fps/1080p at 30fps

  • Synchronization

    Internal synchronization

  • HD Video Output

    1 Analog HD output

  • Video Output

    1Vp-p Composite Output(75ohms/BNC)

  • S/N Ratio

    More than 52dB

  • Up the Coax

    Support

  • Scene

    Indoor, Outdoor, Indoor1, LOW-LIGHT

  • Camera ID

    On/off (15 characters, position programmable)

  • AGC

    Support

  • D/N Mode

    Color/BW/EXT

  • White Balance

    ATW, AWC-SET, Indoor, Outdoor, Manual

  • Privacy Mask

    On/Off, maximum 8 zones

  • Motion Detection

    On/Off, maximum 4 zones

  • BLC

    On/Off

  • Anti-flicker

    On/Off

  • Language

    English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic

  • Functions

    Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

  • Working Temperature/Humidity

    Minus 30 Degree C 60 Degree C (-22 Degree F 140 Degree F)
    Humidity 90% or less (non-condensing)

  • Power Supply

    12 V DC 10%, 24 V AC 10%

  • Power Consumption

    Max. 4W, -A: Max. 4.5W

  • Communication

    Up the coax (need UTC controller)
    Protocol: Pelco-C(Coaxitron)

  • Dimensions

    2.7 x 2.3 x 5.85" (69.2 x 57.3 x 148.7 mm)

  • Weight

    14 oz (400g)

  • UPC Code

    813908021370

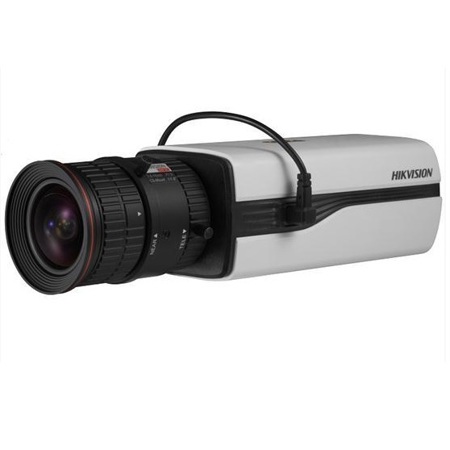

About Hikvision Turbo Box Camera

Hikvision's brand reputation is built on producing quality surveillance and video components, and this indoor/outdoor box-style unit is no exception. With a whole host of smart functions, helpful interface points, and additional security features, the camera will help keep a watchful eye on what's important to you.

The camera's built around a 1/3" progressive-scan CMOS sensor, which provides 1080p video output as well as still-image capture. Low-light performance is aidedby digital noise reduction technology, as well as an IR cut filter and supplemental LED lighting, increasing the night vision range to 40 meters in total darkness. Other security features include motion and intrusion detection and a tampering alarm.

The camera's housing is weatherproofed to a medium standard, meaning it can be installed in a protected outdoor setting such as under large overhangs, near entry/exit doors, or in uninsulated structures like garages. It can operate without issue in temperatures as low as -22F and as high as +140F, and can handle humidity up to 90%.

• HD1080P Video Output
• Adopt HDTVI Technology
• True Day/Night
• 3D DNR, Smart IR
• True WDR, up to 120dB
• OSD menu controlled via UTC
• -A: 24V AC/ 12V DC

Key Features

  • 1080p video output
  • HD still-image capture
  • Wide dynamic range
  • 3D digital noise reduction
  • HDTVI tech
  • True day/night modes

What's in the box:

  • Hikvision Turbo HD1080P Box Camera
  • Hikvision 3 Year Limited Warranty
