Hikvision 3MP IR Fixed Outdoor Dome Network Camera with 4mm Lens Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Min. Illumination

    0.07 Lux at (F1.2, AGC ON) ,0 Lux with IR

  • Shutter Time

    1/3s - 1/100,100s

  • Lens

    4mm at F2.0 (2.8mm, 6mm optional) 2048 x 1536: Angle of view: 86 Degree (2.8mm), 70 Degree (4mm), 43.3 Degree (6mm) 1920 x 1080: Angle of view: 98.5 Degree (2.8mm), 79 Degree (4mm), 49 Degree (6mm)

  • Lens Mount

    M12

  • Adjustment Range

    Pan: 0 Degree - 355 Degree, Tilt: 0 Degree - 65 Degree, Rotation: 0 - 360 Degree

  • Day & Night

    IR cut filter with auto switch

  • Wide Dynamic Range

    Digital WDR

  • Digital Nose Reduction

    3D DNR

  • Video Compression

    H.264/M-JPEG

  • Bit Rate

    32 Kbps - 16 Mbps

  • Dual Stream

    Yes

  • Max. Image Resolution

    2048 x 1536

  • Frame Rate

    50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
    60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)

  • Image Settings

    Saturation, brightness, contrast adjustable through client software or web browser

  • BLC

    Yes, zone configurable

  • ROI

    Yes, up to 3 configurable areas

  • Network Storage

    NAS

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Network Security

    User authentication, watermark

  • System Compatibility

    ONVIF, PSIA, CGI, ISAPI

  • Communication Interface

    1 RJ45 10M / 100M ethernet interface

  • Wireless Standards

    IEEE802.11b, 802.11g, 802.11n

  • Frequency Range

    2.4 GHz - 2.4835 GHz

  • Channel Bandwidth

    20/40MHz Support

  • Wifi-Security

    64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

  • Transmit Power

    11b: 17 1.5dBm at 11Mbps
    11g: 14 1.5dBm at 54Mbps
    11n: 12.5 1.5dBm

  • Receive Sensitivity

    11b: -90dBm at 11Mbps (Typical)
    11g: -75dBm at 54Mpbs (Typical)
    11n: -74dBm (Typical)

  • Transmission Rate

    11b: 11Mbps
    11g: 54Mbps
    11n: up to 150Mbps

  • Wireless Range

    Outdoor: 200m, Indoor: 50m (depend on environment)

  • Operating Conditions

    Minus 30 Degree C - 60 Degree C (-22 Degree F - 140 Degree F)
    Humidity 95% or less (non-condensing)

  • Power Supply

    12 VDC 10%, PoE (802.3af)

  • Power Consumption

    Max. 5 W (Max. 7 W with IR cut filter on)

  • Impact Protection

    IEC60068-2-75Eh, 50J; EN50102, up to IK10

  • Weather Proof

    IP66

  • IR Range

    Approx. 10 to 30 meters

  • Dimensions

    4.4 x 3.2" (111 x 82mm))

  • Weight

    1.1 lbs (500g)

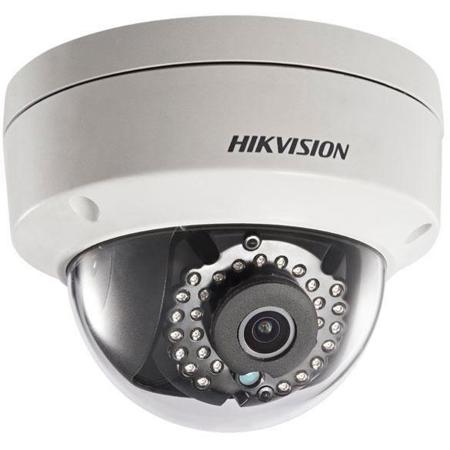

About Hikvision 3MP IR Fixed Outdoor Dome Network Camera with 4mm Lens

Hikvision's great reputation comes from consistently producing quality video and surveillance components, and this outdoor dome camera is no exception. With a whole host of smart functions and helpful interface points, plus a range of security features and a sturdy construction, it's a solid solution to your indoor or outdoor monitoring needs.

The camera is built around a 3MP progressive-scan CMOS sensor, which captures full HD video footage as well as still images. The sensor is aided by a lens with an 87-degree field of view and an infrared night-vision range of up to 90 feet. Some additional functions add security to the area you're monitoring, such as motion detection, audio disruption detection, alarm input/output, and user authentication.

The camera's housing is designed to be weatherproof, receiving a rating of IP66,which means a little wind, rain, or dust is no big deal. It can operate in temperatures from -22F to +140F, as well as in humidity levels up to 95%, making it a true all-season tool for keeping an eye on what's important to you.

• 3MP high resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• IR LEDs: up to 30m
• IP66
• Vandal-proof
• PoE
• Onboard storage (up to 64GB)
• Wi-Fi optional

Key Features

  • Full-HD video recording
  • 3MP still-image capture
  • IP66 weatherproof rating
  • IK10 impact resistance
  • Audio in/out
  • Wireless connectivity

What's in the box:

  • Hikvision 3MP IR Fixed Outdoor Dome Network Camera with 4mm Lens
  • Hikvision 3 Year Limited Warranty
