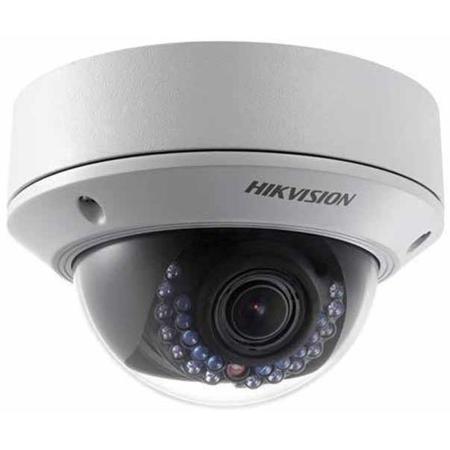

Hikvision DS-2CD2742FWD-IZS 4MP Network Dome Camera with 2.8-12mm Lens
See all Hikvision items

Hikvision DS-2CD2742FWD-IZS 4MP Outdoor Day & Night Network Dome Camera with 2.8-12mm Lens, 2688x1520, 20fps, H.264, H.264+, MJPEG, PoE

SKU: HV2CD2742FZS

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-2CD2742FWD-IZS Specifications

  • Image Sensor

    1/3" progressive scan CMOS

  • Minimum Illumination Color

    0.014 lux at ( /1.4,AGC on); B/W: 0 lux with IR

  • Shutter Speed

    1/3 s to 1/10,000 s

  • Slow Shutter

    Yes

  • Lens

    2.8 mm to 12 mm at /1.4, motorized lens

  • Angle of View

    112 to 33.8 deg.

  • Lens Mount

    Dia. 14

  • Day/Night

    IR cut filter with auto switch/schedule/triggered by alarm

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    120 dB

  • Pan/Tilt /Rotation

    Pan: 0 to 355 deg. , tilt: 0 to 75 deg. , rotation: 0 to 355 deg.

  • Video Compression

    H.264+/H.264/MJPEG

  • H.264 Type

    Main Profile

  • Video Bit Rate

    32 Kbps to 16 Mbps

  • Dual Streams

    Yes

  • Audio

    G.711/G.722.1/G.726/MP2L2, 64 Kbps (G.711)/16 Kbps
    (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)

  • Maximum Resolution

    2688 x 1520

  • Frame Rate

    20 fps (2688 x 1520), 30 fps (1920 x 1080, 1280 x 720)

  • Image Settings

    Compression, color, saturation, brightness, contrast, sharpness, rotate mode, privacy mask

  • Backlight Compensation

    Yes, zone configured

  • Region of Interest (ROI)

    Yes

  • Smart Features

    Line crossing detection, intrusion detection

  • Network Storage

    NAS (supports NFS,SMB/CIFS); ANR

  • Alarm Triggers

    Motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, storage exception

  • Protocols

    TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Security

    Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1X, basic and digest authentication, watermark, IP address filtering, log-in lockout

  • Standards

    ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

  • Communication

    1x RJ-45 10M/100M Ethernet port

  • On-Board Storage

    Built-in microSD/SDHC/SDXC slot, up to 128 GB

  • Alarm interface

    1x alarm I/O

  • Audio interface

    1x audio I/O

  • Operating Conditions

    -30 to 60 deg. C / -22 to 140 deg. F

  • Power

    12 VDC +/-10%, PoE (802.3af) UL/cUL Listed

  • Power Consumption

    Maximum 5.5 W

  • IR Range

    30m / 98.42'

  • Ingress Protection

    IP66

  • Impact Protection

    IEC60068-275Eh, 20J; EN50102, up to IK10

  • Dimensions

    5.51 x 3.94" / 14.00 x 10.01cm

  • Weight

    2.20lbs / 1.00kg

  • UPC Code

    813908023480

About Hikvision DS-2CD2742FWD-IZS

• 4 Megapixel High Resolution
• Full HD1080p Video
• Dual Video Streams
• 2.8 mm to 12 mm Motorized Lens
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction
• Smart Features
• PoE (802.3af)
• IR Range 30 Meters (approx.100 feet)
• IP66 and IK10 Protection
• Audio and Alarm Input/Output
• Edge Storage, MicroSD Slot, 128 GB

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-2CD2742FWD-IZS 4MP Outdoor Day & Night Network Dome Camera with 2.8mm Lens
  • Hikvision 3 Year Parts and Labor Warranty
