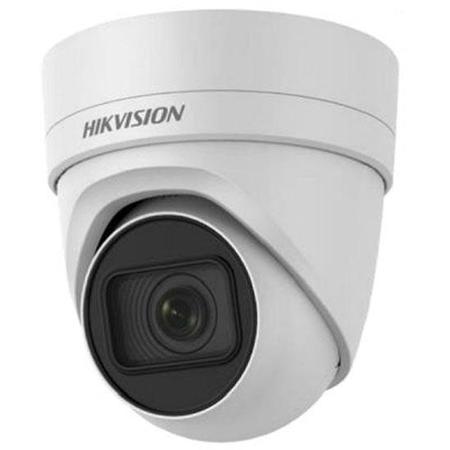

Hikvision 5MP Outdoor Day & Night WDR Network Turret Camera with 2.8-12mm Motorized Varifocal Lens, 98' IR Night Vision, 20fps, Vandal Resistance
SKU: HV2CD2H55IZS
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Hikvision Turret Camera Specifications
Camera
Camera
Jump to...Image Sensor
1/2.9" Progressive Scan CMOS
Signal System
PAL/NTSC
Min. Illumination
Color: 0.01 Lux at (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux at (F1.4, AGC ON), 0 Lux with IRShutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Support
Day & Night
IR Cut Filter
Digital Noise Reduction
3D DNR
WDR
120dB
3-Axis Adjustment
Pan: 0 deg. to 355 deg. , tilt: 0 deg. to 75 deg. , rotate: 0 deg. to 360 deg.
Lens
Jump to...Focal length
2.8 to 12 mm
Aperture
F1.4
FOV
Horizontal field of view: 88 deg. to 27 deg.
Vertical field of view: 48 deg. to 16 deg.
Diagonal field of view: 104 deg. to 32 deg.Lens Mount
Dia.: 14
IR Range
Up to 30m (98.42')
Wavelength
850nm
Compression Standard
Jump to...Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 16 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Jump to...Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection
Cross a pre-defined virtual line
Intrusion Detection
Enter and loiter in a pre-defined virtual region
Unattended Baggage
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal
Objects removed from the pre-defined region, such as the exhibits on display.
Face Detection
Support
Region of Interest
Support 1 fixed region for main stream and sub stream
Jump to...Max. Resolution
2944 x 1656
Main Stream
50Hz: 20 fps (2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x720)
60Hz: 20 fps (2944 x 1656), 30 fps (2560 x 1440, 1920 x 1080, 1280 x720)Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)Image Enhancement
BLC/3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Network
Jump to...Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and UserClient
iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Jump to...Audio
1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Alarm
1 input, 1 output (max. 12 VDC, 30 mA)
Video Output
1Vp-p composite output (75 Ohms/BNC)
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC Support
H.264 and H.265 encoding
Reset Button
Support
Audio
Jump to...Environment Noise Filtering
Support
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Jump to...Operating Conditions
-30 to 60 deg. C (-22 to 140 deg. F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC +/- 25%, PoE (802.3af)
Terminal block for DC inputPower Consumption and Current
12 VDC, 0.92A, max. 11W
PoE (802.3af, 36V to 57V), 0.35A to 0.22A, max. 12.5WProtection Level
IP67, IK10
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient ProtectionMaterial
Metal
Dimensions
Dia.: 5.35 x 5.73" (13.59 x 14.55cm)
Weight
Approx. 2.34 lbs (1.06kg)
Other
Jump to...UPC Code
842571110012
About Hikvision Turret Camera
• 1/2.9" Progressive Scan CMOS
• 2944 x 1656 resolution
• 2.8 to 12 mm focal length
• H.265, H.265+, H.264+, H.264
• 120dB Wide Dynamic Range
• BLC/3D DNR/ROI
• IP67, IK10
• 4 behavior analyses and face detection
• Smart encoding: Support low bit rate
What's in the box:
- Hikvision 5MP Outdoor Day & Night WDR Network Turret Camera with 2.8-12mm Motorized Varifocal Lens
- Hikvision 3 Year Parts and Labor Warranty
