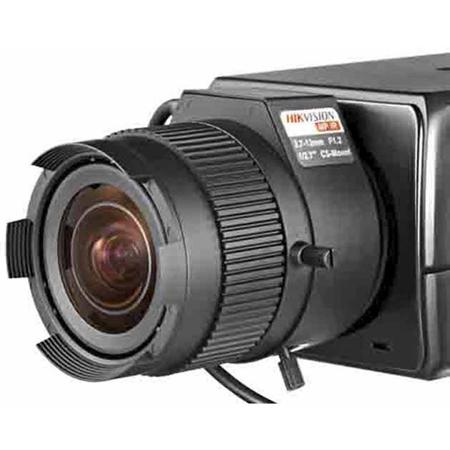

Hikvision DS-2CD6026FHWD-A 2MP Day & Night Ultra Low Light Smart IP Camera, 1920x1080, 30fps, H.264, MPEG4, MJPEG, PoE
SKU: HV2CD6026FHA
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Hikvision DS-2CD6026FHWD-A Specifications
Image Sensor
1/1.8" progressive scan CMOS
Minimum Illumination
Color: 0.001 lux at (½/1.2, AGC on), B/W: 0.0001 lux at (½/1.2, AGC on), Color: 0.0016 at ½/1.5, B/W: 0.00016 at ½/1.5
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Supported
Lens Mount
C/CS mount
Auto Iris
DC drive
Day & Night
IR cut filter
WDR
120 dB
Focus Supports
ABF
Video Compression
H.264/MPEG4/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Bit Rate
32 Kbps to 16 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)
Maximum Resolution
1920 x 1080
Frame Rate
60 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Third Stream
Independent with Main Stream and Sub Stream, up to 30 fps (1920 x 1080)
Image Enhancement
BLC/3D DNR/ROI/Defog/EIS
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or Web browser
Regional Cropping
Supported
Day & Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 x 128 24-bit bmp format
Network Storage
NAS (supports NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, Tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DN, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
User authentication, watermark, IP address filtering, anonymous access
Standard
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Audio
1x -ch 3.5 mm audio in (mic in/line in)/out interface, 1x build-in microphone
Communication Interface
1x RJ-45 1x 0M/1x 00M Ethernet port, 1x RS-485 interface and 1x RS-232 interface
Alarm
1x input, 1x output (up to 24 VDC 1x A or 1x 0 VAC 500 mA )
Video Output
1x Vp-p composite output (75 Ohms/BNC)
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
Environment Noise Filtering
Supported
Audio I/O
Supports dual audio track, stereo
Audio Sampling Rate
16 kHz/32 kHz/44.1 kHz/48 kHz
Behavior Analysis
Line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal
Line Crossing
Detection Cross a pre-defined virtual line
Intrusion Detection
Enter and loiter in a pre-defined virtual region
Region Entrance
Enter a pre-defined virtual region from the outside place
Region Exiting
Exit from a pre-defined virtual region
Unattended Baggage
Objects left in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal
Objects removed from the pre-defined region, such as the exhibits on display.
Exception
Detections Scene change detection, sudden audio increase/decrease detection, audio loss detection, defocus detection
Statistics
Object counting (entrance and exit object numbers are counted and shown on screen in real time)
Operating Conditions
-30 to 60 deg. C / -22 to 140 deg. F, Humidity 95% or less (non-condensing)
Power Supply
24 VAC +/-10%, 12 VDC +/-10%, PoE (802.3af)
Power Consumption
Maximum 6 W (maximum 9 W with IR cut filter on)
Dimensions
69.8 x 58 x 145mm / 2.75 x 2.28 x 5.71"
Weight
830g / 29.28oz
UPC Code
813908024265
About Hikvision DS-2CD6026FHWD-A
• Full HD1080p Video
• 1/1.8" Progressive Scan CMOS
• Up to 60 fps Frame Rate
• Ultra-Low Light
• Slow Shutter
• 120 dB WDR
• 3D DNR
• Auto Back Focus
• Audio/Alarm I/O
• Supports 128 GB On-Board Storage
• 12 VDC/24 VAC/PoE
What's in the box:
- Hikvision DS-2CD6026FHWD-A 2MP Day & Night Ultra Low Light Smart IP Camera
- Hikvision 3 Year Parts and Labor Warranty
