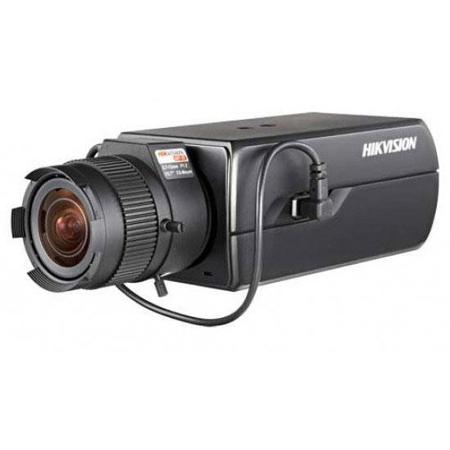

Hikvision DS-2CD6026FHWD-A7 2MP Ultra Low-light Box Camera with 7-33mm Lens
See all Hikvision items

Hikvision DS-2CD6026FHWD-A7 2MP Day & Night Ultra Low-light Network Box Camera with Auto Back Focus 7-33mm Lens, 1920x1080, 60fps at 60Hz, H.264, MPEG4, MJPEG, PoE

SKU: HV2CD6026FHW

This item is no longer available.

Recommended Alternatives

Hikvision DS-2CD2T45FWD-I5: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP Outdoor IR Fixed Bullet Camera with 2.8mm Lens
$348.00$278.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-2CD6026FHWD-A Specifications

  • Sensor

    1/2" Progressive scan CMOS

  • Minimum Illumination

    Color: 0.002 lux at (f/1.2, AGC On)
    B/W: 0.0002 lux at (f/1.2, AGC On)

  • Shutter Speed

    1 to 1/100,000 sec

  • Slow Shutter

    Supported

  • Lens Mount

    C/CS mount

  • Lens

    7 to 33 mm

  • Auto-Iris Lens Support

    DC drive

  • Day & Night

    IR cut filter with auto switch

  • Wide Dynamic Range

    120 dB

  • Digital Noise Reduction

    3D

  • Focus

    Auto Back Focus

  • Video

    H.264 / MPEG4 / MJPEG

  • H.264 Profile

    Baseline / Main / High

  • Video Bit Rate

    32Kbps-16Mbps

  • Audio

    G.711 / G.726 / MP2L2

  • Audio Bit Rate

    64 kb/s (G.711) / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2)

  • Maximum Resolution

    1920 x 1080

  • Frame Rate

    WDR Off:
    50 Hz: 50 fps (1920 x 1080), 50 fps (1280 x 960), 50 fps (1280 x 720)
    60 Hz: 60 fps (1920 x 1080), 60 fps (1280 x 960), 60 fps (1280 x 720)

    WDR On:
    50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960), 25 fps (1280 x 720)
    60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720)

  • Streaming

    Third Stream: Independent with main stream and sub stream Up to 50 Hz: 25 fps at 1920 x 1080; 60 Hz: 30 fps at 1920 x 1080

  • Image Enhancement

    BLC / EIS / Defog

  • Image Settings

    Saturation, brightness, contrast adjustable by client software or web browser

  • Day/Night Switch

    Auto / Schedule / Triggered by alarm in

  • ROI

    Supports 4 different areas configuration in all the three streams with adjustable 6 levels Automatically dynamic tracking with face detection can be configured

  • Overlay

    Logo picture can be overlaid on video with 128 x 128 24-bit bmp format

  • Storage

    NAS

  • Security

    User authentication, watermark, IP address filtering, anonymous access

  • Standard

    ONVIF, PSIA, CGI, ISAPI

  • Audio Input

    1-channel 3.5 mm audio interface, Mic in / Line in
    1 x built-in Microphone

  • Audio Output

    1-channel 3.5 mm audio interface

  • Communication Interface

    1 x RJ45 10M/100M Ethernet port, 1 x RS-485 interface and1 x RS-232 interface

  • Alarm

    1 x input, 1 x output

  • Video Output

    1 x Vpp composite output (75 Ohms/BNC)

  • On-board Storage

    Built-in microSD / SDXC slot; up to 64 GB

  • Reset Button

    Yes

  • Operating Conditions

    -30 to 60 deg. C / -22 to 140 deg. F
    Humidity 95% or less (non-condensing)

  • Power Supply

    24 VAC +/- 10%, 12 VDC +/- 10%, PoE (802.3af)

  • Maximum Power Consumption

    6 W
    9 W with IR cut filter on

  • Dimensions

    2.68 x 2.56 x 5.70" / 6.81 x 6.50 x 14.48cm

  • Weight

    1.83lbs / 0.83kg

  • UPC Code

    813908024357

About Hikvision DS-2CD6026FHWD-A

The Darkfighter series ultra-low light Smart cameras are able to capture high quality colored images in dim light environment. DS-2CD6026FHWD-(A) offers Full HD resolution with up to 60fps high frame rate, 120dB WDR, Auto Back Focus, PoE, Defog, 3D DNR and complete Smart Feature-set to meet a wide variety of applications.

• 1/1.8" Progressive Scan CMOS
• Full HD1080p video
• Up to 60fps frame rate
• Ultra-low light
• Slow shutter
• 120dB WDR
• 3D DNR
• -A: Auto Back Focus
• Audio/Alarm IO
• Support 128G on-board storage
• DC12V/AC24V/PoE

DS-2CD6026FHWD-(A) is Hikvision Smart IPC and features complete Smart functions including:

Smart Detection
Intrusion Detection, Line Crossing Detection, Object Left/Removal, Area Entering/Leaving, Scene Change Detection, Audio Surge Detection, Audio Loss Detection, Defocus Detection, Face Detection, Object Counting, etc.

Smart Codec
Smart Recording with dual-VCA, Low Bitrate, Low Latency, ROI enhancement, Multi-stream, Rotate Mode, Edge Recording, etc.

Smart Image Control
Smart Auto Focus with ABF

Smart
• 6 behavior analysis, 4 exception detections, 1 recognition, 1 statistic function.
• Smart recording: Support edge recording and dual-VCA.
• Smart encoding: Support low bit rate; low latency; ROI enhance encoding
• Smart lens options: ABF .

• HD 1920 x 1080@25/30fps
• Support rotate mode, suitable for environment as corridor.
• Support regional cropping, details can be seen with low bandwidth.
• Code smoothness setting for different requirements of image quality and fluency.
• Support H.264/MJPEG/MPEG4 video compression, multi-level video quality configuration; support

Basic/Main/High Profile H.264 encoding complexity
• Multiple OSD color: Black & white self-adaptive; Custom
• 120dB WDR is supportable for bacLight environment.
• Support defog, BLC, EIS.

System
• Support ONVIF (profile S/profile G), CGI, PSIA, ISAPI protocol.
• Support three streams and Support 20 channels live view at the same time.
• Anti-surge, anti-static protection level.

Interface
• Support standard 128G Micro SD/SDHC/SDXC card storage.
• Support 10M/100M Ethernet Port.
• Support Audio I/O, support dual channel stereo audio.
• Support Alarm I/O
• Support CVBS analog output (4CIF resolution)

Security
• Support three-level user authentication management, user and password authorization, IP address filtering and anonymous access.
• Support security certificate as HTTPS, SSH; support creating certificate.
• Basic and digest authentication is supportable in IE configuration
• Lock user IP for many times error login
