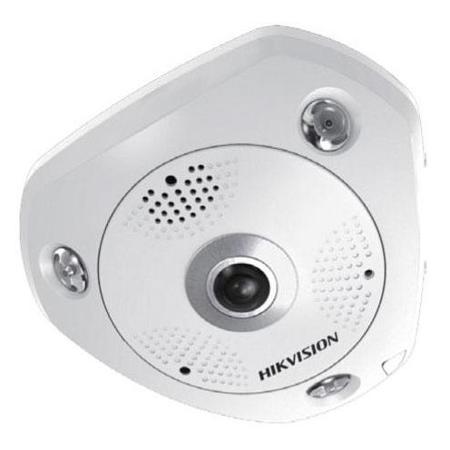

Hikvision 6MP Vandal-Proof Outdoor Fisheye Panoramic 180/360 Degree Network Camera with 1.27mm Lens, Day/Night, IR, PoE/12VDC

SKU: HV2CD6362FIV

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hikvision Outdoor Panoramic Camera Specifications

  • Image Sensor

    1/1.8" Progressive Scan CMOS

  • Min. Illumination

    0.05 Lux at (F1.2,AGC ON),
    0.3Lux at (F2.8,AGC ON ),
    0 lux with IR

  • Shutter time

    1/25(1/30)s to 1/100,000s

  • Lens

    1.27mm, F2.8
    Angle of view: 360 Degree

  • Day& Night

    IR cut filter with auto switch

  • Wide Dynamic Range

    Digital WDR

  • Digital noise reduction

    3D DNR

  • Video Compression

    H.264/MJPEG

  • Video bit rate

    32Kbps - 16Mbps

  • Audio Compression

    G.711/G.726/MP2L2

  • Dual Stream

    Yes

  • Max. Image Resolution

    3072 x 2048

  • Mode 1 Frame Rate

    1 x Fisheye + 1 x Panorama + 3*PTZ

  • Mode 2 Frame Rate

    1 x Fisheye or 4 x PTZ

  • Mode 3 Frame Rate

    1 x Fisheye(main stream) + 1 x Fisheye(sub stream) + 3 x PTZ

  • Mode 4 Frame Rate

    1 x Panorama(main stream) + 1 Panorama(sub stream)

  • Image Settings

    Saturation, brightness, contrast adjustable through client software or web browser

  • BLC

    Yes, zone configurable

  • Network Storage

    NAS

  • Alarm Trigger

    Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Security

    User Authentication, Watermark, IP address filtering, anonymous access

  • System Compatibility

    ONVIF, PSIA, CGI, ISAPI

  • Audio

    Internal Microphone and Speaker

  • Communication Interface

    1 RJ45 10M / 100M Ethernet interface

  • On-board storage

    Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

  • Operating Conditions

    Minus 30 Degree C - 60 Degree C (-22 Degree F - 140 Degree F)
    Humidity 95% or less (non-condensing)

  • Power Supply

    12 VDC 10%, PoE (802.3af)

  • Power Consumption

    Max. 12 W

  • Weather Proof

    IP66

  • IR Range

    15 meters

  • Dimensions

    6.46 x 6.02 x 1.72" (164 x 152.8 x 43.8mm)

  • Weight

    3lbs (1400g)

  • UPC Code

    816783017810

About Hikvision Outdoor Panoramic Camera

Hikvision's brand reputation is built on producing quality cameras and accessories, and this outdoor panoramic surveillance unit is no exception. With a whole host of smart features and helpful functions, it has your all-season monitoring needs covered.

The imaging abilities of this camera start with the progressive-scan CMOS sensor, which is aided by a fisheye lens and digital noise reduction to provide a clear picture at all times. For night vision, a smart-IR configuration allows the camera to see 15 meters or more in total darkness. Some other smart functions include multi-stream support, backlight compensation, auto gain control, and security features including motion detection, tampering alarms, user authentication, and anonymous access.

The camera's housing allows it to be installed outdoors, and its weatherproofing is rated to IP66. This means inclement weather is no problem; the unit isn't equipped with its own heater for defogging or defrosting, but it can operate in temperatures from -22F to +140F and in humidity levels up to 95%, making it a great solution for keeping an eye on what's important to you--all day and all night, the whole year through.


• 1/1.8" progressive scan CMOS
• 6 mega-pixel image sensor
• Up to 3072 x 2048real-time streaming
• 360 Degree viewing angle
• Multiple viewing modes
• Multiple ePTZ streams with preset and patrol functions
• Ceiling, Wall or Table mount modes
• Up to 15m IR range
• Bulit-in microphone and speaker
• Audio/Alarm I/O / RS485(-S model)
• IP66(-V model)
• IK10 vandal proof(-V model)

Key Features

  • HD video recording
  • 6MP still-image capture
  • Progressive-scan CMOS sensor
  • 15-meter IR night vision range
  • IK10 impact resistance rating
  • IP66 weatherproof rating

What's in the box:

  • Hikvision 6MP Vandal-Proof Outdoor Fisheye Panoramic 180/360 Degree Network Camera with 1.27mm Lens
  • Hikvision 3 Year Limited Warranty
